CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000920000 - 000999999) (2011)

48" Navigator Cutting Deck

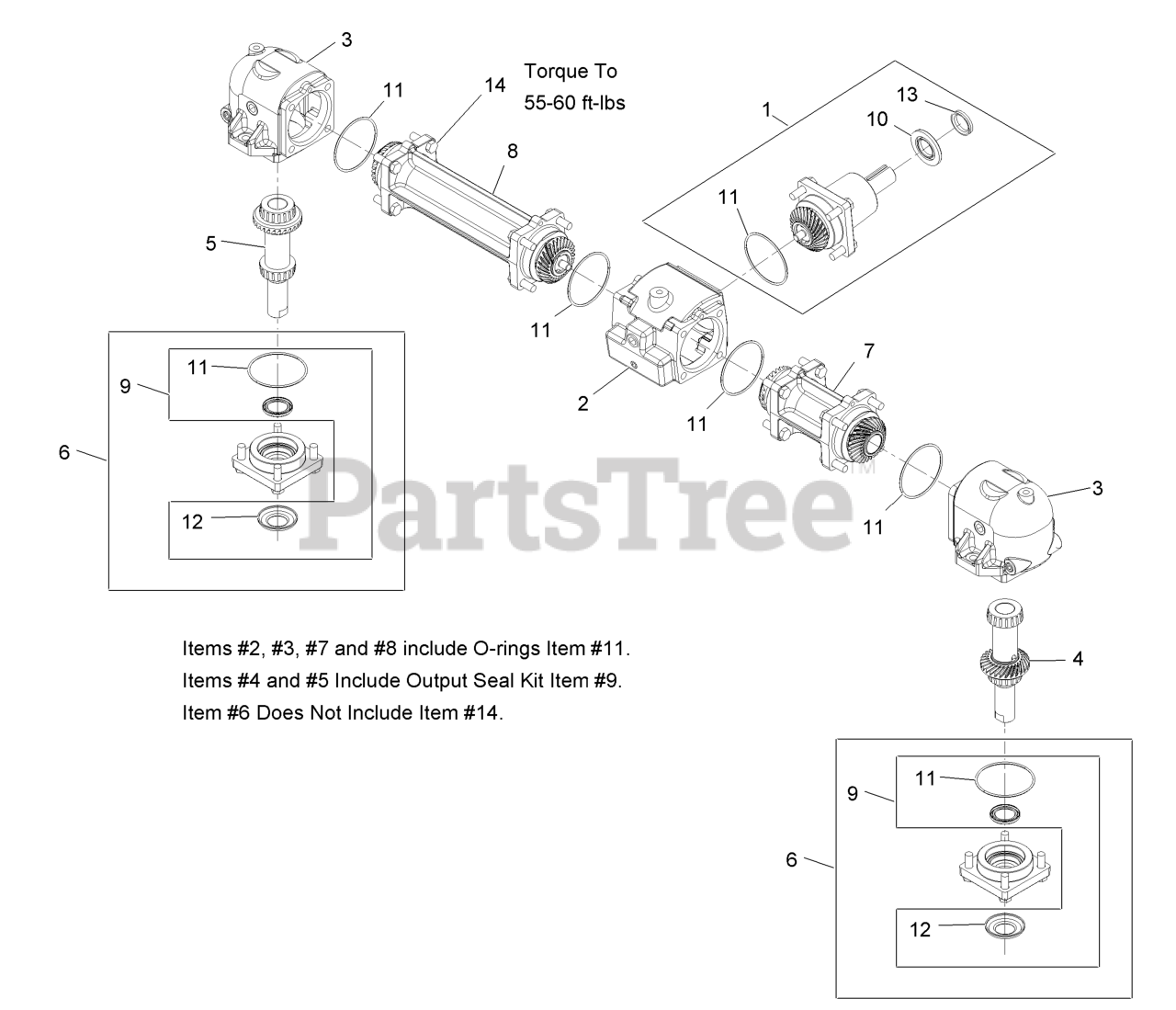

CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000920000 - 000999999) (2011) > Parts Diagrams (4) > Gearbox Assembly - 116-3387

  • Title
109-0188

1

Asm, Input Pinion 42"

Part# 109-0188

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $387.79

109-0189

1

Asm, Input Pinion 48"

Part# 109-0189

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $302.69

109-0190

2

Center Housing W/Plugs

Part# 109-0190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $262.03

109-0191

3

End Housing W/Plugs & Race

Part# 109-0191

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $210.31

109-0193

4

Output Shaft, Gear & Brgs (48" Lh)

Part# 109-0193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $266.23

109-0195

5

Output Shaft, Gear & Brgs (48" Rh)

Part# 109-0195

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $339.16

109-0196

6

Output Cap W/Race

Part# 109-0196

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $119.11

109-0198

7

Asm, Connector Tube 48" Short

Part# 109-0198

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $478.97

109-0200

8

Asm, Connector Tube 48" Long

Part# 109-0200

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $531.24

109-0201

9

Kit, Output Seal

Part# 109-0201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.87

109-0202

10

Seal, Input

Part# 109-0202

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.95

109-0203

11

O-Ring

Part# 109-0203

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.15

109-0204

12

Washer, Cupped

Part# 109-0204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.47

109-0205

13

V-Ring

Part# 109-0205

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.65

93-3987

14

Bolt - Blade

Part# 93-3987 (Superseded to AU328-620)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35
