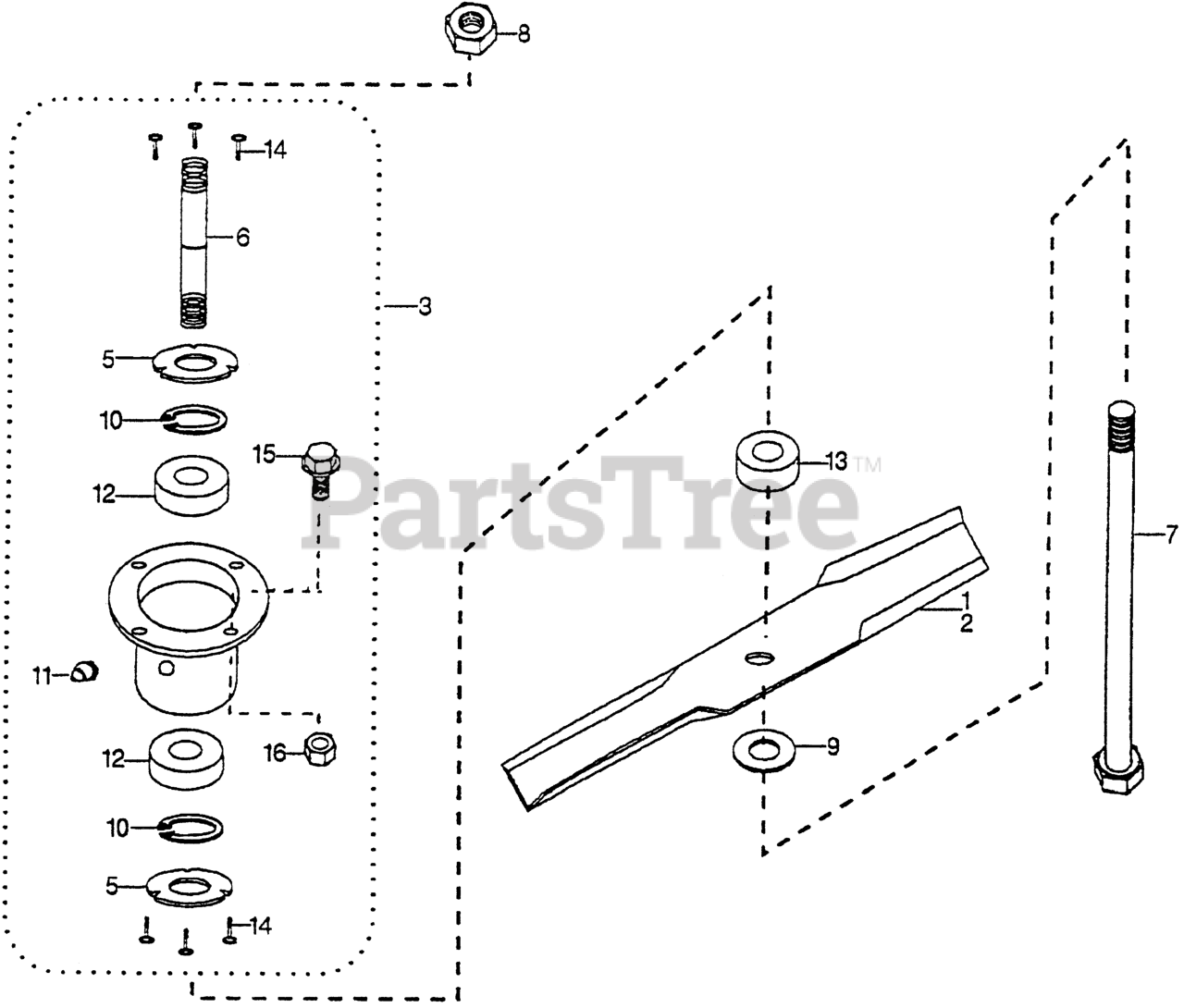

CD7036 CCD2 36 (CCD2) - Honda 36" Mower Deck, Made in USA (SN: CCD2-1000001 - CCD2-2000000) BLADE SPINDLE (FOR 36" TO 1000877) (FOR 48" TO 1001265) Parts Diagram

36" Mower Deck, Made in USA

BLADE SPINDLE (FOR 36" TO 1000877) (FOR 48" TO 1001265) Parts Diagram

  • Title

1

Honda 72511-VE4-003

SEE PART DETAILS - SUP; BLADE, HIGH LIFT (18")
(Superseded to 72511-VG5-L00)

$35.99

$

Usually ships in 3-6 days

0

1

Honda 72511-VG5-L00

SEE PART DETAILS - PRI; BLADE, HIGH LIFT (18")

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

3

Honda 06760-VE4-L00

SEE PART DETAILS - PRI; HOUSING ASSY., BLADE BEARING

$912.99

$

Usually ships in 3-6 days

0

5

Honda 72713-VE4-013

SEE PART DETAILS - PRI; CAP, BEARING HOUSING

Note: Use up to Frame SN 1000877.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 76212-VE4-003

SHAFT, BLADE

Note: Use up to Frame SN 1000877.

$42.99

$

In Stock, only 1 left!

0

7

Honda 90102-VE4-003

BOLT, BLADE

Note: Use up to Frame SN 1000877.

$

$

Not available

8

Honda 90301-VE4-003

JAM NUT (5/8"-18)

Note: Use up to Frame SN 1000877.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90510-VE4-003

WASHER, BLADE

Note: Use up to Frame SN 1000877.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90654-VE4-003

RING, SNAP

Note: Use up to Frame SN 1000877.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90952-VE4-003

NIPPLE, GREASE

Note: Use up to Frame SN 1000877.

$

$

Not available

12

Honda 91053-VE4-003

BEARING, BLADE SHAFT

Note: Use up to Frame SN 1000877.

$32.99

$

Usually ships in 3-6 days

0

13

Honda 91556-VE4-000

SEE PART DETAILS - PRI; COLLAR, BLADE (5/8")

Note: Use up to Frame SN 1000877.

$15.99

$

Usually ships in 3-6 days

0
