CD7036 CCD2 36 (CCD2) - Honda 36" Mower Deck, Made in USA (SN: CCD2-1000001 - CCD2-2000000) MOWER DECK DRIVE (-1000677) Parts Diagram

36" Mower Deck, Made in USA

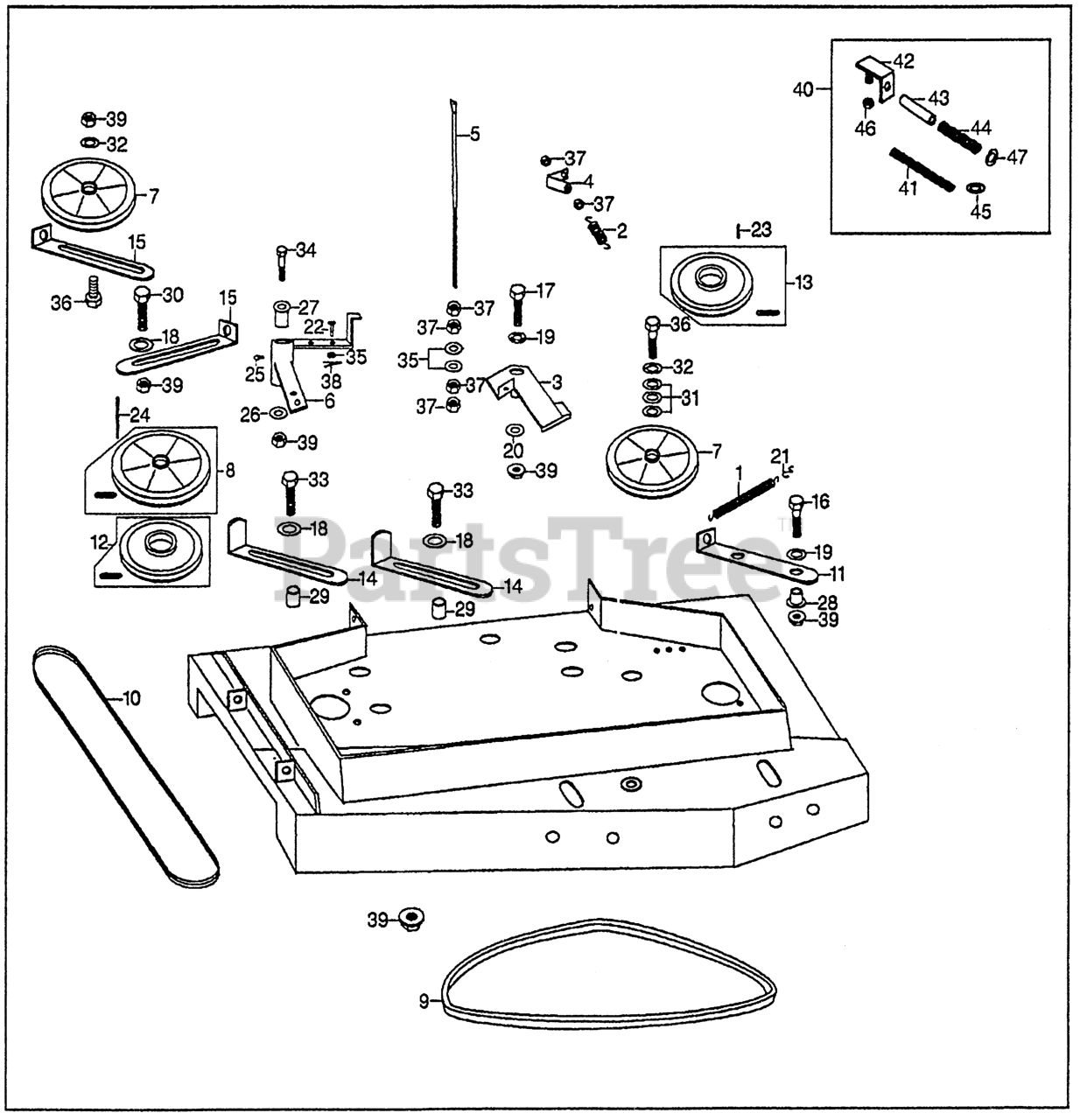

MOWER DECK DRIVE (-1000677) Parts Diagram

  • Title

1

Honda 22567-VE4-003

SEE PART DETAILS - SUP; SPRING, TENSIONER
(Superseded to 22567-VE4-013)

Note: Use up to Frame SN 1000677.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 24689-VE4-000

SEE PART DETAILS - PRI; SPRING, PUMP ARM

Note: Use up to Frame SN 1000677.

$126.99

$

Usually ships in 3-6 days

0

3

Honda 75100-VE4-003

BRAKE ASSY.

Note: Use up to Frame SN 1000677.

$54.99

$

Usually ships in 3-6 days

0

4

Honda 75137-VE4-003

BRACKET, SPRING

Note: Use up to Frame SN 1000677.

$6.99

$

Usually ships in 3-6 days

0

5

Honda 75196-VE4-003

ROD C, P.T.O. (36")

Note: Use up to Frame SN 1000677.

$14.99

$

In Stock, only 1 left!

0

6

Honda 76120-VE4-305

ARM, TENSIONER

Note: Use up to Frame SN 1000677.

$84.99

$

Usually ships in 3-6 days

0

7

Honda 76131-VE4-003

PULLEY A, TENSION

Note: Use up to Frame SN 1000677.

$37.99

$

Usually ships in 3-6 days

0

8

Honda 04602-VE4-000

SEE PART DETAILS - PRI; KIT, DECK PULLEY

Note: Use up to Frame SN 1000677.

$121.99

$

Usually ships in 3-6 days

0

9

Honda 76181-VE4-003

V-BELT, BLADE

Note: Use up to Frame SN 1000677.

$38.99

$

Usually ships in 3-6 days

0

9

Honda 76182-VE4-003

V-BELT, DECK Use up to Frame SN 1000677.

Note: (Optional).Use up to Frame SN 1000677.

$49.99

$

Usually ships in 3-6 days

0

10

Honda 76182-VE4-003

V-BELT, DECK Use up to Frame SN 1000677.

Note: Use up to Frame SN 1000677.

$49.99

$

Usually ships in 3-6 days

0

11

Honda 76218-VE4-003

ARM, IDLER

Note: Use up to Frame SN 1000677.

$24.99

$

Usually ships in 3-6 days

0

12

Honda 04604-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT A

Note: Use up to Frame SN 1000677.

$131.99

$

Usually ships in 3-6 days

0

13

Honda 04605-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT B

Note: Use up to Frame SN 1000677.

$185.99

$

Usually ships in 3-6 days

0

14

Honda 76237-VE4-003

GUIDE A, BELT

Note: Use up to Frame SN 1000677.

$13.99

$

Usually ships in 3-6 days

0

15

Honda 76238-VE4-003

GUIDE B, BELT

Note: Use up to Frame SN 1000677.

$10.99

$

Usually ships in 3-6 days

0

16

Honda 90110-VE4-003

BOLT A, SHOULDER

Note: Use up to Frame SN 1000677.

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90111-VE4-003

BOLT B, SHOULDER

Note: Use up to Frame SN 1000677.

$

$

Currently unavailable

18

Honda 90501-VE4-003

WASHER

Note: Use up to Frame SN 1000677.

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90505-VE4-003

WASHER, BELLEVILLE (1/2") Use up to Frame SN 1000677.

Note: Use up to Frame SN 1000677.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90507-VE4-003

WASHER (5/16")

Note: Use up to Frame SN 1000677.

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90651-VE4-003

CLIP, SPRING

Note: Use up to Frame SN 1000677.

$2.49

$

In Stock, only 4 left!

0

22

Honda 90752-VE4-003

PIN, PIVOT

Note: Use up to Frame SN 1000677.

$8.99

$

Usually ships in 3-6 days

0

23

Honda 90754-VE4-003

KEY A, DRIVEN PULLEY

Note: Use up to Frame SN 1000677.

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90766-VE4-003

KEY, SQUARE (1/4"X1/4"X1")

Note: Use up to Frame SN 1000677.

$16.99

$

Usually ships in 3-6 days

0

25

Honda 90951-VE4-003

NIPPLE, GREASE

Note: Use up to Frame SN 1000677.

$2.49

$

Usually ships in 3-6 days

0

26

Honda 91558-VG5-000

SEE PART DETAILS - PRI; BUSHING (1")

Note: Use up to Frame SN 1000677.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 91559-VE4-003

BUSHING, PIVOT

Note: Use up to Frame SN 1000677.

$20.99

$

Usually ships in 3-6 days

0

28

Honda 91560-VE4-003

BUSHING, SNAP

Note: Use up to Frame SN 1000677.

$4.99

$

Usually ships in 3-6 days

0

29

Honda 91561-VE4-003

COLLAR B, SPACER

Note: Use up to Frame SN 1000677.

$30.99

$

Usually ships in 3-6 days

0

40

Honda 06432-VE4-000

BRAKE KIT, BLADE Use up to Frame SN 1000677.

Note: (Optional).Use up to Frame SN 1000677.

$26.99

$

Usually ships in 3-6 days

0

41

Honda 24568-VE4-003

SPRING, NEUTRAL Use up to Frame SN 1000677.

Note: (Optional).Use up to Frame SN 1000677.

$3.49

$

Usually ships in 3-6 days

0

44

Honda 76122-VE4-003

SPRING, TENSIONER ARM Use up to Frame SN 1000677.

Note: (Optional).Use up to Frame SN 1000677.

$16.99

$

Usually ships in 3-6 days

0

45

Honda 90505-VE4-003

WASHER, BELLEVILLE (1/2") Use up to Frame SN 1000677.

Note: (Optional).Use up to Frame SN 1000677.

$2.49

$

Usually ships in 3-6 days

0
