CD7048 CCD1 48 (CCD1) - Honda 48" Mower Deck, Made in USA (SN: CCD1-1000001 - CCD1-2000000) MOWER DECK DRIVE (-1000965) Parts Diagram

48" Mower Deck, Made in USA

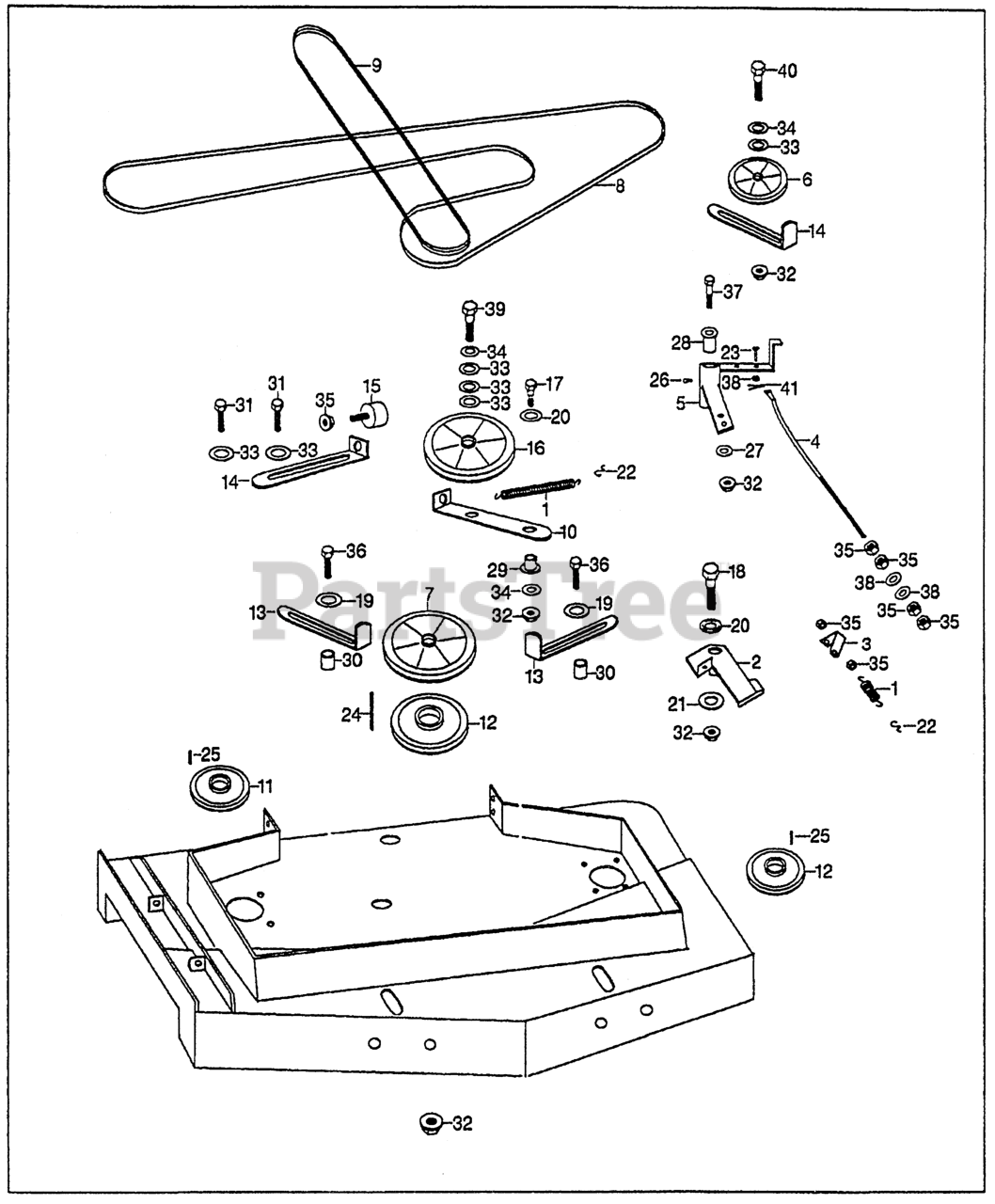

MOWER DECK DRIVE (-1000965) Parts Diagram

  • Title

1

Honda 22567-VE4-003

SEE PART DETAILS - SUP; SPRING, TENSIONER
(Superseded to 22567-VE4-013)

Note: Use up to Frame SN 1000965.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 75100-VE4-003

BRAKE ASSY.

Note: Use up to Frame SN 1000965.

$54.99

$

Usually ships in 3-6 days

0

3

Honda 75137-VE4-003

BRACKET, SPRING

Note: Use up to Frame SN 1000965.

$6.99

$

Usually ships in 3-6 days

0

4

Honda 75196-VE4-701

ROD C, P.T.O. (48")

Note: Use up to Frame SN 1000965.

$

$

Not available

5

Honda 76120-VE4-306

ARM, TENSIONER

Note: Use up to Frame SN 1000965.

$90.99

$

Usually ships in 3-6 days

0

6

Honda 76131-VE4-003

PULLEY A, TENSION

Note: Use up to Frame SN 1000965.

$37.99

$

Usually ships in 3-6 days

0

7

Honda 04602-VE4-000

SEE PART DETAILS - PRI; KIT, DECK PULLEY

Note: Use up to Frame SN 1000965.

$121.99

$

Usually ships in 3-6 days

0

8

Honda 76181-VE4-701

V-BELT, BLADE

Note: Use up to Frame SN 1000965.

$100.99

$

Usually ships in 3-6 days

0

9

Honda 76182-VE4-701

V-BELT, DECK

Note: Use up to Frame SN 1000965.

$50.99

$

Usually ships in 3-6 days

0

10

Honda 76218-VE4-003

ARM, IDLER

Note: Use up to Frame SN 1000965.

$24.99

$

Usually ships in 3-6 days

0

11

Honda 04604-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT A

Note: Use up to Frame SN 1000965.

$131.99

$

Usually ships in 3-6 days

0

12

Honda 04605-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT B

Note: Use up to Frame SN 1000965.

$185.99

$

Usually ships in 3-6 days

0

13

Honda 76237-VE4-003

GUIDE A, BELT

Note: Use up to Frame SN 1000965.

$13.99

$

Usually ships in 3-6 days

0

14

Honda 76238-VE4-003

GUIDE B, BELT

Note: Use up to Frame SN 1000965.

$10.99

$

Usually ships in 3-6 days

0

15

Honda 76239-VE4-701

BUMPER, BLADE (NOT AVAILABLE)

Note: Use up to Frame SN 1000965.

$

$

Currently unavailable

16

Honda 76246-VE4-701

PULLEY, TENSION

Note: Use up to Frame SN 1000965.

$29.99

$

Usually ships in 3-6 days

0

17

Honda 90110-VE4-003

BOLT A, SHOULDER

Note: Use up to Frame SN 1000965.

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90111-VE4-003

BOLT B, SHOULDER

Note: Use up to Frame SN 1000965.

$

$

Currently unavailable

19

Honda 90501-VE4-003

WASHER

Note: Use up to Frame SN 1000965.

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90505-VE4-003

WASHER, BELLEVILLE (1/2") Use up to Frame SN 1000677.

Note: Use up to Frame SN 1000965.

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90507-VE4-003

WASHER (5/16")

Note: Use up to Frame SN 1000965.

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90651-VE4-003

CLIP, SPRING

Note: Use up to Frame SN 1000965.

$2.49

$

In Stock, only 4 left!

0

23

Honda 90752-VE4-003

PIN, PIVOT

Note: Use up to Frame SN 1000965.

$8.99

$

Usually ships in 3-6 days

0

24

Honda 90754-VE4-003

KEY A, DRIVEN PULLEY

Note: Use up to Frame SN 1000965.

$6.49

$

Usually ships in 3-6 days

0

25

Honda 90766-VE4-003

KEY, SQUARE (1/4"X1/4"X1")

Note: Use up to Frame SN 1000965.

$16.99

$

Usually ships in 3-6 days

0

26

Honda 90951-VE4-003

NIPPLE, GREASE

Note: Use up to Frame SN 1000965.

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91558-VG5-000

SEE PART DETAILS - PRI; BUSHING (1")

Note: Use up to Frame SN 1000965.

$1.99

$

Usually ships in 3-6 days

0

28

Honda 91559-VE4-003

BUSHING, PIVOT

Note: Use up to Frame SN 1000965.

$20.99

$

Usually ships in 3-6 days

0

29

Honda 91560-VE4-003

BUSHING, SNAP

Note: Use up to Frame SN 1000965.

$4.99

$

Usually ships in 3-6 days

0

30

Honda 91561-VE4-003

COLLAR B, SPACER

Note: Use up to Frame SN 1000965.

$30.99

$

Usually ships in 3-6 days

0
