CEORA 546 EPOS - Husqvarna Automower Robotic Lawn Mower with EPOS Guidance CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower with EPOS Guidance

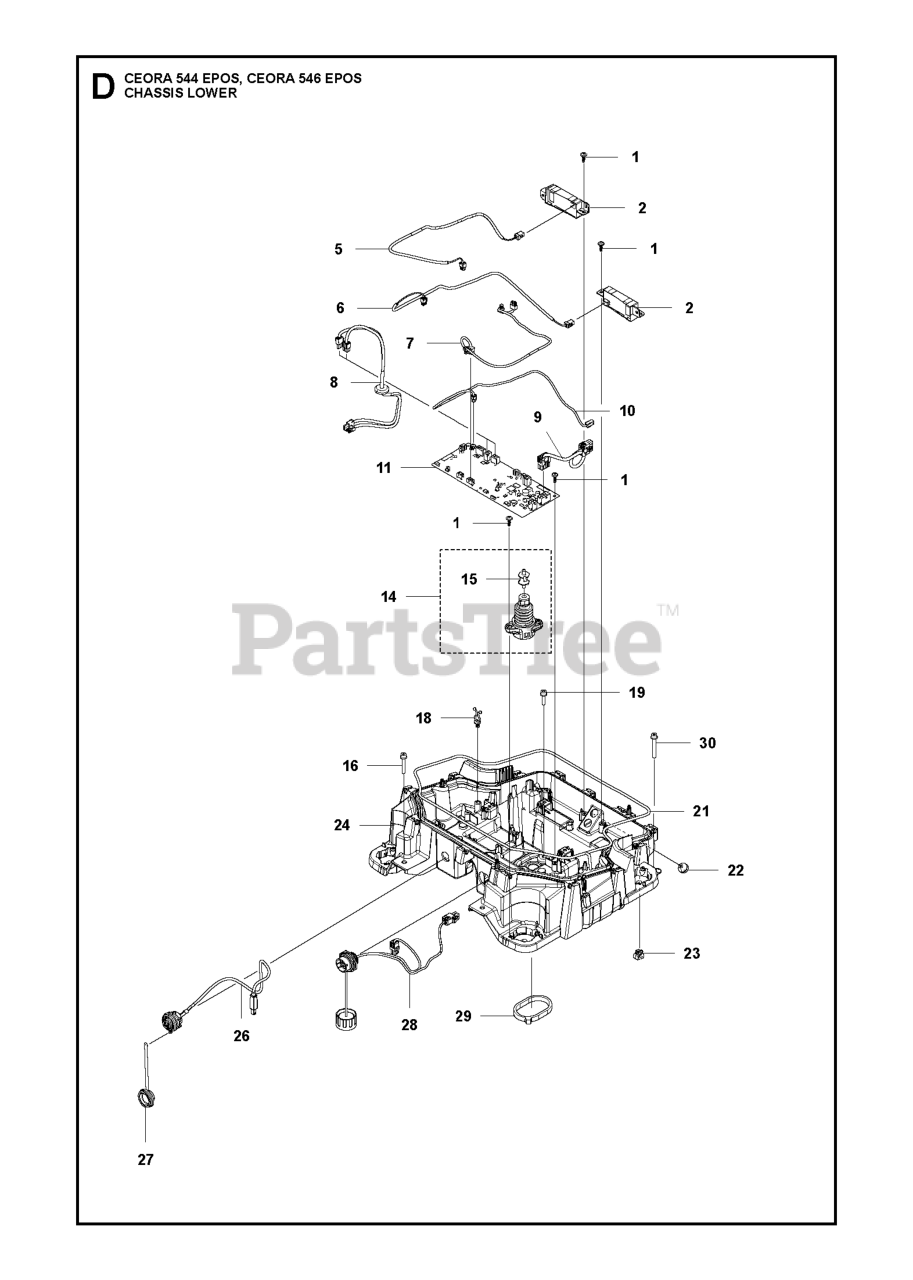

CHASSIS LOWER Parts Diagram

  • Title

11

Husqvarna 597562201

PRINTED CIRCUIT ASSY PCBA APPL

Note: Application circuit board

$598.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 597276201

WIRING ASSY APPLICATION BOARD

Note: Wiring assy application board to HMI PCBA

$59.99

$

Usually ships in 3-10 days

0

22

Husqvarna 584897501

GROMMET M16

Note: Grommet

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 597950401

CHASSIS LOWER - DRIVE UNIT

Note: Chassis lower

$71.99

$

Usually ships in 3-10 days

0

9

Husqvarna 597276401

WIRING ASSY CHASSI TO APP BOAR

Note: FROM S/N 222406529, except S/N 222704691, 222704692, Wiring assy chassis to app board & battery

$77.99

$

Usually ships in 3-10 days

0

6

Husqvarna 595311604

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic & loop sensor

$65.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

Note: Sealing strip

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 597276002

WIRING ASSY APPLICATION BOARD
(Superseded to 537485201)

Note: FROM S/N 222301671, and S/N 222103214-222103229, Charging cable

$335.99

$

Usually ships in 3-10 days

0

15

Husqvarna 598483301

DAMPER RUBBER A19.5 H19 M6X11.

Note: Damper

$39.99

$

Usually ships in 3-10 days

0

10

Husqvarna 597277401

WIRING ASSY EXTENSION LED LIG

Note: Wiring assy led light rear

$33.99

$

Usually ships in 3-10 days

0

2

Husqvarna 599474901

HOUSING ASSY HOUSING ASSY LOOP

Note: Loop sensor circuit board

$275.99

$

Usually ships in 3-10 days

0

30

Husqvarna 529791402

SCREW ISO 10644 M6X45-10.9-S1

Note: Screw

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 598004501

INSERT SCREW BLOCK

Note: Insert

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 598570801

SCREW

Note: Screw

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 597276501

WIRING ASSY APPLICATIONBOARD -

Note: Wiring assy application board motor control board

$77.99

$

Usually ships in 3-10 days

0

29

Husqvarna 599433601

SEALING CHASSIS LOWER - MOTOR

Note: Sealing

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 595311604

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic & loop sensor

$65.99

$

Usually ships in 3-10 days

0

26

Husqvarna 599671701

WIRING ASSY

Note: Service outlet plug / USB Service outlet plug

$101.99

$

Usually ships in 3-10 days

0

9

Husqvarna 536878601

NEEDS DESCRIPTION

Note: UP TO S/N 222406528, and S/N 222704691, 222704692, Wiring assy chassis to app board & battery

$

$

Currently unavailable

16

Husqvarna 529791401

SCREW ISO 10644 M6X30-10.9-S1

Note: Screw

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 599671801

CAP SEALING CAP FOR FRONT PANE

Note: Cap sealing for USB

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 537485201

NEEDS DESCRIPTION

Note: UP TO S/N 222301670 except S/N 222103214-222103229, Charging chain kit

$335.99

$

Usually ships in 3-10 days

0

18

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder twist lock

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 598446501

JOYSTICK ASSY FOR RUBBER DAMPE

Note: Joystick assy

$83.99

$

Usually ships in 3-10 days

0
