CEORA - Husqvarna Automower Robotic Lawn Mower COVER, ELECTRICAL SYSTEM Parts Diagram

Automower Robotic Lawn Mower

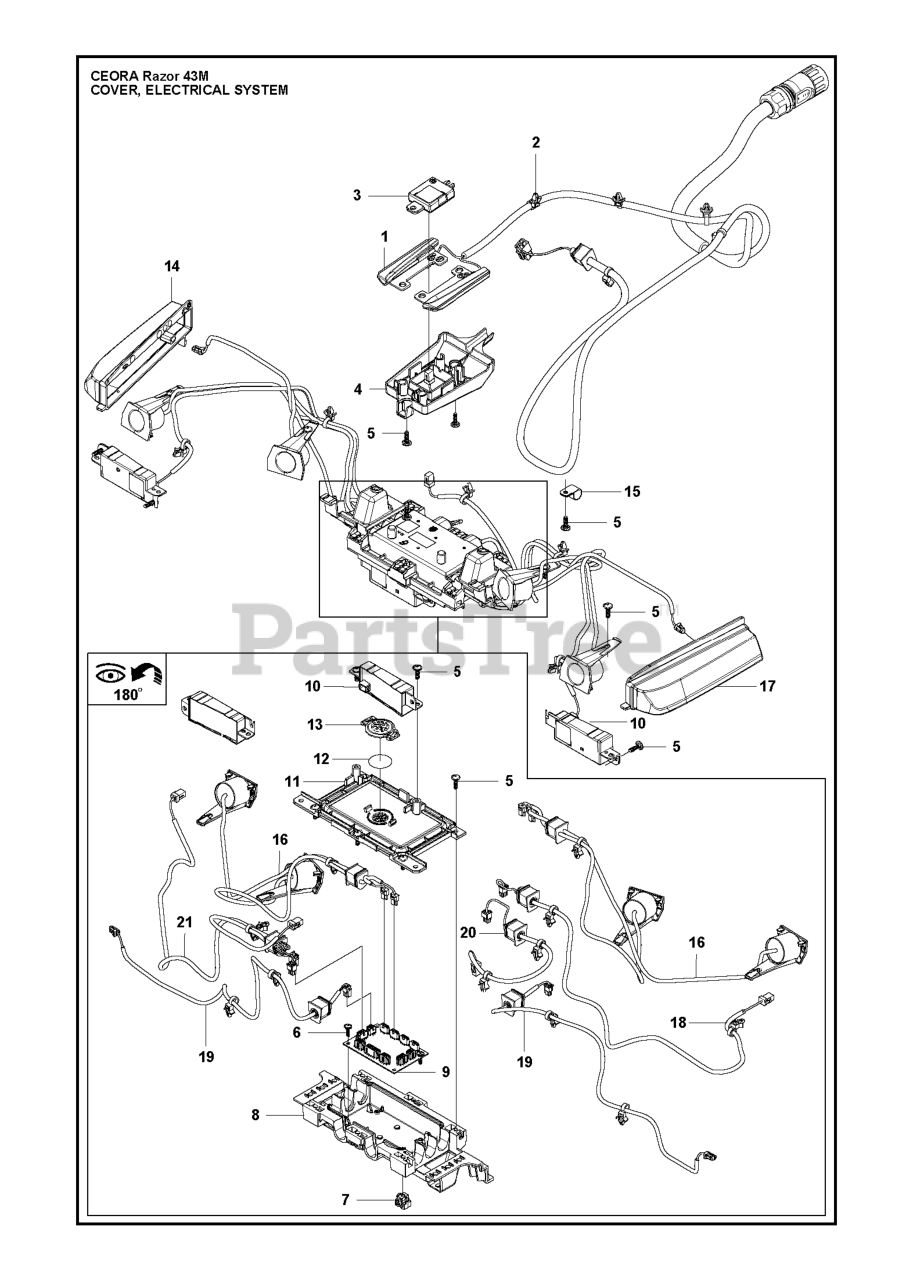

COVER, ELECTRICAL SYSTEM Parts Diagram

  • Title

16

Husqvarna 599645401

WIRING ASSY ULTRA SONIC SENSOR

Note: Ultrasonic sensor + cable

$

$

Not available

18

Husqvarna 598531404

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic & loop sensor single

$

$

Not available

3

Husqvarna 599476401

HOUSING ASSY MAGNETIC SENSOR

Note: Housing assy magentic sensor

$143.99

$

Usually ships in 3-10 days

0

20

Husqvarna 598531401

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy magnetic loop doc

$

$

Not available

9

Husqvarna 594088901

PRINTED CIRCUIT ASSY

Note: Coupling circuit board

$143.99

$

Usually ships in 3-10 days

0

4

Husqvarna 598003501

HOLDER CHARGING PLATES

Note: Holder Charging plates

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 597277602

WIRING ASSY

Note: FROM S/N 222303012, Chassis cable + Charging plates

$

$

Not available

12

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$59.99

$

Usually ships in 3-10 days

0

21

Husqvarna 598531301

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic & loop sensor double

$

$

Not available

1

Husqvarna 537485201

NEEDS DESCRIPTION

Note: UP TO S/N 222303011, Charging chain kit

$335.99

$

Usually ships in 3-10 days

0

15

Husqvarna 599666401

CABLE HOLDER

Note: Cable holder

$

$

Not available

6

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 8

0

14

Husqvarna 595312402

WIRING ASSY LED LIGHT FRONT RI

Note: LED light front right

$107.99

$

Usually ships in 3-10 days

0

7

Husqvarna 598004501

INSERT SCREW BLOCK

Note: Insert

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 595312401

WIRING ASSY LED LIGHT FRONT L

Note: LED light front left

$107.99

$

Usually ships in 3-10 days

0

13

Husqvarna 586038902

COVER

Note: Cover air filter

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 599436401

TIE WRAP CABLE TIE W ARROW MOU

Note: Tie wrap

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 597978501

BASE ELECTRONIC BOX - COUPLING

Note: Base electronic box body

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 599474901

HOUSING ASSY HOUSING ASSY LOOP

Note: Loop sensor circuit board (left, center, right)

$275.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 599597601

WIRING ASSY LED LIGHT 3P FRONT

Note: Wiring assy LED light 3P Front

$

$

Not available

11

Husqvarna 599662801

COVER COUPLING BOX COVER WITH

Note: Cover with sealing electronic box body

$27.99

$

Usually ships in 3-10 days

0
