CEORA - Husqvarna Automower Robotic Lawn Mower FRAME, ELECTRICAL SYSTEM Parts Diagram

Automower Robotic Lawn Mower

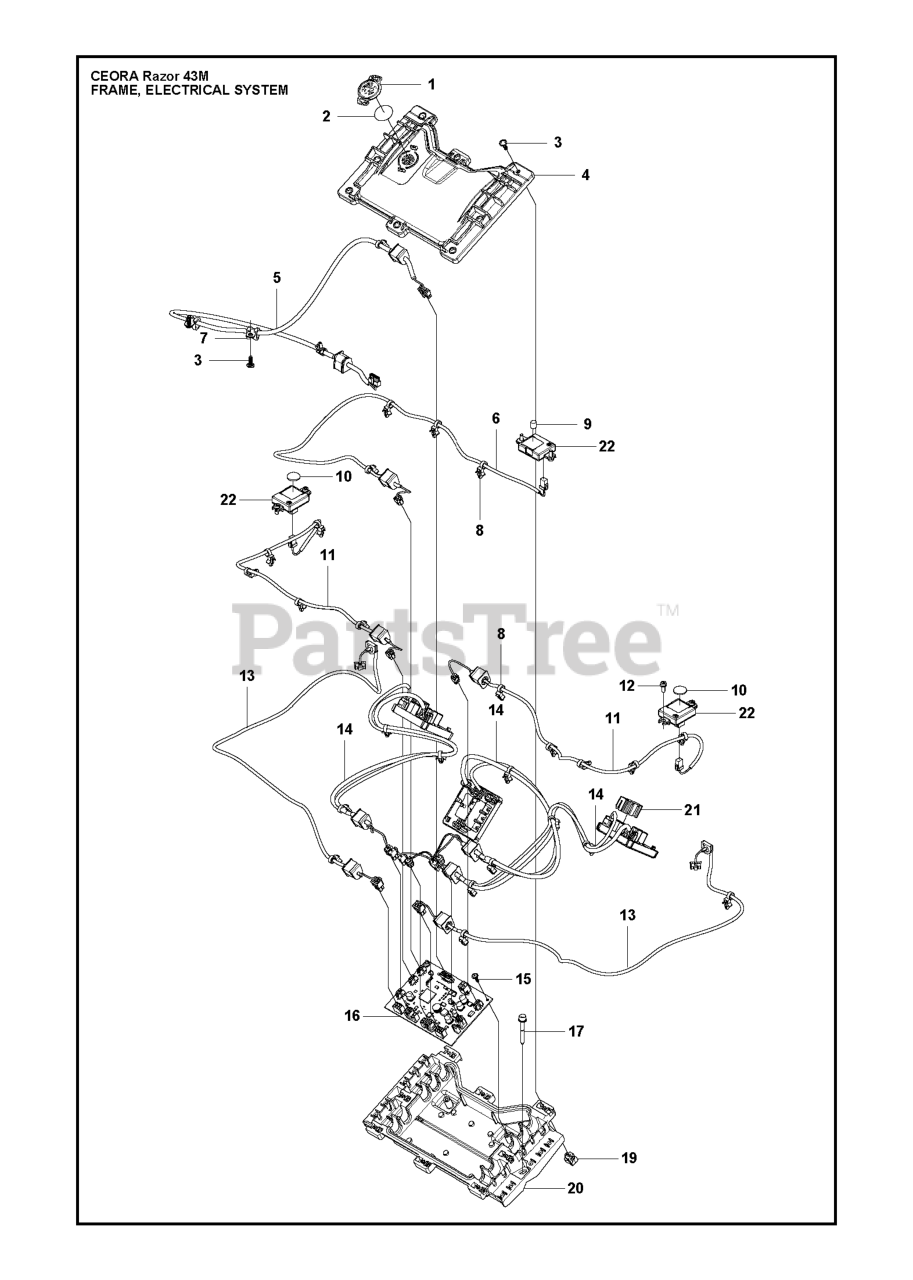

FRAME, ELECTRICAL SYSTEM Parts Diagram

  • Title

21

Husqvarna 529332001

COVER COVER G4B

Note: Cover

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 598460901

MAGNET NEODYMIUM A8 L10

Note: Magnet

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air filter

$68.99

$

Usually ships in 3-10 days

0

20

Husqvarna 598370701

BASE ELECTRONICBOX MAINBOARD

Note: Base electric box frame

$45.99

$

Usually ships in 3-10 days

0

16

Husqvarna 594086801

PRINTED CIRCUIT ASSY PCBA CONT

Note: Control board type 2

$262.99

$

Usually ships in 3-10 days

0

19

Husqvarna 598004501

INSERT SCREW BLOCK

Note: Insert

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 529791402

SCREW ISO 10644 M6X45-10.9-S1

Note: Screw

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525755105

SCREW
(Superseded to 575532001)

Note: Screw

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 599436401

TIE WRAP CABLE TIE W ARROW MOU

Note: Tie wrap

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 598863001

WIRING ASSY HEIGHT ADJUSTMENT

Note: Wiring assy Height adjustment motor

$102.99

$

Usually ships in 3-10 days

0

14

Husqvarna 598919502

CONTROL UNIT G4.B

Note: Cut motor board (G4/B)

$319.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593822101

MAGNET D20X2

Note: Magnet

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 595311901

WIRING ASSY CONTROLBOARD FRONT

Note: Wiring assy Controlboard

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 599666401

CABLE HOLDER

Note: Cable holder P-clip

$

$

Currently unavailable

3

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 599476401

HOUSING ASSY MAGNETIC SENSOR

Note: Magnetic sensor circuit board

$148.99

$

Usually ships in 3-10 days

0

6

Husqvarna 598531403

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic loop sensor single

$96.99

$

Usually ships in 3-10 days

0

4

Husqvarna 599656301

COVER MAIN BORD COVER WITH DIS

Note: Cover electric box frame

$37.99

$

Usually ships in 3-10 days

0

1

Husqvarna 586038902

COVER

Note: Cover air filter

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 598531402

WIRING ASSY MAGNETIC & LOOP SE

Note: Wiring assy Magnetic loop sensor single

$91.99

$

Usually ships in 3-10 days

0
