CFT 24 R (21B-39M8897) - Columbia 24" Tiller (2019) Handle Parts Diagram

24" Tiller

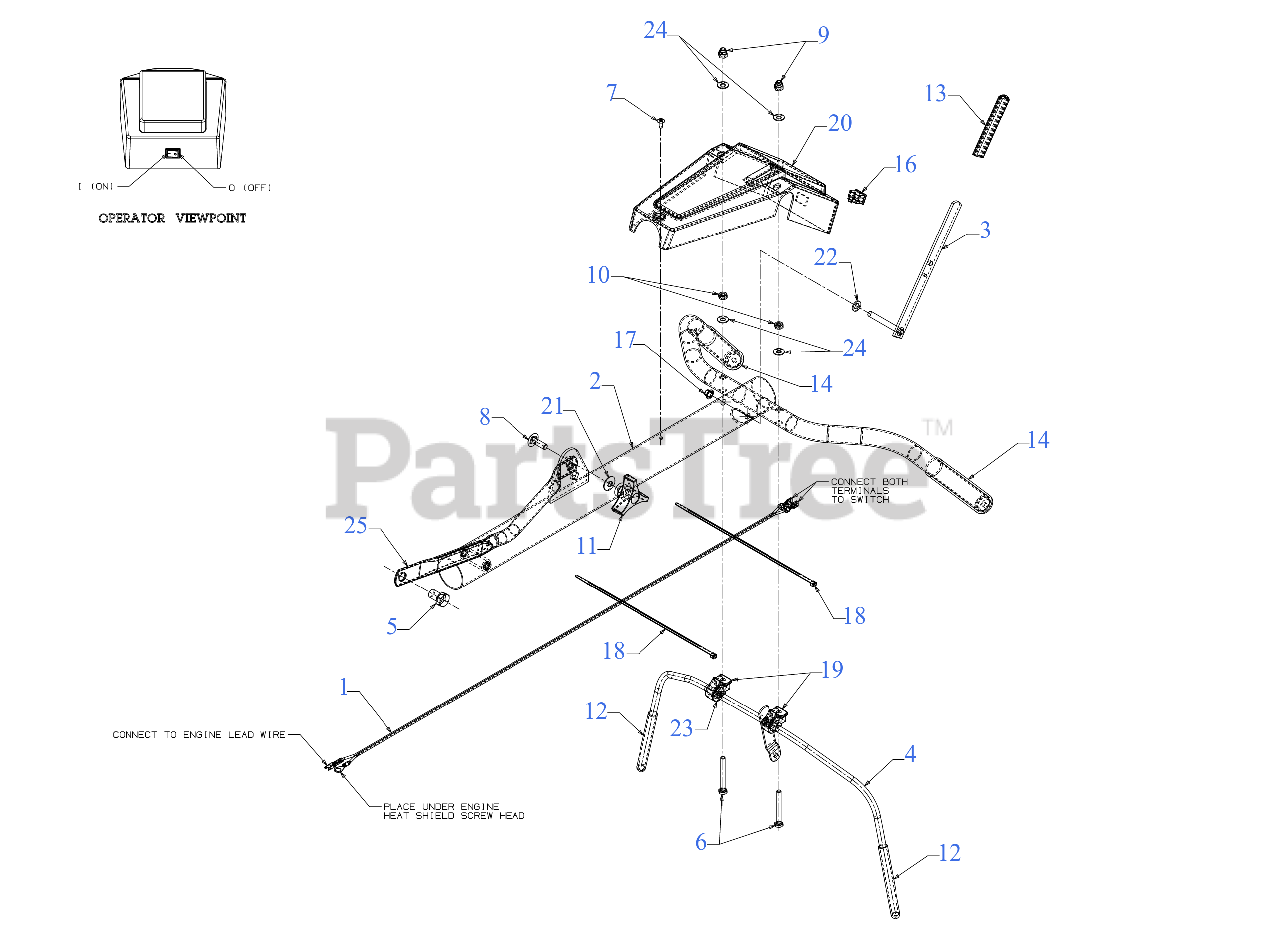

Handle Parts Diagram

  • Title

1

MTD 629-05025

HARNESS ASSEMBLY

$57.99

$

Usually ships in 3-6 days

0

2

MTD 649-04040-0638

HANDLE ASSEMBLY (MTD RED)

$113.99

$

Usually ships in 3-6 days

0

3

MTD 686-0014C-0637

REVERSE HANDLE ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0

4

MTD 686-0083-0637

CLUTCH HANDLE ASSEMBLY (POWDER BLACK)

$50.99

$

Usually ships in 3-6 days

0

5

MTD 710-06053

BOLT 1/2-20 x .75 GR5

$6.49

$

Usually ships in 3-6 days

0

6

MTD 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 4 left!

0

7

MTD 710-0779A

SCREW #10-16 x .500

$4.49

$

In Stock, Qty 12

0

8

MTD 710-1236

SCREW 5/16-18 x 1.00

$6.99

$

In Stock, only 4 left!

0

9

MTD 912-0442

HEX NUT ACORN
(Superseded to 712-0442)

$

$

Not available

10

MTD 712-3006

HEX NUT

$4.99

$

In Stock, Qty 20+

0

11

MTD 720-0195

HANDLE KNOB

$15.99

$

Usually ships in 3-6 days

0

12

MTD 720-0269

CLUTCH GRIP

$4.99

$

In Stock, only 4 left!

0

13

MTD 720-0270A

REVERSE LEVER GRIP

$8.49

$

Usually ships in 3-6 days

0

14

MTD 720-0274

GRIP

$11.99

$

In Stock, Qty 6

0

16

MTD 725-05292

POSITIVE SWITCH- ON/OFF

$6.49

$

Usually ships in 3-6 days

0

17

MTD 726-0135

SPEED NUT

$6.99

$

In Stock, only 2 left!

0

18

MTD 726-04047

CABLE TIE

$3.49

$

Usually ships in 3-6 days

0

19

MTD 931-1645B

CLUTCH HANDLE HOLDER

$16.99

$

In Stock, Qty 5

0

20

MTD 731-2536A

HANDLE COVER

$21.99

$

Usually ships in 3-6 days

0

21

MTD 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

22

MTD 936-0264

FLAT WASHER .344 x .62

$6.99

$

In Stock, Qty 10

0

23

MTD 936-0300

FLAT WASHER.40 ID
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

24

MTD 936-3020

FLAT WASHER .266X.625
(Superseded to 736-3020)

$

$

Not available

25

MTD 749-1401A

HANDLE BRACE

Note: (Choose color when ordering)

Variations

MTD 749-1401A-0606

TUBE-BRACE HANDLE - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-0638

TUBE-BRACE HANDLE - MTD/TROY-BILT RED (0638)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-0691

TUBE-BRACE HANDLE - BLACK JACK (0691)

$50.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-4021

Handle Brace Tube - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-0650

TUBE-BRACE HANDLE - RED METALLIC (0650)

$47.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-0665

TUBE-BRACE HANDLE - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-0721

TUBE-BRACE HANDLE - SEARS RED (0721)

$50.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-4033

TUBE-BRACE HANDLE - FLINT MICA (4033)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401A-4044

TUBE-BRACE HANDLE - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0
