CG 200 - Husqvarna Floor Grinder (2017-10) EDGER ATTACHMENT Parts Diagram

Floor Grinder

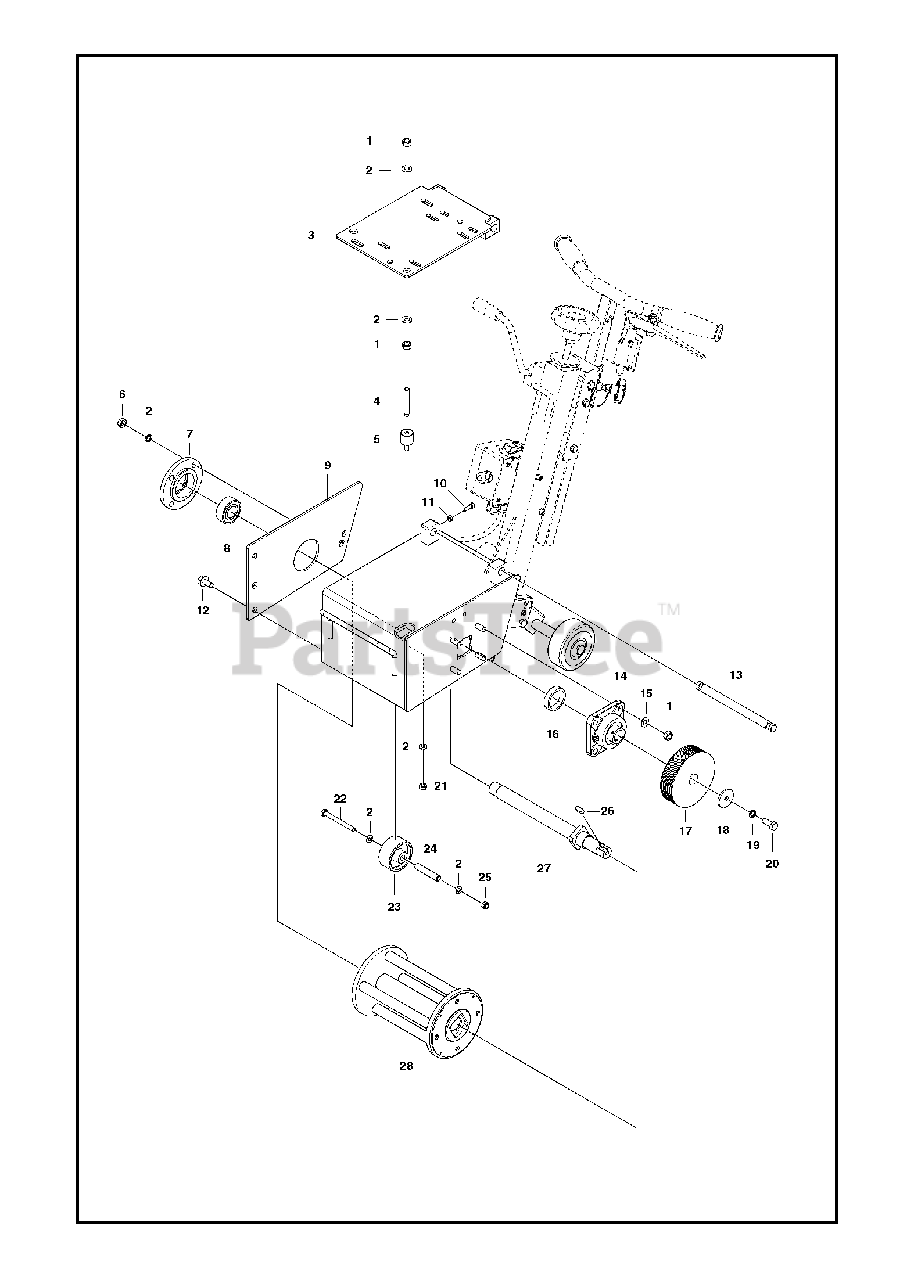

EDGER ATTACHMENT Parts Diagram

  • Title

1

Husqvarna Construction 731 23 20-01

HEXAGON NUT

$6.49

$

In Stock, only 4 left!

0

2

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna Construction 589 37 53-01

ENGINE PLATE

$141.17

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 589 37 53-02

ENGINE PLATEHDX

$232.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 589 38 08-01

SCREW

$

$

Not available

5

Husqvarna Construction 589 37 47-01

DAMPER

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 731 23 20-01

HEXAGON NUT

$6.49

$

In Stock, only 4 left!

0

7

Husqvarna Construction 589 38 69-01

BEARING SUPPORT

$100.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 589 59 05-01

BEARING

$108.99

$

In Stock, only 2 left!

0

9

Husqvarna Construction 590 45 63-01

PLATE

$187.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 590 45 63-02

PLATEHDX

$206.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725 53 70-01

SCREW IHSCM
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

11

Husqvarna 731 23 16-01

HEXAGON NUT

$6.49

$

In Stock, Qty 18

0

12

Husqvarna Construction 585 97 52-01

SCREW EHHFM

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 589 37 46-01

SHAFT

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 589 38 70-01

BEARING UNIT

$245.99

$

Usually ships in 3-10 days

0

15

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna Construction 589 38 71-01

SPACER

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 589 38 73-01

PULLEY

$164.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 589 38 75-01

WASHER

$5.49

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 735 11 73-01

SPRING WASHER

$3.49

$

In Stock, Qty 10

0

20

Husqvarna Construction 725 24 93-71

SCREW EHHM

$1.99

$

In Stock, only 1 left!

0

21

Husqvarna 731 23 18-01

HEXAGON NUT
(Superseded to 695008078)

$

$

Not available

22

Husqvarna Construction 725 24 67-51

SCREW EHHM

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 589 38 20-01

WHEEL

$43.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 589 38 18-01

SPINDLE

$38.99

$

Usually ships in 3-10 days

0

25

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 8

0

26

Husqvarna Construction 502 56 02-03

PARALLEL KEY

$5.49

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 589 38 65-01

DRIVE SHAFT

$117.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 543 04 02-10

DRUM

$860.99

$

Usually ships in 3-10 days

0
