CG 46 (954040607-A) - Husqvarna Grass Catcher (1997-12) Grass Catcher Parts Diagram

Grass Catcher

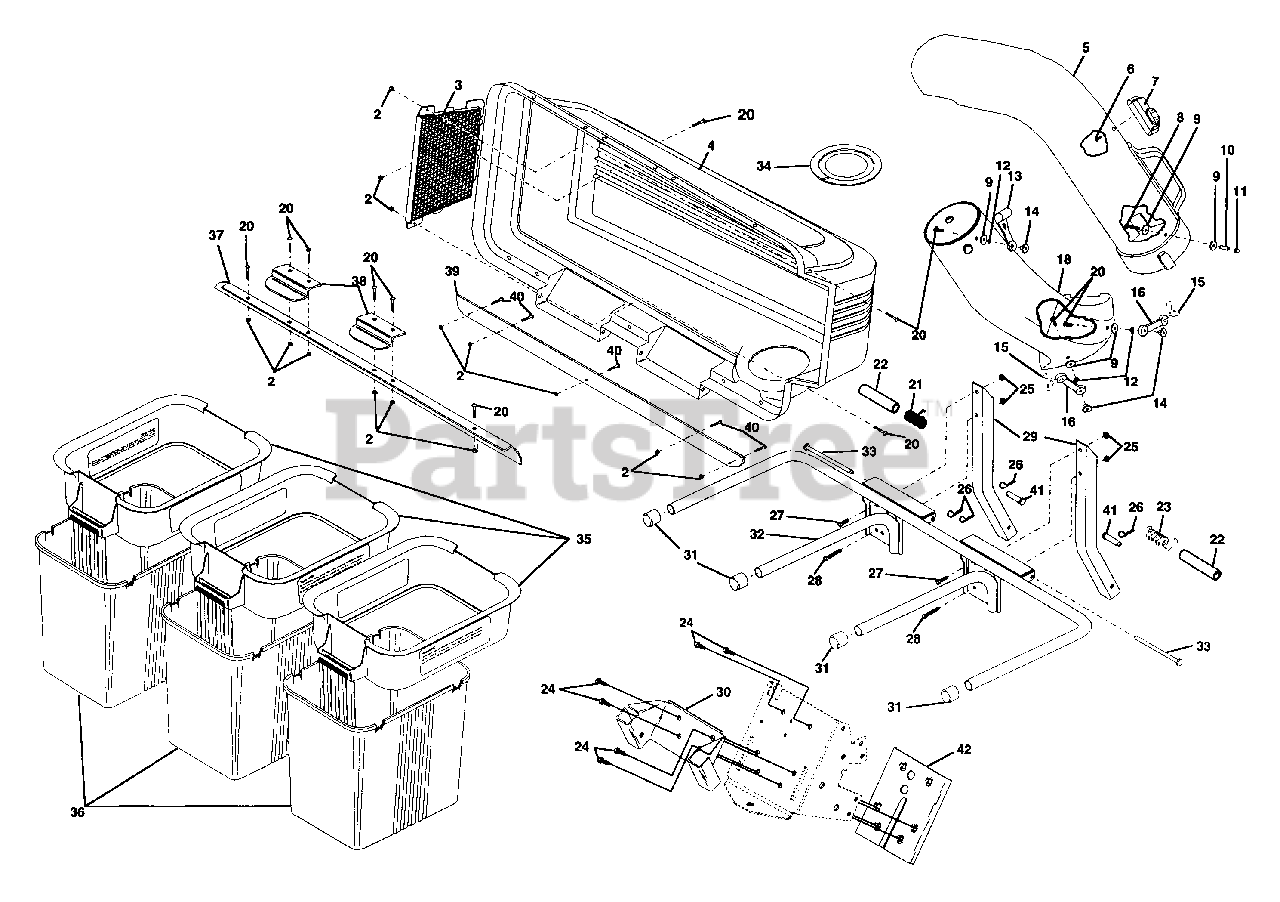

Grass Catcher Parts Diagram

  • Title

2

Husqvarna 532069180

LOCKNUT

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532127533

COVER SCREEN

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 532134678

COVER BAGGER
(Superseded to 532400436)

$

$

Not available

5

Husqvarna 532126840

CHUTE.UPPER.42"

$85.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$5.99

$

In Stock, Qty 6

0

7

Husqvarna 532140572

INDICATOR DUMP BAG

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 11

0

9

Husqvarna 819061216

WASHER

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$3.99

$

In Stock, Qty 11

0

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532130760

HOOK LATCH
(Superseded to 597000601)

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532130759

RUBBER LATCH
(Superseded to 597000601)

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532145578

CHUTE.LOW.GT.46

$

$

Not available

20

Husqvarna 871161010

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 532132796

SPRING COVER LH

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532140809

SPACER BAG 3-PIN

$4.99

$

In Stock, only 3 left!

0

23

Husqvarna 532132983

SPRING COVER RH

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780712

BOLT 7/16-14X3/4

$

$

Not available

25

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

27

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 874760536

Bolt, Hex 5/16-18 x 2-1/4

$

$

Not available

29

Husqvarna 532144840

POST SUPT BAGGER
(Superseded to 583677201)

$

$

Not available

30

Husqvarna 532144839

BRACKET MTG

$

$

Not available

31

Husqvarna 532134496

TUBING PLUG
(Superseded to 532174083)

$6.99

$

In Stock, Qty 14

0

32

Husqvarna 532134639

FRAME

$

$

Not available

33

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$20.99

$

In Stock, only 2 left!

0

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$20.99

$

In Stock, Qty 9

0

35

Husqvarna 532129585

CONTAINER TOP
(Superseded to 532183286)

$51.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$74.99

$

In Stock, only 4 left!

0

37

Husqvarna 532134637

BAGGER TOP SEAL

$

$

Not available

38

Husqvarna 532130895

LATCH CER38

$6.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532139854

REINFORCEMENT STRIP

$

$

Not available

40

Husqvarna 871141008

Screw #10-24 x 1/2

$

$

Not available

41

Husqvarna 532145326

PIN CLEVIS

$

$

Not available

42

Husqvarna 532145892

PLATE REINF MTG

$

$

Not available

Husqvarna 532104419

REPL BY 532 10 50-70
(Superseded to 532105070)

Note: (Not included with bagger)

$

$

Not available

Husqvarna 532155948

CG46 OPER MANUAL

$

$

Not available
