CGE 6000 (UT-03764-C) - Homelite Generator Brush Head - Generator Parts Diagram

Generator

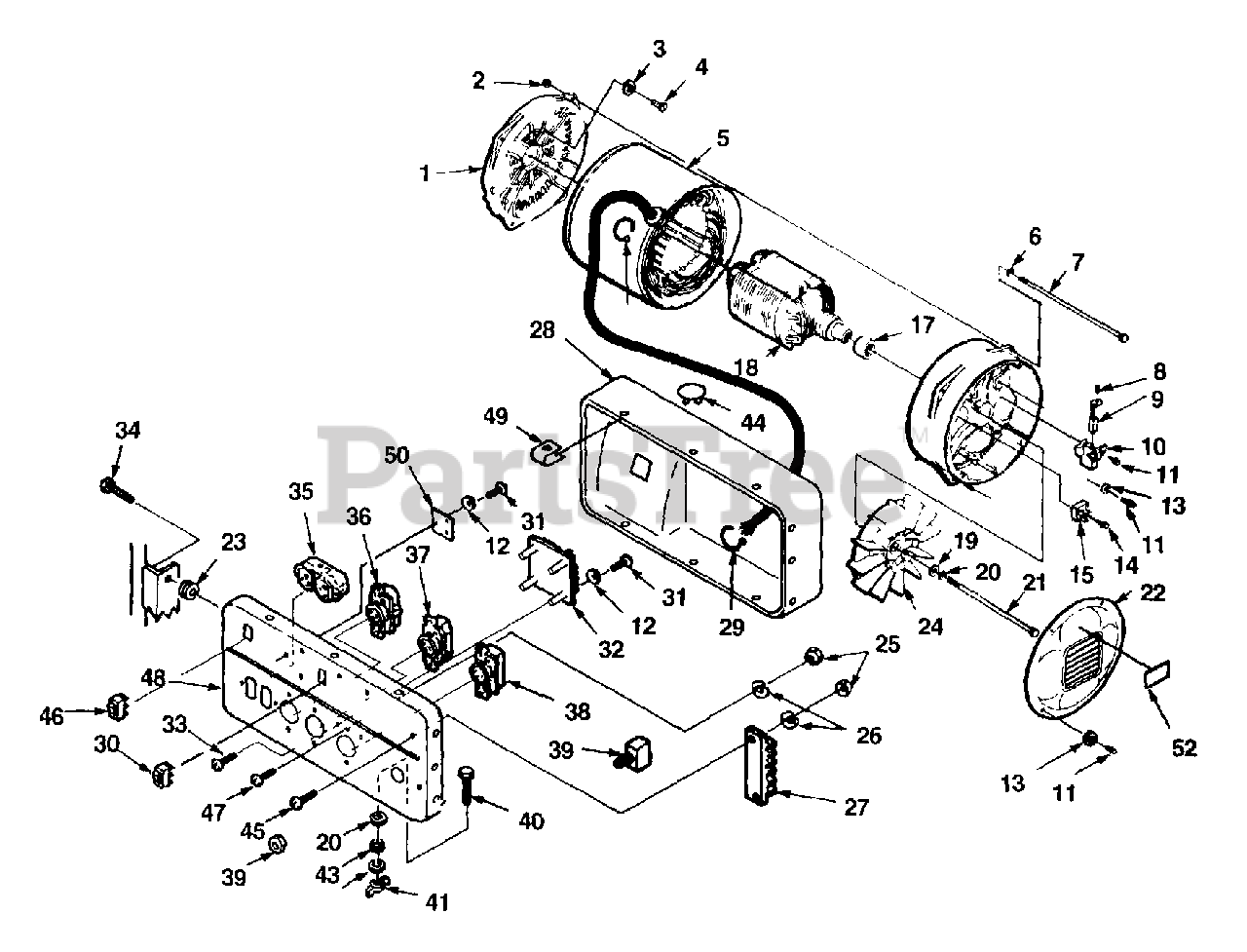

Brush Head - Generator Parts Diagram

  • Title

1

Homelite 5375226

END BELL

$

$

Not available

2

Homelite 81053

NUT-Hex (1/4-20)

$

$

Not available

Homelite 81053

NUT-Hex (1/4-20) Electric Start

$

$

Not available

3

Homelite 83117

WASHER-Lock

$2.49

$

Usually ships in 3-7 days

0

4

Homelite PS80187

SCREW-Hex Hd (3/8-16 X 7/8")

Note: Torque Specs: 240-250 In/Lbs, 27.1-28.2 Nm , Required Loctite Red 277

$2.49

$

Usually ships in 3-7 days

0

5

Homelite A49331S

STATOR SHELL
(Superseded to A49331AS)

$

$

Not available

6

Homelite 83070

WASHER-Lock/int (1/4")

$

$

Not available

Homelite 83070

WASHER-Lock/Int (1/4") Electric Start

$

$

Not available

7

Homelite 4885304

BOLT-Stator

$

$

Not available

8

Homelite 80260

SCREW-Mach Pan Hd (8-32 X 3/8")

Note: Torque Specs: 5-7 In/Lbs, .6-.8 Nm

$

$

Not available

9

Homelite 53762

BRUSH

$

$

Not available

10

Homelite 53760

BRUSH HOLDER

$17.99

$

Usually ships in 3-7 days

0

11

Homelite 82474

SCREW-Thread Rolling (8-32 X 1/2")

Note: Torque Specs: 18-22, 2.0-2.5 Nm

$

$

Not available

12

Homelite 84025

WASHER-Flat (#8)

$

$

Not available

13

Homelite 83022

WASHER-Lock (#8)
(Superseded to UP03410)

$

$

Not available

14

Homelite 82205

SCREW-Hex Tap (8-32 X 3/4")

Note: Torque Specs: 18-22 In/Lbs, 2.0-2.5 Nm

$

$

Not available

15

Homelite 53818A

RECTIFIER

$

$

Not available

?16

Homelite 491844

BRUSH HEAD

$

$

Not available

17

Homelite 53819

BEARING

$

$

Not available

18

Homelite A49094S

ROTOR

$

$

Not available

19

Homelite 84058

WASHER-Flat (5/16)

$

$

Not available

20

Homelite 83002

WASHER-Lock (5/16)
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 4885209

BOLT-Rotor

$

$

Not available

22

Homelite 513941A

BRUSH HEAD COVER

$

$

Currently unavailable

23

Homelite 49351

GROMMET

$

$

Not available

24

Homelite A53769

FAN

$

$

Currently unavailable

25

Homelite 81009

NUT-Hex (8-32)

$

$

Not available

26

Homelite 83060

WASHER-Lock (#8)
(Superseded to UP07171)

$

$

Not available

27

Homelite 42366

BLOCK-Terminal

$

$

Not available

28

Homelite A49271

PANEL-Cover
(Superseded to UP07058)

$

$

Not available

29

Homelite PS46840

CABLE TIE

$

$

Currently unavailable

30

Homelite 49569

SWITCH (DPDT)

$

$

Not available

31

Homelite 80577

SCREW-Pan Hd (#8-32 X 1/2")
(Superseded to UP03389)

Note: Torque Specs: 8-10 In/Lbs, .9-1.1 Nm

$

$

Not available

32

Homelite A06289

VOLTAGE REGULATOR

$386.99

$

Usually ships in 3-7 days

0

33

Homelite 82596

SCREW- Plastite (8-16 x 1")

Note: Torque Specs: 12-14 In/Lbs, 1.4-1.6 Nm

$

$

Not available

34

Homelite 49748

SCREW-Shoulder

$

$

Not available

35

Homelite A08633

RECEPTACLE, GFCI (Nema 5-15R)

$

$

Currently unavailable

36

Homelite 48978

RECEPTACLE-Locking (Nema L5-20R)

$

$

Not available

37

Homelite 42601

RECEPTACLE-Locking (Nema L5-30R)

$

$

Not available

38

Homelite 46508

RECEPTACLE-Locking (Nema L14-20R)

$

$

Not available

39

Homelite 02201

CIRCUIT BREAKER-3.0 Amp

$

$

Not available

40

Homelite 82598

SCREW-Hex Md (5/16-18 X 1")

$

$

Not available

41

Homelite 81015

NUT-Wing (5/16-18)

Note: Torque Specs: Hand Tight

$

$

Not available

?42

Homelite 83081

WASHER-Lock (5/16)

$

$

Not available

43

Homelite 81018

NUT-Hex (5/16-18)

$

$

Not available

44

Homelite 49368

CLAMP-Cable

$

$

Not available

45

Homelite 80582

SCREW-Pan Hd (8/32 X 5/8")

Note: Torque Specs: 12-14 In/Lbs, 1.4-1.6 Nm

$

$

Not available

46

Homelite 49299

SWITCH-Rocker

$

$

Not available

47

Homelite 80577

SCREW-Machine Pan (8-32 X 3/8")
(Superseded to UP03389)

Note: Torque Specs: 12-14 In/Lbs, 1.4-1.6 Nm

$

$

Not available

48

Homelite A02208

CONTROL PANEL

$

$

Currently unavailable

49

Homelite 02191

DECAL-Schematic

$

$

Not available

50

Homelite A01865A

IDLE CONTROL
(Superseded to UP06353)

$

$

Not available

?51

Homelite 81227

NUT-Speed

$

$

Not available

52

Homelite 49613

DECAL-Warning

$

$

Not available

Homelite 09181

CIRCUIT BREAKER (15 AMP)
(Superseded to UP06951)

$

$

Not available

Homelite 09183

CIRCUIT BREAKER (20 AMP)

$

$

Not available

Homelite 06692A

CIRCUIT BREAKER (30 AMP)
(Superseded to 49814)

$

$

Not available
