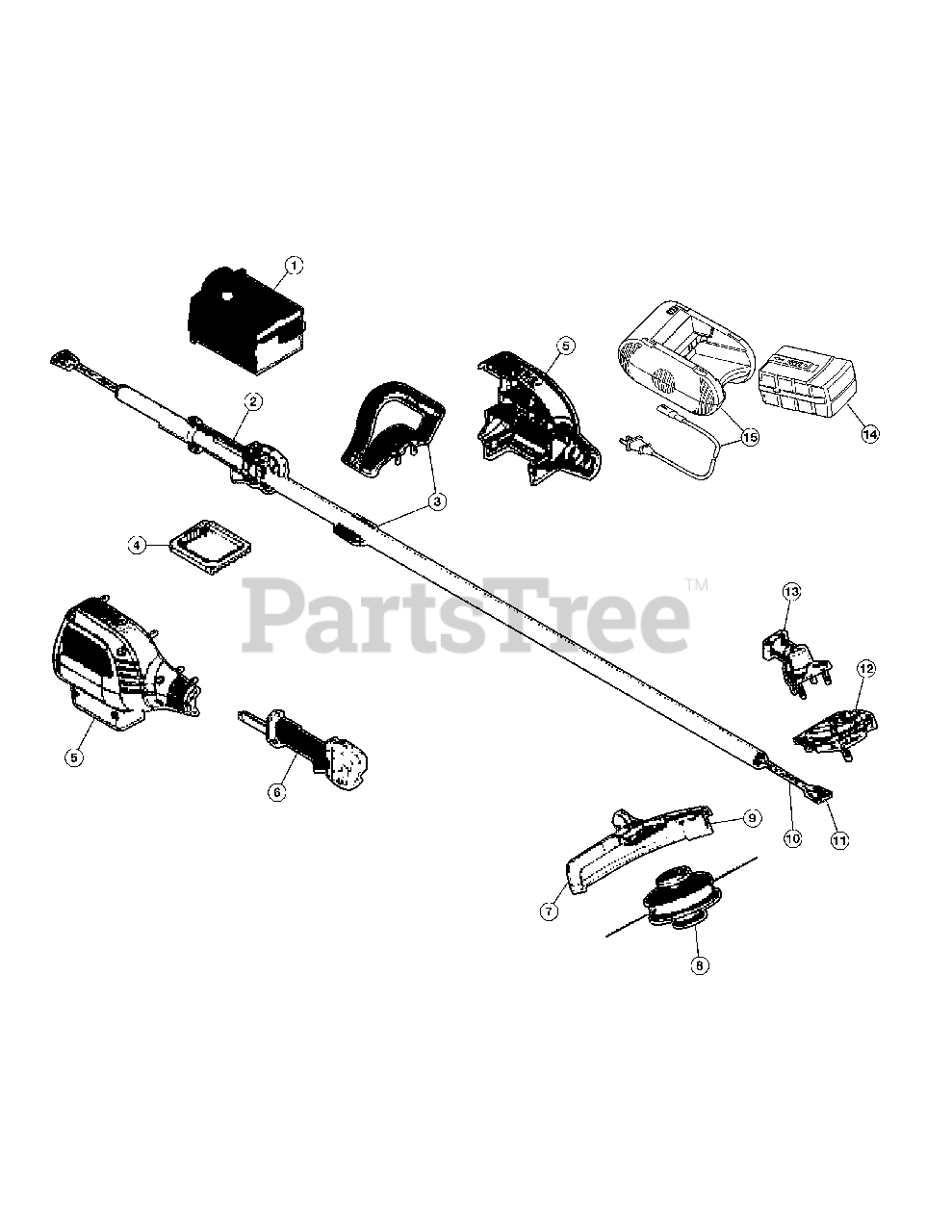

CGT 400 (41AERP3C908) - CORE by Cub Cadet String Trimmer, Electric General Assembly Parts Diagram

String Trimmer, Electric

General Assembly Parts Diagram

  • Title

1

MTD 753-08424

Power Sleeve Assembly

$31.99

$

Usually ships in 3-6 days

0

2

MTD 753-08420

Trimmer Shaft Assembly

$56.99

$

Usually ships in 3-6 days

0

3

MTD 753-08406

Assist Handle Assembly

$

$

Not available

4

MTD 753-08418

Controller PCB Assembly

$

$

Not available

5

MTD 753-08447

Power Housing Assembly

$55.99

$

Usually ships in 3-6 days

0

6

MTD 753-08423

Grip Handle Assembly with Switch Wires
(Superseded to 753-08486)

$79.99

$

Usually ships in 3-6 days

0

7

MTD 753-08421

String Guard Assembly

$

$

Not available

8

MTD 753-08422

Weedwrap Bumphead

$

$

Not available

9

MTD 753-08431

Blade

$

$

Not available

10

MTD 753-08413

Phase Wire Assembly

$34.99

$

Usually ships in 3-6 days

0

11

MTD 753-08414

Hall Wire Assembly

$

$

Not available

12

MTD 753-08419

Motor Assembly

$289.99

$

Usually ships in 3-6 days

0

13

MTD 753-08410

Yoke

$22.99

$

Usually ships in 3-6 days

0

14

MTD 725-06466

Battery 18.5 V
(Superseded to 490-280-C004)

$

$

Not available

15

MTD 753-08485

Charger 21 V
(Superseded to 490-280-C005)

$

$

Not available
