CH 4400 - Bear Cat 4" Chipper, 400cc Subaru (SN: 5VJAA0017DW000001 - 5VJAA0115HW005384) Housing (VIN: 5VJAA0017DW000001 - 5VJAA0013EW004182) Parts Diagram

4" Chipper, 400cc Subaru

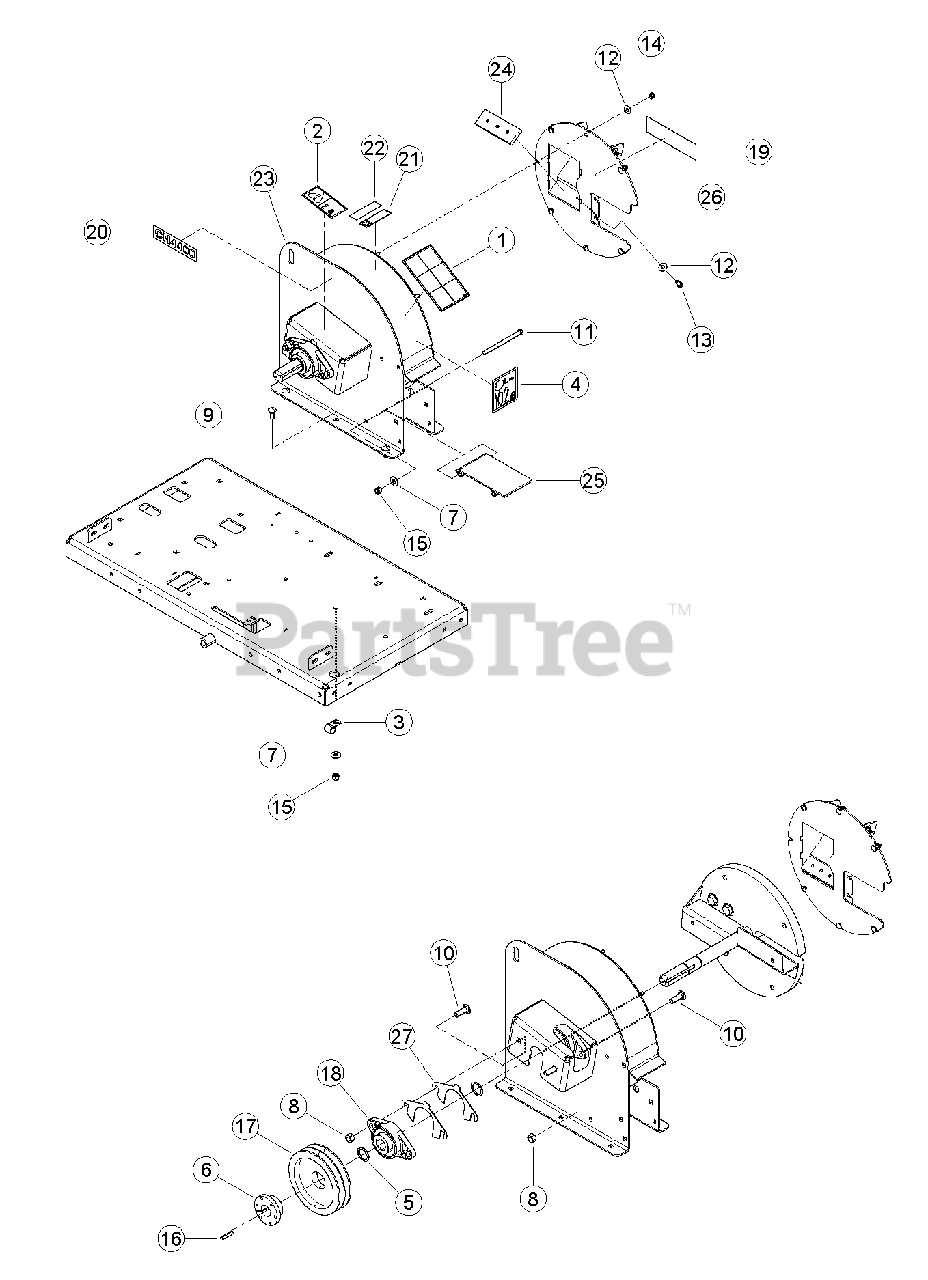

Housing (VIN: 5VJAA0017DW000001 - 5VJAA0013EW004182) Parts Diagram

  • Title

1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16" COATED

$

$

Not available

4

Bear Cat 14186-00

DECAL, 107 DB (CE COMPLIANT ONLY)

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14769-00

BUSHING, SDS 1-1/4"

$71.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

9

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.99

$

Usually ships in 3-7 days

0

11

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

17

Bear Cat 16001

SHEAVE, 2B 6.6 SDS

$157.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

19

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

20

Bear Cat 31466-00

DECAL, MODEL CH4400

$8.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31499-00

DECAL, INFORMATION (CE COMPLIANT ONLY)

$11.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT ONLY)

$10.99

$

Usually ships in 3-7 days

0

23

WELDMENT, CHIPPER HOUSING

Note: (REPLACED AND SUPERSEDED 74488-35. FOR SERVICE ORDER KIT 77769-00)

$

$

Not available

24

Bear Cat 74529-00

ANVIL, CHIPPER

$57.99

$

Usually ships in 3-7 days

0

25

Bear Cat 74571-12

WELDMENT, CHIP DEFLECTOR

$

$

Not available

26

WELDMENT, ROTOR COVER

Note: (REPLACED AND SUPERSEDED 77721-35. FOR SERVICE ORDER PN 70026-00)

$

$

Not available

27

SHIM, BEARING (WAS 75550-00, REMOVED)

$

$

Not available
