CH 450 H - Bear Cat 4.5" Hydraulic Chipper, Skid Steer (SN: 709159 - D03876) Rotor & Hydraulics Parts Diagram

4.5" Hydraulic Chipper, Skid Steer

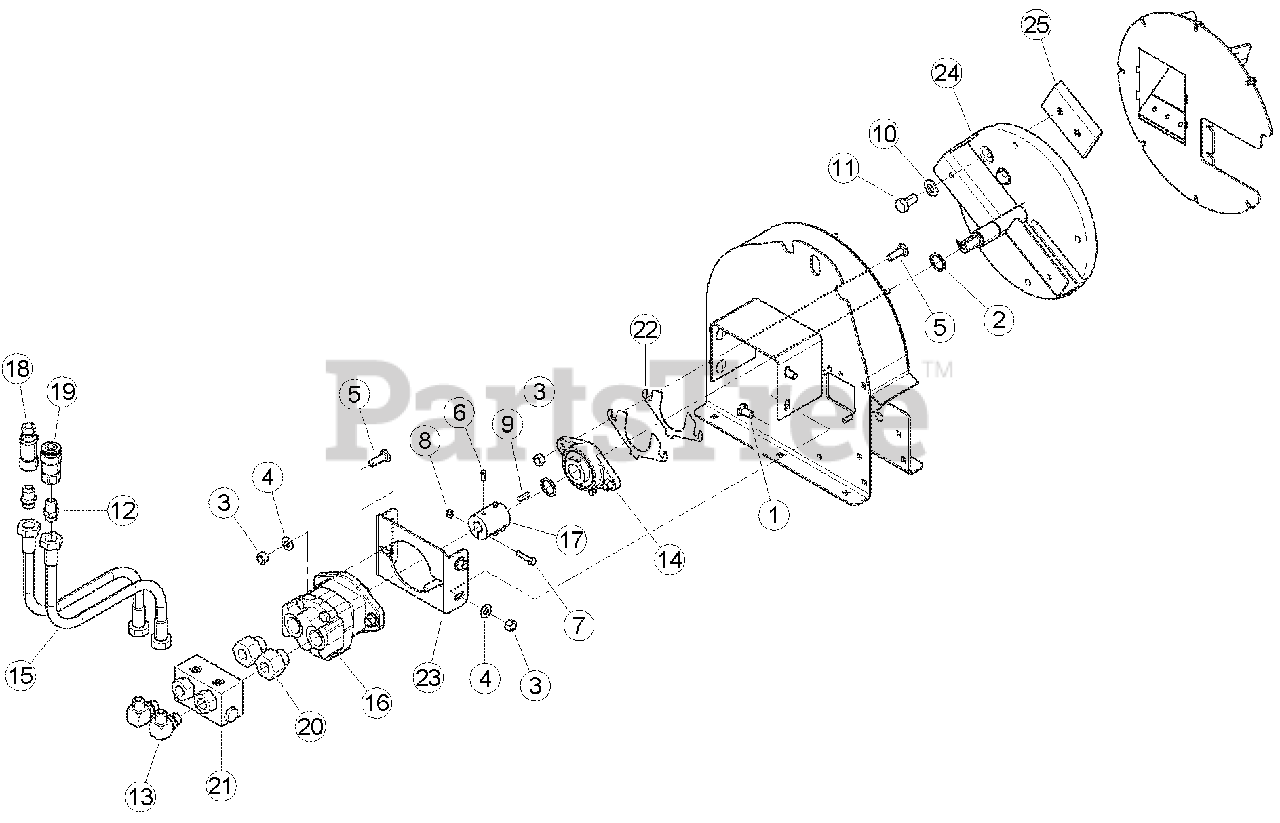

Rotor & Hydraulics Parts Diagram

  • Title

1

0103-0112-00

BOLT, 1/2 X 1 CRG GR5 ZP

$

$

Not available

2

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.99

$

Usually ships in 3-7 days

0

6

15180

SET SCREW, 1/4 X 5/8 SQ HD

$

$

Not available

7

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15365

KEY, 1/4 SQUARE X 1 LONG

$

$

Not available

10

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$12.99

$

Usually ships in 3-7 days

0

12

16330

ADAPTER, -10 MORING / -10 MJIC

$

$

Not available

13

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

14

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

15

Bear Cat 36181-00

HOSE, .63 X 46" -10 FMJIC SW / -10FMJIC SW

$117.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36182-00

MOTOR, .93 CU. IN. HYD

$2548.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36183-00

COUPLER, 7/8 SPLIT

$255.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36184-00

COUPLER, MALE PRESSURE CONNECT

$229.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36185-00

COUPLER, FEMALE CONNECT

$228.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36658-00

ADAPTER, -16 MORING / -10 FMORING

$31.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36669-00

MANIFOLD, OVERRUN AND REVERSE CHECK -10

$1407.99

$

Usually ships in 3-7 days

0

22

Bear Cat 75550-00

SHIM, BEARING

$24.99

$

Usually ships in 3-7 days

0

23

75912-12

PLATE, MOTOR MOUNT

$

$

Not available

24

Bear Cat 75922-00

WELDMENT, 4-1/2 HYD DISK
(Superseded to 77799-00)

$1038.99

$

Usually ships in 3-7 days

0

25

BLADE, BIG CHIPPER (FOR SERVICE ORDER REPLACEMENT BLADE KIT # 76295-00)

$

$

Not available

25

Bear Cat 76295-00

KIT, 4-1/2 CHIPPER BLADE KIT

$

$

Not available
