CH 450 H - Bear Cat 4.5" Hydraulic Chipper, Skid Steer (SN: D08936 & Above) Rotor & Hydraulics Parts Diagram

4.5" Hydraulic Chipper, Skid Steer

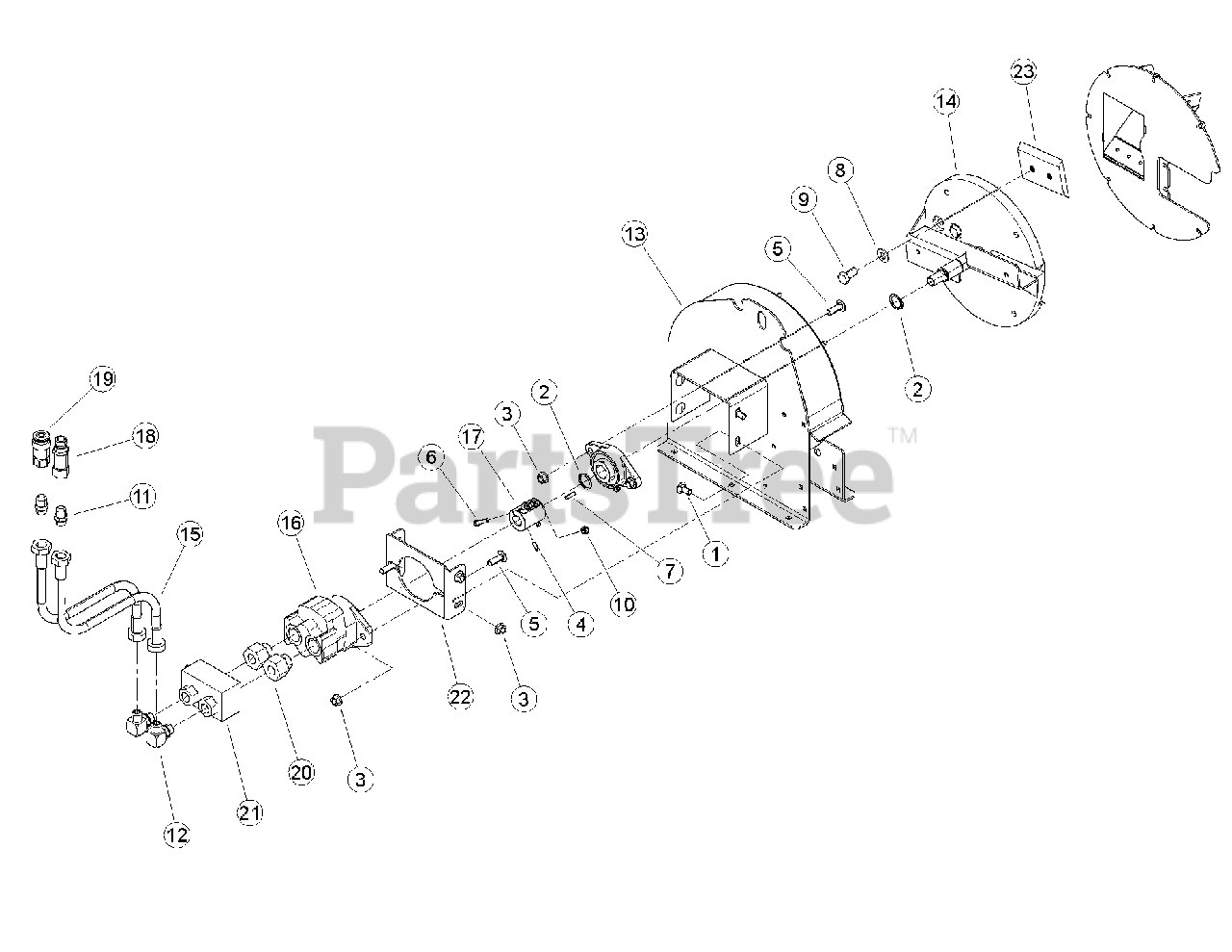

Rotor & Hydraulics Parts Diagram

  • Title

1

0103-0112-00

BOLT, 1/2 X 1 CRG GR5 ZP

$

$

Not available

2

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.99

$

Usually ships in 3-7 days

0

3

15011

NUT, 1/2" SERRATED FLANGE

$

$

Not available

4

15180

SET SCREW, 1/4 X 5/8 SQ HD

$

$

Not available

5

Bear Cat 15220-00

BOLT, 1/2 X 1-1/2 CRG SN GR5 ZP

$6.49

$

Usually ships in 3-7 days

0

6

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

7

Bear Cat 15365

KEY, 1/4" SQ X 1" LG

$

$

Not available

8

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/ PATCH

$12.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

16330

ADAPTER, -10 MORING/-10 MJIC

$

$

Not available

12

16638

ADAPTER, -10 MORING/-10 MJIC 90 DEG

$

$

Not available

13

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

14

Bear Cat 32964-00

WELDMENT, 4-1/2 HYD ROTOR
(Superseded to 77799-00)

$1038.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36181-00

HOSE,.63X-10 FMJIC SW/ -10 FMJIC SW 46"

$117.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36182-00

MOTOR, .93 CU. IN. HYD

$2548.99

$

Usually ships in 3-7 days

0

17

Bear Cat 36183-00

COUPLER, 7/8 SPLIT

$255.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36184-00

COUPLER, MALE PRESSURE CONNECT

$229.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36185-00

COUPLER, FEMALE CONNECT

$228.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36658-00

ADAPTER, -16 MORING X -10 FMORING

$31.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36669-00

MANIFOLD, OVERRUN AND REVERSE CHECK -10

$1407.99

$

Usually ships in 3-7 days

0

22

75912-12

PLATE, MOTOR MOUNT

$

$

Not available

23

Bear Cat 76112-00

BLADE, BIG CHIPPER

Note: (FOR SERVICE ORDER REPLACEMENT BLADE KIT 76295-00)

$

$

Not available
