CH 45342 - Bear Cat 4.5" Chipper, 342cc (SN: A03570 - A09560) Engine - CH45342 Parts Diagram

4.5" Chipper, 342cc

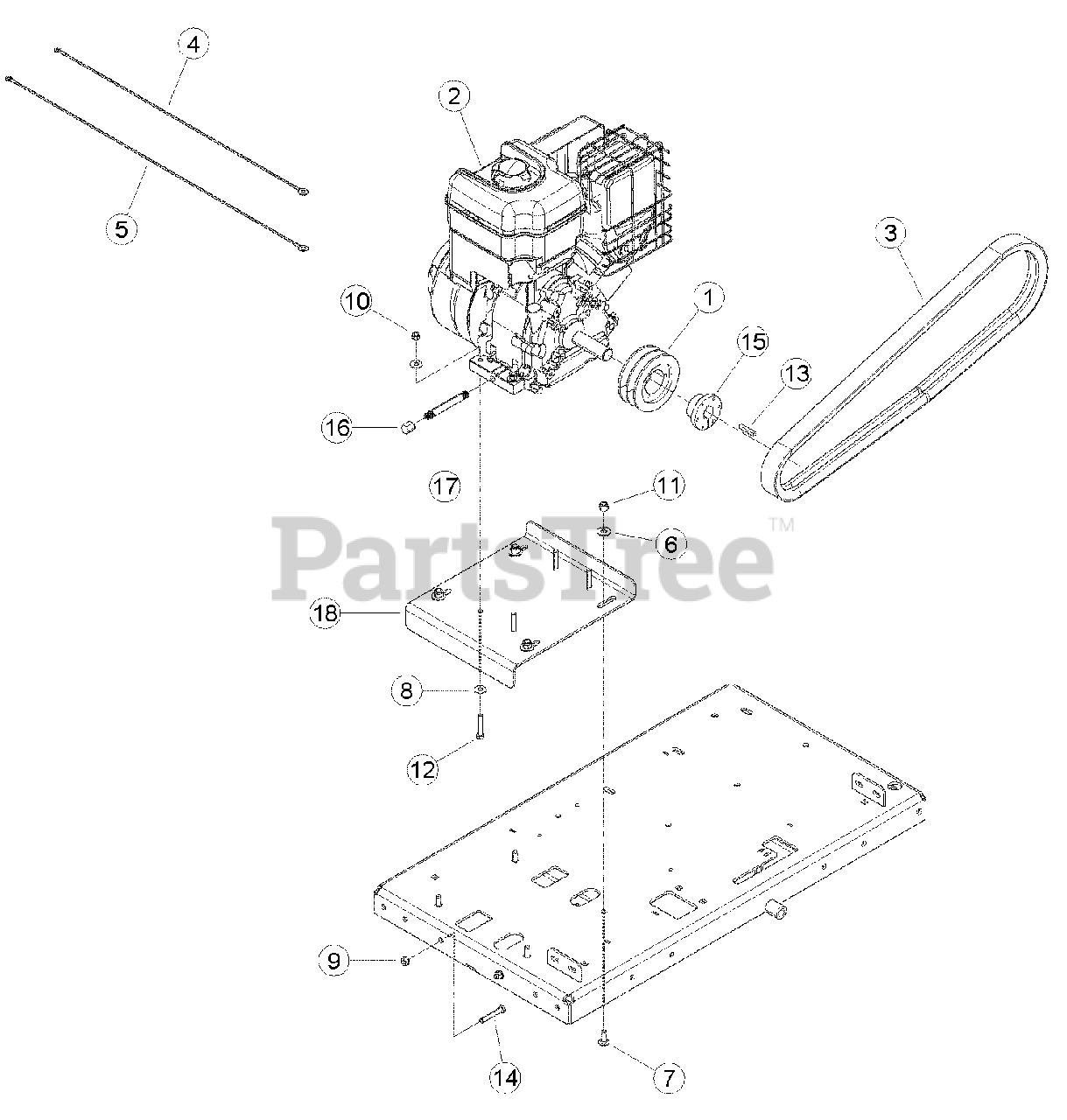

Engine - CH45342 Parts Diagram

  • Title

1

12407

SHEAVE, 2B4.4 SH, QD

$

$

Not available

2

ENGINE, 342CC ELEC B+S HORIZONTAL (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED BRIGGS & STRATTON ENGINE DEALER)

$

$

Not available

3

Bear Cat 14770-00

BELT, 2RB61 ARAMID

$198.99

$

Usually ships in 3-7 days

0

4

14781-00

WIRE, 25" NEG (R / INSUL R)

$

$

Not available

5

14782-00

WIRE, 30" POS (INSUL RINGS)

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15351

NUT, 5/16 SERR FLANGE NC ZP

$

$

Not available

10

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

14

Bear Cat 15715-00

BOLT, 5/16 X 3 NC FULL THD

$1.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16517

BUSHING, SH 1"

$

$

Not available

16

Bear Cat 17496

PIPE CAP, 1/4" GALV.,HEX HEAD

$10.99

$

Usually ships in 3-7 days

0

17

Bear Cat 17497

PIPE NIPPLE, 1/4 X 4" GALVANIZED

$

$

Not available

18

74469-12

PLATE, 12 HP B+S ENGINE

$

$

Not available
