CH 45342 - Bear Cat 4.5" Chipper, 342cc (SN: A03570 - A09560) Housing - CH45342 & CH45390 Parts Diagram

4.5" Chipper, 342cc

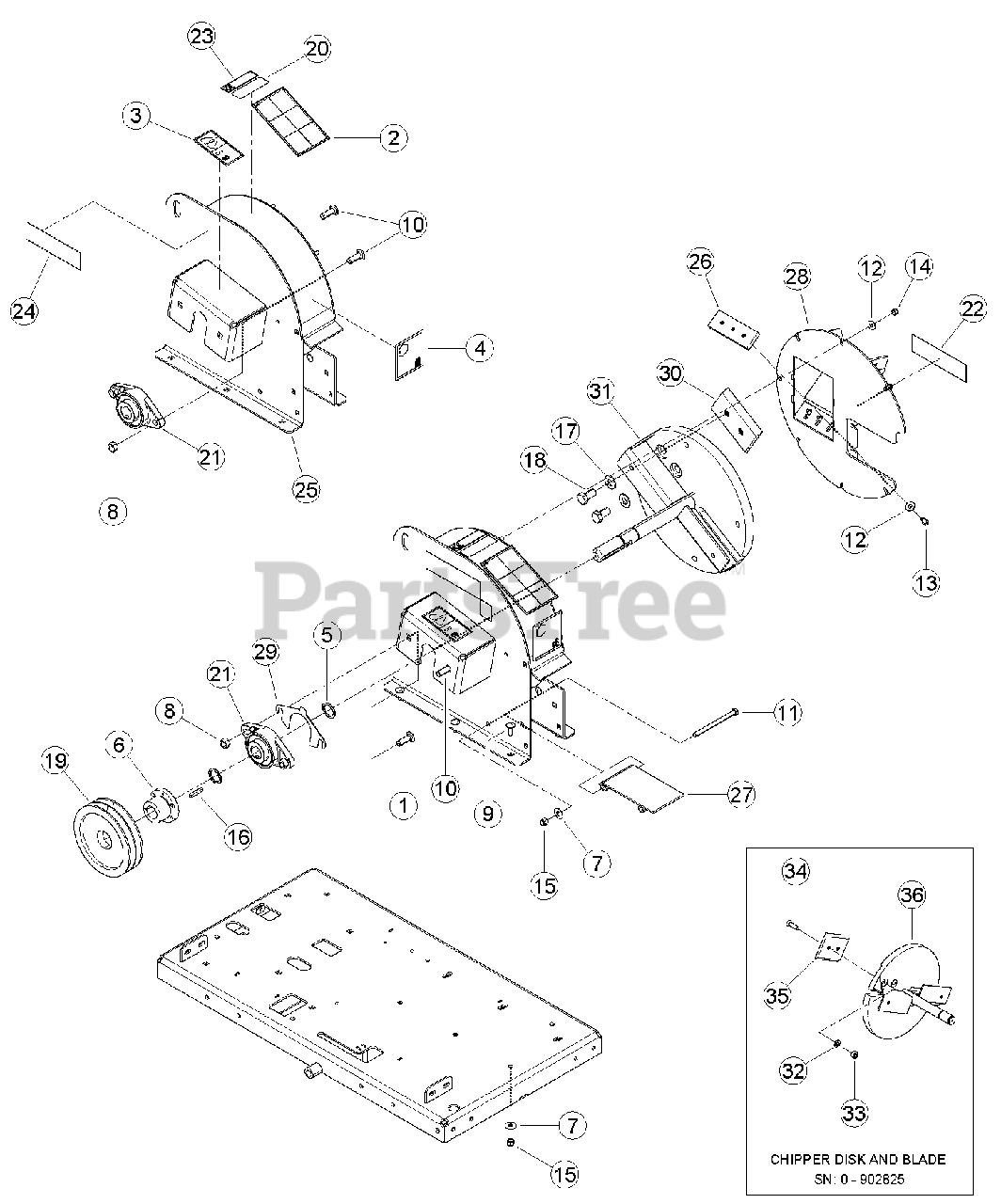

Housing - CH45342 & CH45390 Parts Diagram

  • Title

1

0103-0115-00

BOLT, 1/2 X 1-3/4 CRG GR5 ZP (CH45342 ONLY)

$

$

Not available

2

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14186-00

DECAL, 107 DB (CH45342)

$12.99

$

Usually ships in 3-7 days

0

4

14185-00

DECAL, 102 DB (CH45390)

$

$

Not available

5

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14769-00

BUSHING, SDS 1-1/4"

$71.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

9

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.99

$

Usually ships in 3-7 days

0

11

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

17

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$12.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16001

SHEAVE, 2B 6.6 SDS

$157.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16155

DECAL, SERIAL NUMBER (CH45342 ONLY)

$

$

Not available

21

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

22

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

23

18695-00

DECAL, 77412S INFORMATION (CE COMPLIANT ONLY)

$

$

Not available

24

Bear Cat 18943-00

DECAL, MODEL CH45342

$7.99

$

Usually ships in 3-7 days

0

24

Bear Cat 36033-00

DECAL, MODEL CH45390

$5.49

$

Usually ships in 3-7 days

0

25

Bear Cat 74488-35

WELDMENT, CHIPPER HOUSING
(Superseded to 77769-00)

$990.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74529-00

ANVIL, CHIPPER

$57.99

$

Usually ships in 3-7 days

0

27

Bear Cat 74571-12

WELDMENT, CHIP DEFLECTOR

$

$

Not available

28

Bear Cat 75363-35

WELDMENT, DISK COVER

$

$

Not available

29

Bear Cat 75550-00

SHIM, BEARING

$24.99

$

Usually ships in 3-7 days

0

30

BLADE, BIG CHIPPER (FOR SERVICE ORDER KIT #76295-00, REPLACEMENT BLADE)

$

$

Not available

30

Bear Cat 76295-00

KIT, 4-1/2 CHIPPER BLADE KIT

$

$

Not available

31

Bear Cat 76274-00

WELDMENT, 4-1/2 CHIPPER DISK
(Superseded to 77797-00)

$1098.99

$

Usually ships in 3-7 days

0

PART NUMBERS FOR EARLIER MODELS (VIN: 0 - 5VJAA00109W001849 SN: 0 - 902825)

$

$

Not available

32

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

33

Bear Cat 15772-00

LOCKNUT, 1/2-13 SECURITY

$36.99

$

In Stock, Qty 8

0

34

Bear Cat 15774-00

SCREW, 1/2 X 1-3/4 FLHD CAP

$3.99

$

In Stock, only 2 left!

0

35

BLADE, BIG CHIPPER (FOR SERVICE ORDER KIT #74744-00, REPLACEMENT BLADE)

$

$

Not available

35

Bear Cat 74744-00

KIT, CHIPPER BLADE KIT

$333.99

$

Usually ships in 3-7 days

0

36

Bear Cat 74923-00

WELDMENT, 4-1/2 PTO DISK
(Superseded to 77798-00)

$1044.99

$

Usually ships in 3-7 days

0
