CH 45390 - Bear Cat 4.5" Chipper, 390cc (SN: A03570 - A09560) Engine - CH45390 Parts Diagram

4.5" Chipper, 390cc

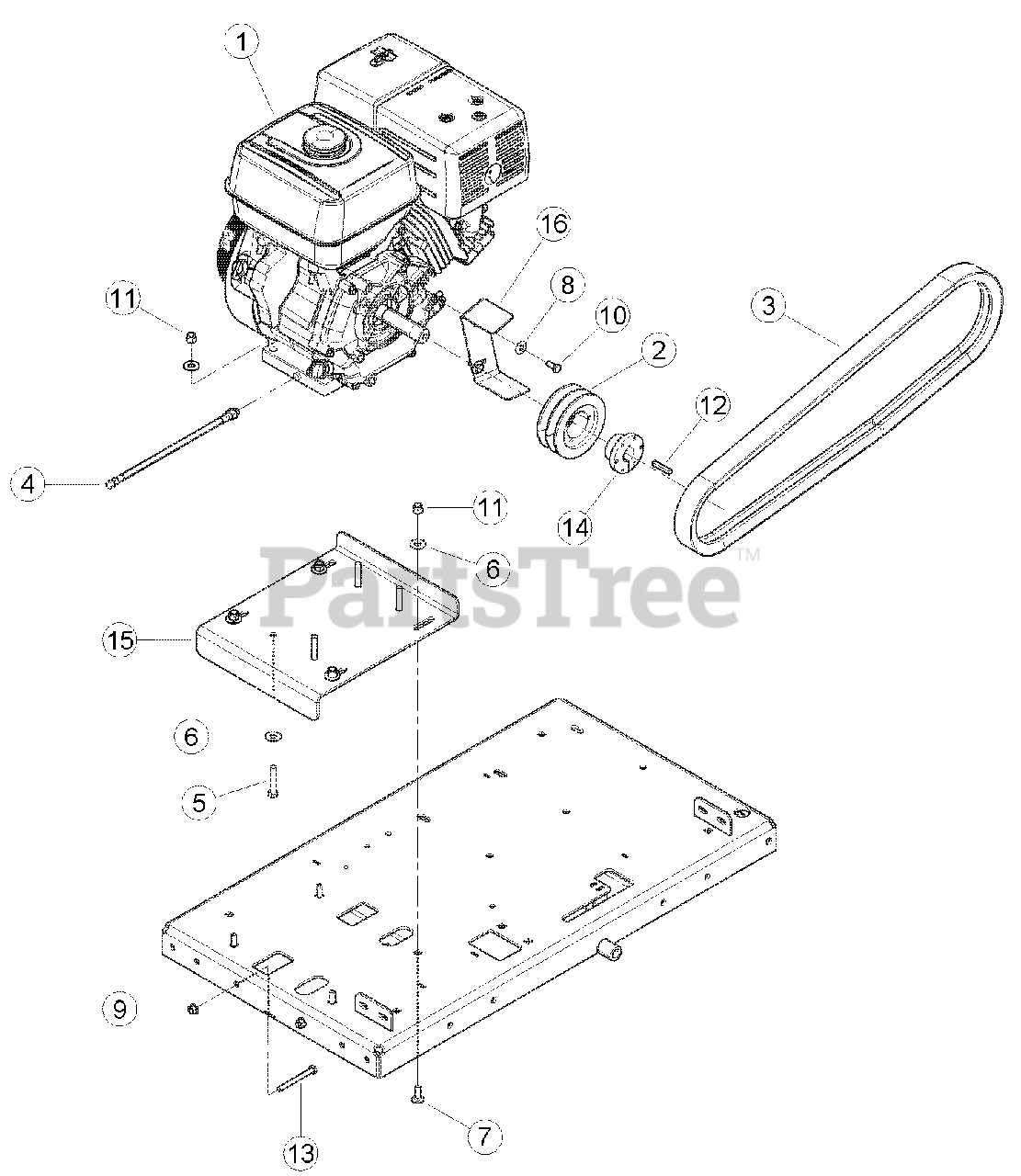

Engine - CH45390 Parts Diagram

  • Title

1

ENGINE, 13 HP HONDA (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER)

$

$

Not available

2

12407

SHEAVE, 2B4.4 SH, QD

$

$

Not available

3

Bear Cat 14770-00

BELT, 2RB61 ARAMID

$208.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14787-00

HOSE ASSY, CRANKCASE DRAIN

$70.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15008

BOLT, 3/8 X 2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15351

NUT, 5/16 SERR FLANGE NC ZP

$

$

Not available

10

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

13

Bear Cat 15715-00

BOLT, 5/16 NC X 3 FULL THD

$1.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16517

BUSHING, SH 1"

$

$

Not available

15

Bear Cat 74471-12

PLATE, 13 HP HONDA ENGINE

$134.99

$

Usually ships in 3-7 days

0

16

Bear Cat 74611-12

GUIDE, BELT

$46.99

$

Usually ships in 3-7 days

0

17

Bear Cat 74471-12

PLATE, 13 HP HONDA ENGINE

$134.99

$

Usually ships in 3-7 days

0

18

Bear Cat 74611-12

GUIDE, BELT

$46.99

$

Usually ships in 3-7 days

0
