CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: B00001 - C09794) PTO Driveline Parts Diagram

4.5" Chipper, 540cc PTO Driven

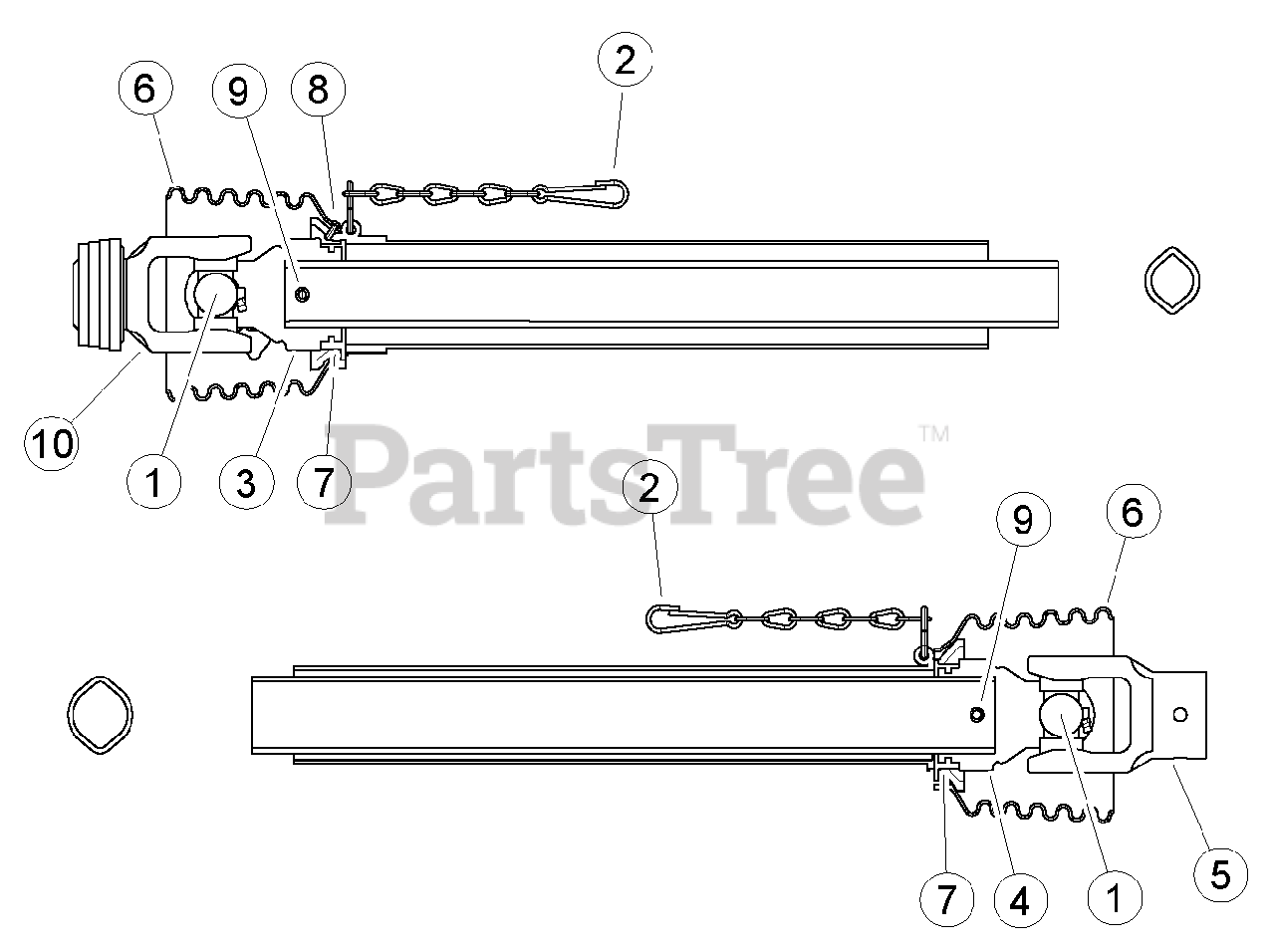

PTO Driveline Parts Diagram

  • Title

1

0883-0120-00

KIT, CROSS & BEARING W-2400

$

$

Not available

2

12209

CHAIN, SAFETY

$

$

Not available

3

Bear Cat 12215

YOKE, INBOARD 1B

$

$

Not available

4

12218

YOKE, INBOARD 2A

$

$

Not available

5

Bear Cat 12219

YOKE, 1-1/2" RND

$232.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12220

CONE, 6 RIB SAFETY

$

$

Not available

7

12223

RING, SC25 BEARING

$

$

Not available

8

Bear Cat 15574

SCREW, WS365305

$

$

Not available

9

15575

PIN, M10 X 80 SPRING

$

$

Not available

10

Bear Cat 32245-00

YOKE, 1-3/8-6 SPLINGE ASGE

$

$

Not available

Bear Cat 12210

DECAL, OUT

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 12211

DECAL, IN

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32248-00

COLLAR, REINFORCING

Note: (NOT SHOWN)

$33.99

$

Usually ships in 3-7 days

0

Bear Cat 32250-00

DECAL, CE MARK

Note: (NOT SHOWN)

$7.49

$

Usually ships in 3-7 days

0

Bear Cat 32251-00

DECAL, EUROPEAN

$16.99

$

Usually ships in 3-7 days

0
