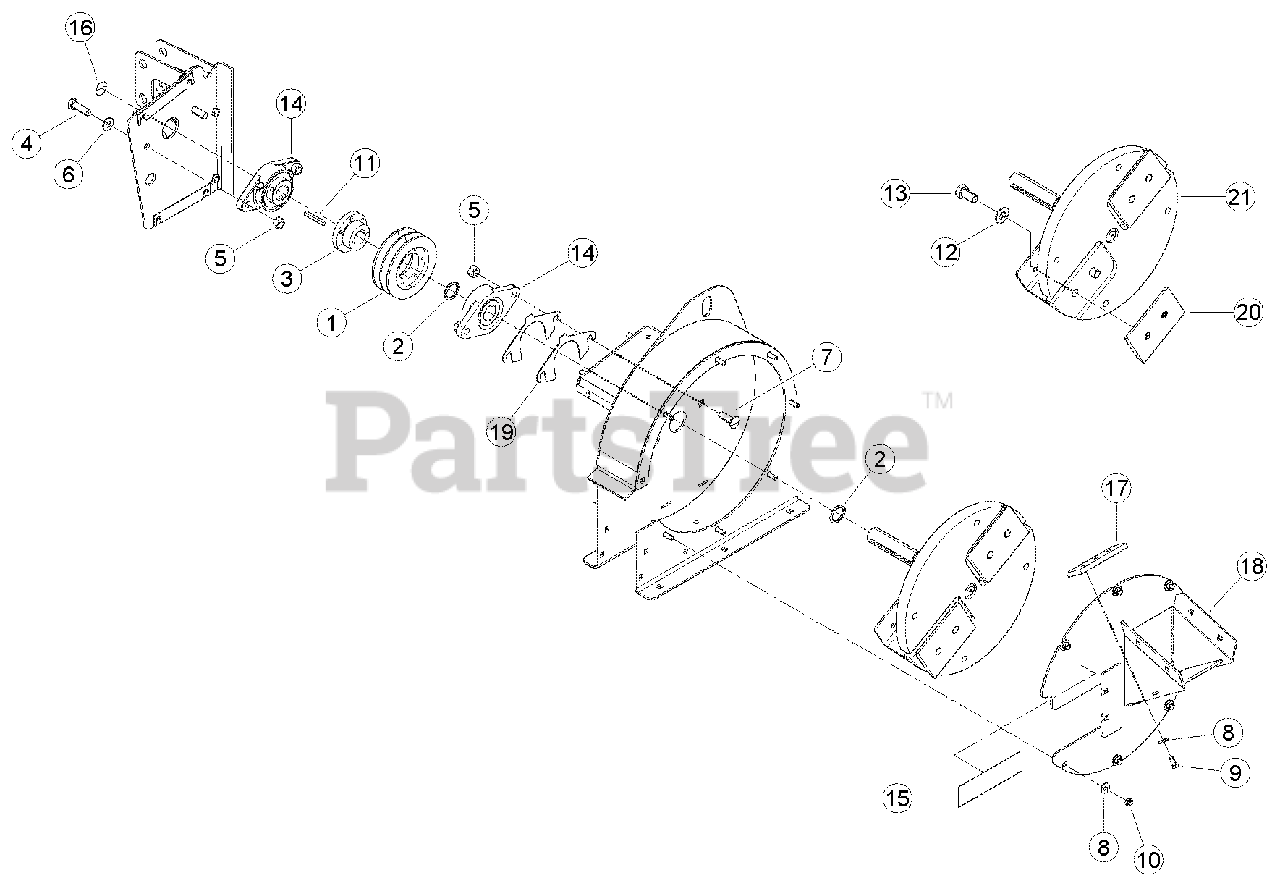

CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: B00001 - C09794) Rotor, Blades & Bearings Parts Diagram

4.5" Chipper, 540cc PTO Driven

Rotor, Blades & Bearings Parts Diagram

  • Title

1

Bear Cat 12145

SHEAVE, 2B4.8 SDS

$120.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14769-00

BUSHING, SDS 1-1/4"

$71.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15391

KEY, 1/4 SQUARE X 2 LONG PLAIN

$

$

Not available

12

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/PATCH

$12.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

15

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

16

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

17

Bear Cat 74529-00

ANVIL, CHIPPER

$57.99

$

Usually ships in 3-7 days

0

18

Bear Cat 75363-35

WELDMENT, DISK COVER

$

$

Not available

19

Bear Cat 75550-00

SHIM, BEARING

$24.99

$

Usually ships in 3-7 days

0

20

BLADE, BIG CHIPPER (REPLACED AND SUPERSEDED. FOR SERVICE ORDERKIT #76295-00, REPLACEMENT BLADE)

$

$

Not available

20

Bear Cat 76295-00

KIT, 4-1/2 CHIPPER BLADE KIT

$

$

Not available

21

Bear Cat 76275-00

WELDMENT, 4-1/2 PTO DISK
(Superseded to 77798-00)

$1044.99

$

Usually ships in 3-7 days

0
