CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Attachments (SN: E02730 - G06530) Parts Diagram

4.5" Chipper, 540cc PTO Driven

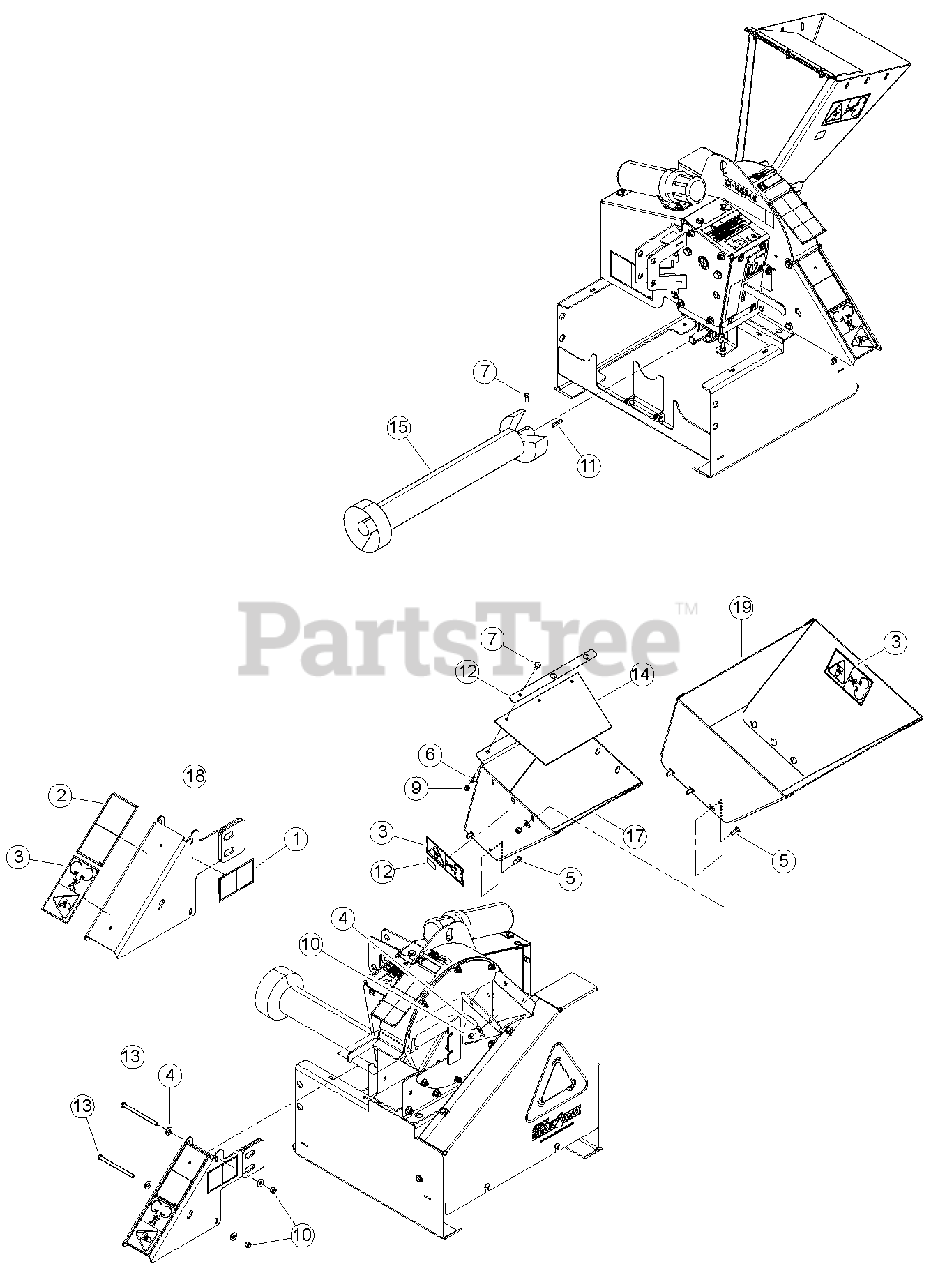

Attachments (SN: E02730 - G06530) Parts Diagram

  • Title

1

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$29.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

4

WASHER, 3/8 FLAT ZP (REPLACED AND SUPERSEDED 15031. FOR SERVICE ORDER PN 15905-00)

$

$

Not available

5

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15256

SCREW, 3/8 X 3/4 SQ HD SET ZP

$

$

Not available

8

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

10

NUT, 3/8 NE NYLOCK ZP (REPLACED AND SUPERSEDED 15388. FOR SERVICE ORDER PN 15905-00)

$

$

Not available

11

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

12

Bear Cat 16753

DECAL, CE APPROVAL

$3.49

$

Usually ships in 3-7 days

0

13

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 14771-00

FLAP, CHIPPER CHUTE

$83.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36407-00

DRIVESHAFT, 540 C/S WS
(Superseded to 71588-00)

$557.99

$

Usually ships in 3-7 days

0

16

Bear Cat 74608-12

STRIP, FLAP RETAINER

$

$

Not available

17

74625-00

ASSEMBLY, HOPPER

Note: (INCLUDES ITEMS 3 & 12)

$

$

Not available

18

Bear Cat 74670-00

ASSEMBLY, DISCHARGE CAP

Note: (INCLUDES ITEMS 1-3)

$318.99

$

Usually ships in 3-7 days

0

19

Bear Cat 74671-00

ASSEMBLY, EURO CHUTE EXT.

Note: (INCLUDES ITEM 3)

$525.99

$

Usually ships in 3-7 days

0
