CH 500 H - Bear Cat 5" Chipper, Skid Steer (SN: B00001 - C07503) Chute (Part 2) Parts Diagram

5" Chipper, Skid Steer

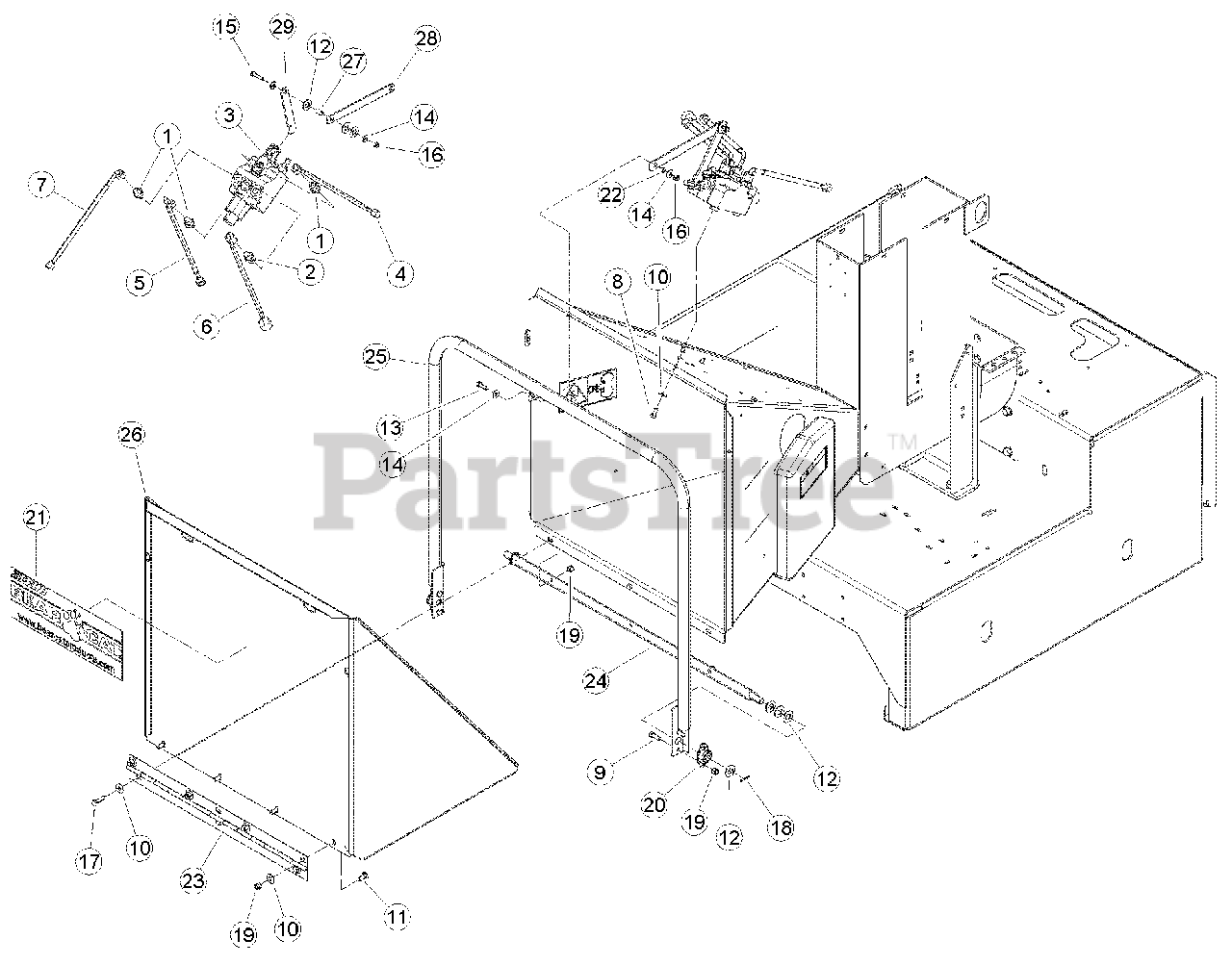

Chute (Part 2) Parts Diagram

  • Title

1

Bear Cat 12615

ADAPTER, -8 MORING / -8 MJIC

$

$

Not available

2

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

3

Bear Cat 13897-00

VALVE, 4 POSITION W/DETENTS

$2117.99

$

Usually ships in 3-7 days

0

4

13917-00

HOSE ASSY, -8 FMJIC / -8 FMJICSW 90 DEG. X 37

$

$

Not available

5

Bear Cat 13918-00

HOSE ASSY, -8 FMJIC / -8 FMJICSW 90 DEG. X 35

$96.99

$

Usually ships in 3-7 days

0

6

Bear Cat 13919-00

HOSE ASSY, -10 FMJIC / -8 FMJICSW 90 DEG. X 53

$117.99

$

Usually ships in 3-7 days

0

7

13920-00

HOSE ASSY, -10 FMJIC / -8 FMJICSW 90 DEG. X 82

$

$

Not available

8

Bear Cat 15005

BOLT, 3/8 X 3/4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

11

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

12

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

13

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

15

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

18

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

19

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

20

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT, 5/8"

$34.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

22

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

23

Bear Cat 72568-12

HINGE, EXTENSION TRAY

$

$

Not available

24

72917-12

WELDMENT, CONTROL PIVOT

$

$

Not available

25

Bear Cat 72919-12

WELDMENT, CONTROL ARM

$

$

Not available

26

Bear Cat 72921-12

WELDMENT, CHUTE EXTENTION TRAY

$644.99

$

Usually ships in 3-7 days

0

27

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

28

Bear Cat 73670-12

LEVER, VALVE CONTROL

$

$

Not available

29

Bear Cat 73691-12

LINK, VALVE CONTROL

$

$

Not available
