CH 5540 - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C08854) Idler Parts Diagram

5" Chipper, 540cc PTO Driven

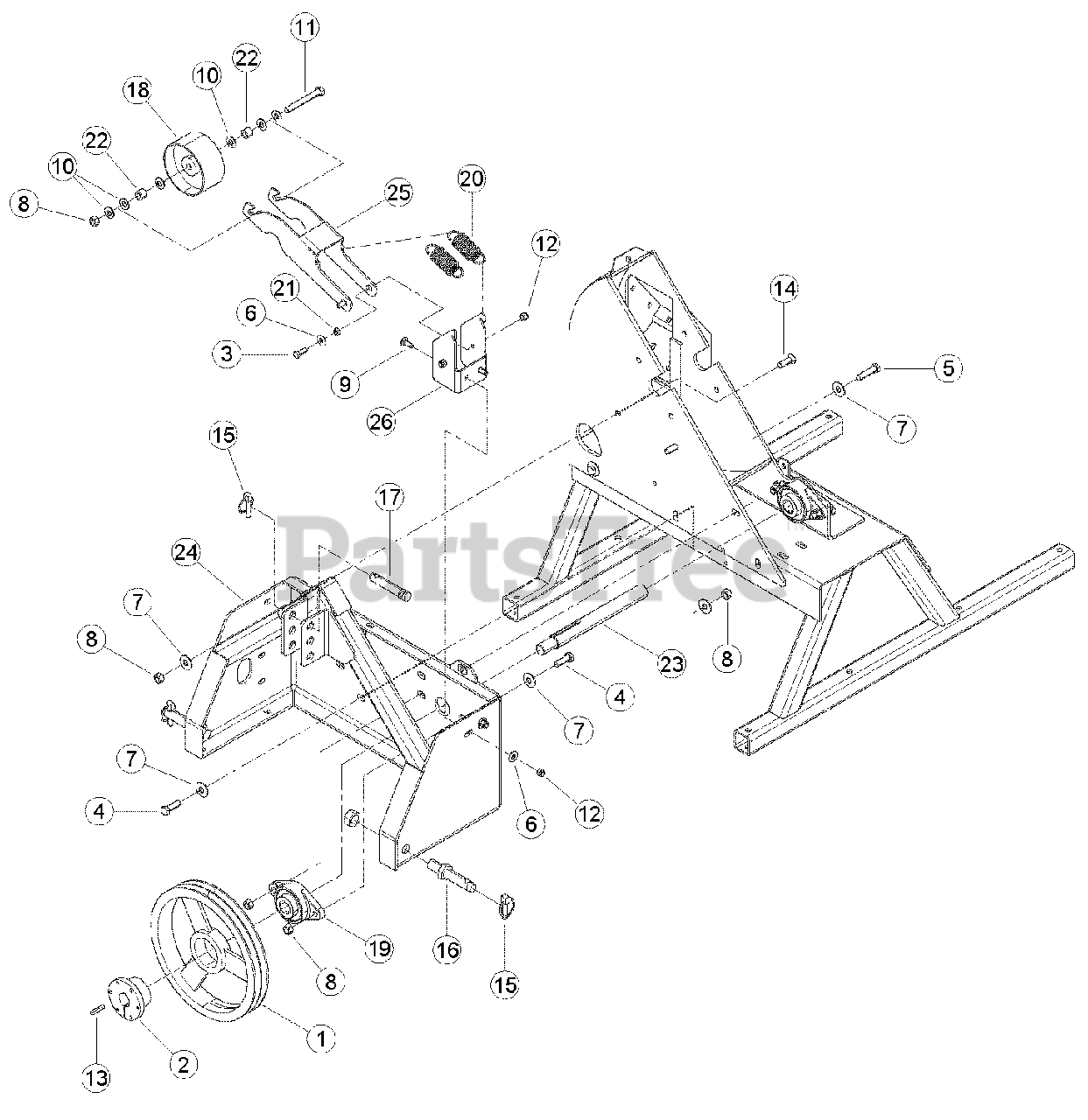

Idler Parts Diagram

  • Title

1

Bear Cat 12126

SHEAVE, 2B 12.4" SK

$406.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12437

BUSHING, SK 1-1/4"

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

5

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

9

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

11

15174

BOLT, 1/2 X 4 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

14

Bear Cat 15571

SCREW, 1/2 X 1-1/2 FLT HD SKT

$

$

Not available

15

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

16

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5" LONG

$24.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2" LONG

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16682

BEARING, 1-1/4" DIA. 2 BOLT FLANGE

$

$

Not available

20

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

21

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

22

Bear Cat 70968

SPACER, .81 X .620

$17.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72472

JACKSHAFT, PTO CHIPPER

$81.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75034-35

WELDMENT, CHIPPER HITCH

$

$

Not available

25

Bear Cat 75052-12

ARM, INSIDE IDLER

$

$

Not available

26

Bear Cat 75053-12

BRACKET, INSIDE IDLER ARM MOUNTING

$

$

Not available
