CH 5540 - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Housing (B) (E01244 - CURRENT) Parts Diagram

5" Chipper, 540cc PTO Driven

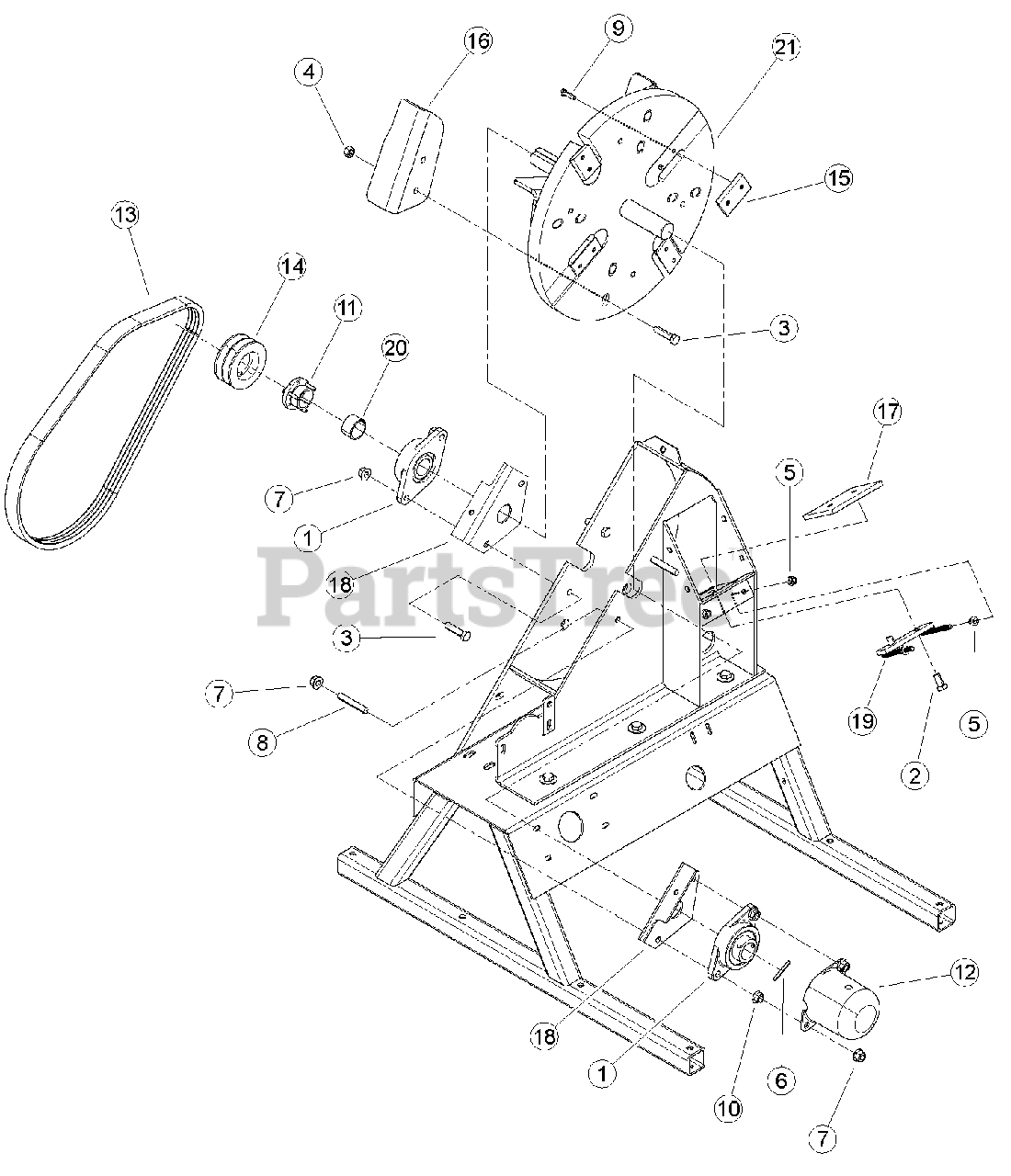

Housing (B) (E01244 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$87.99

$

Usually ships in 3-7 days

0

2

15012

BOLT, 1/2 X 1 GR5 HEX CAPSCREW ZP

$

$

Not available

3

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

6

Bear Cat 15137

SPRINGPIN, 1/4 X 2" LG

$0.99

$

Usually ships in 3-7 days

0

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 15481

STUD, 1/2"-13 X 3"LG B7 ZP

$18.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15565

BOLT, 5/16 X 1-1/4 HHD GR8 PATCH

$

$

Not available

10

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

11

Bear Cat 16016

BUSHING, SH 1-1/2"

$63.99

$

Usually ships in 3-7 days

0

12

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

13

Bear Cat 32883-00

BELT, 2RBX56

$165.99

$

Usually ships in 3-7 days

0

14

Bear Cat 32899-00

SHEAVE, 2B 3.8 SH

$88.99

$

Usually ships in 3-7 days

0

15

Bear Cat 70739

BLADE, TWO EDGE TOOL STEEL (FOR SERVICE ORDER KIT 72493)

$76.99

$

Usually ships in 3-7 days

0

16

Bear Cat 71370-00

PADDLE, 5" CHIPPER

$74.99

$

Usually ships in 3-7 days

0

17

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

18

Bear Cat 72433-12

PLATE, BEARING MOUNT

$

$

Not available

19

Bear Cat 72446-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

20

Bear Cat 77734-12

SPACER, 1-3/4 X 9/16 X .120

$

$

Not available

21

Bear Cat 77757-00

WELDMENT, 5" CHIPPER DISK
(Superseded to 76789-00)

$1811.99

$

Usually ships in 3-7 days

0
