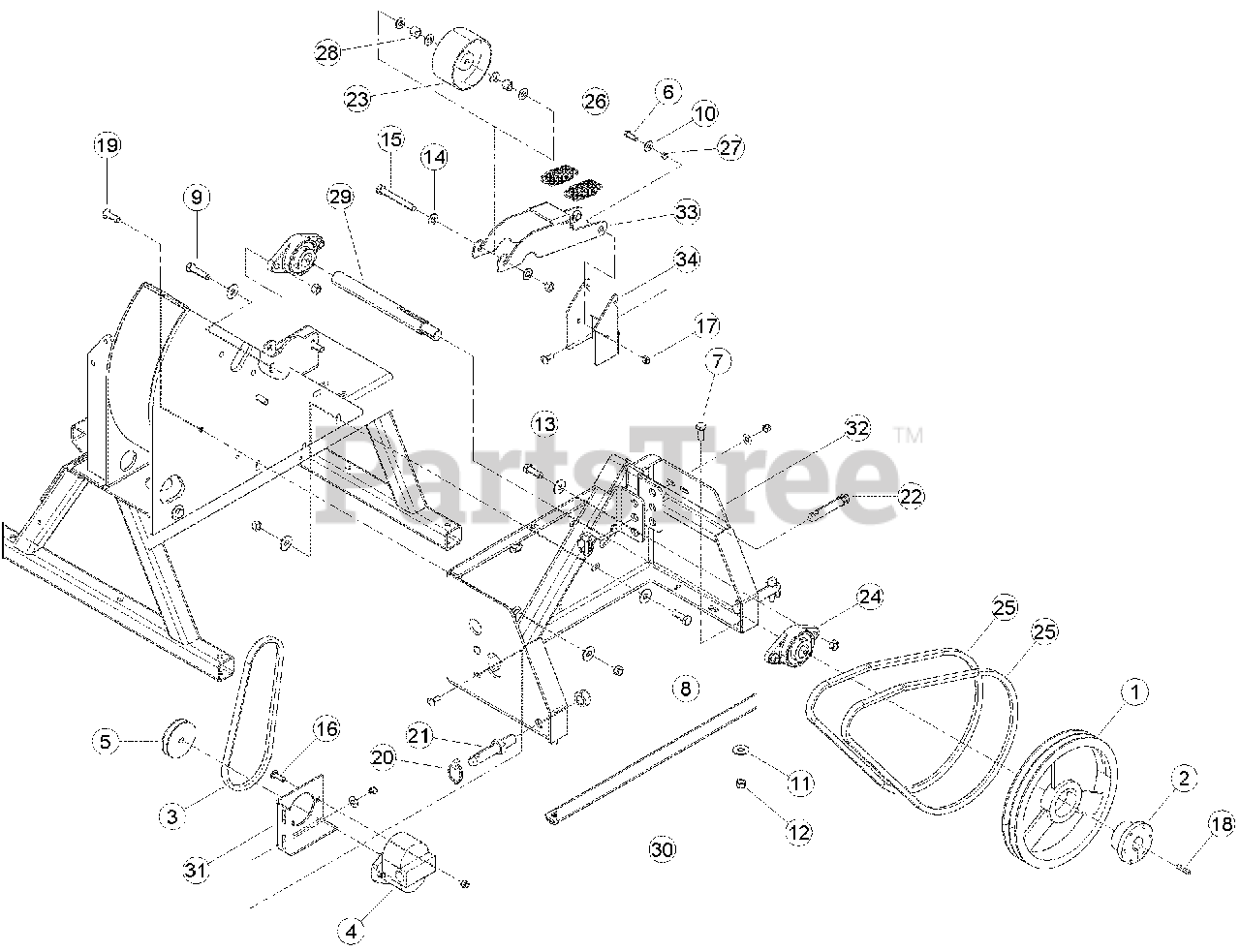

CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) Belt Housing Parts Diagram

5" Chipper, 540cc PTO Driven

Belt Housing Parts Diagram

  • Title

1

Bear Cat 12126

SHEAVE, 2B12.4 SK

$427.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12437

BUSHING, SK 1-1/4"

$

$

Not available

3

Bear Cat 12660

BELT, 4L350

$30.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12661

PUMP, PTO HYDRAULIC FEED

$853.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12662

PULLET, 3-1/2 X 5/8 A

$

$

Not available

6

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

7

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

11

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

13

15057

BOLT, 3/8 X 1 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

15

15174

BOLT 1/2 X 4 HEX HD GR5 ZP

$

$

Not available

16

15378

BOLT, 3/8 X 1-1/4 CRG GR5 ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

19

Bear Cat 15571

SCREW, 1/2 X 1-1/2 FLAT HD SKT

$

$

Not available

20

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

21

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5 LONG

$27.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2 LONG

$15.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16230

PULLEY, IDLER 5 X 2.50

$90.99

$

Usually ships in 3-7 days

0

24

Bear Cat 16682

BEARING, 1-1/4" 2 BOLT FLANGE

$

$

Not available

25

Bear Cat 17055

V-BELT, BX-56 SINGLE

$

$

Not available

26

Bear Cat 17415

SPRING, 1.25 OD. X 3.50 LG X .148 WD

$

$

Not available

27

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

28

Bear Cat 70968

SPACER, .81 X .620

$18.99

$

Usually ships in 3-7 days

0

29

Bear Cat 72472

JACKSHAFT, PTO CHIPPER

$87.99

$

Usually ships in 3-7 days

0

30

Bear Cat 72885-12

BRACE, 3 PT. BOTTOM

$

$

Not available

31

73036-12

WELDMENT, PUMP MOUNT

$

$

Not available

32

Bear Cat 75034-35

WELDMENT, CHIPPER HITCH

$

$

Not available

33

Bear Cat 75052-12

ARM, INSIDE IDLER

$

$

Not available

34

Bear Cat 75053-12

BRACKET, INSIDE IDLER ARM MOUNTING

$

$

Not available

Bear Cat 15256

SCREW, 3/8 X 3/4 SQ HD SET ZP

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 16961

DRIVESHAFT, 540 C/S WS

Note: (NOT SHOWN)

$

$

Not available
