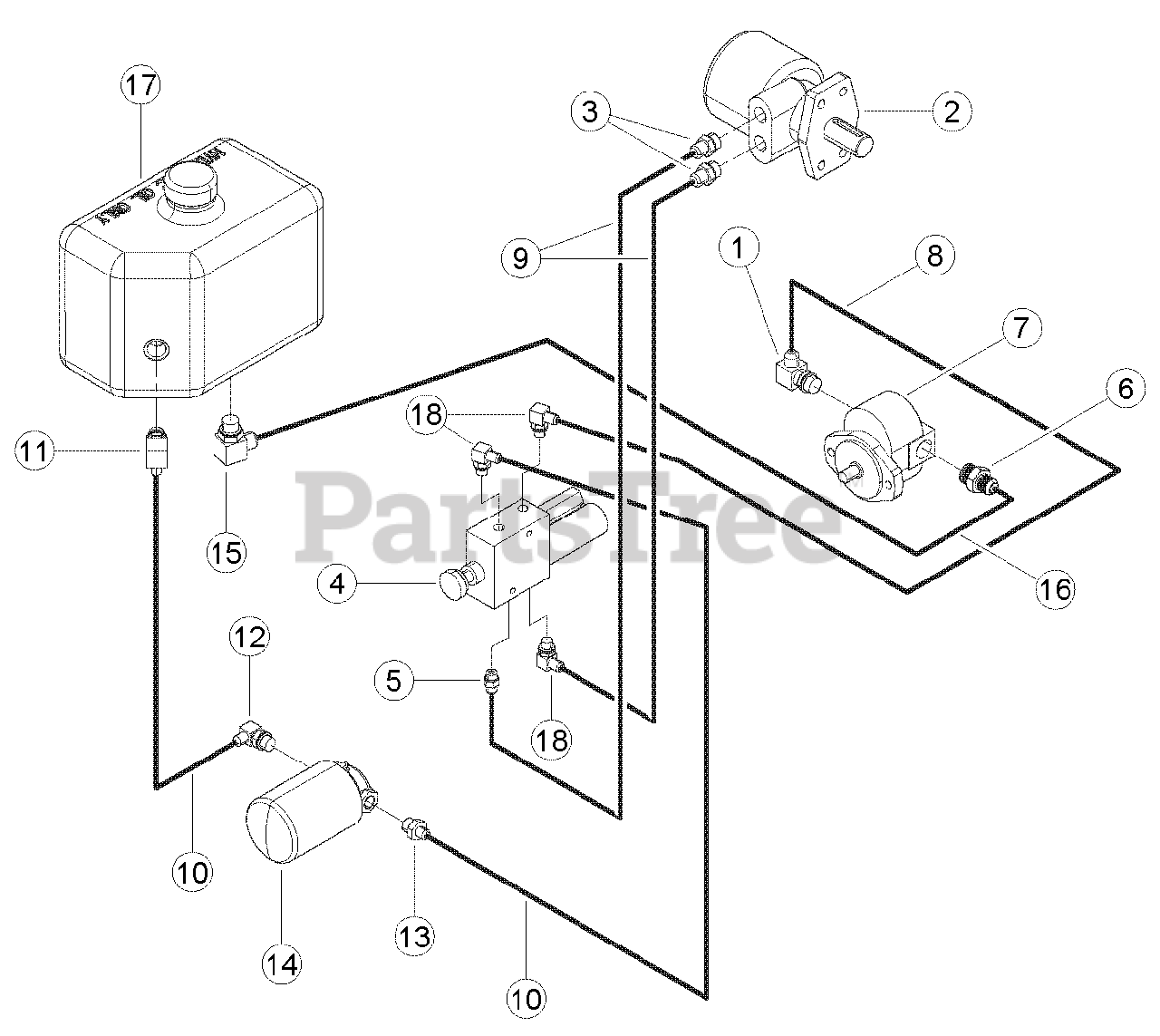

CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) Hydraulic Layout Parts Diagram

5" Chipper, 540cc PTO Driven

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10 MORING / -8 MJIC 90 DEG.

$

$

Not available

2

Bear Cat 12558

MOTOR, 32.7 CU IN. HYDRAULIC

$1346.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12626

ADAPTER, -10 MORING / -8 MJIC

$

$

Not available

4

Bear Cat 12646

VALVE, HYDRAULIC CONTROL

$1497.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12647

ADAPTER, -6 MORING / -6 MJIC

$

$

Not available

6

Bear Cat 12650

ADAPTER, -12 MORING / -10 MJIC

$9.99

$

Usually ships in 3-7 days

0

7

Bear Cat 12661

PUMP, HYDRAULIC FEED

$853.99

$

Usually ships in 3-7 days

0

8

Bear Cat 12663

HOSE ASSEMBLY, -8 FMJ / -6 FMJ X 38

$78.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12685

HOSE ASSEMBLY, -8 FMJ / -6 FMJ X 31

$54.99

$

Usually ships in 3-7 days

0

10

Bear Cat 12686

HOSE ASSEMBLY, -6 FMJ / -6 FMJ X 30

$70.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12772

ADAPTER, -10 MORING / -6 MJIC 90 DEG.

$37.99

$

Usually ships in 3-7 days

0

12

12852

ADAPTER, -8 MORING / -6 MJIC 90 DEG.

$

$

Not available

13

13404-00

ADAPTER, -8 MORING / -6 MJIC

$

$

Not available

14

Bear Cat 16588

FILTER, SPIN-ON

$148.99

$

Usually ships in 3-7 days

0

15

16638

ADAPTER, -10 MORING / -10 MJIC 90 DEG.

$

$

Not available

16

Bear Cat 16684

HOSE ASSEMBLY, -10 FMJSW 90 / -10 FMJ X 42

$

$

Not available

17

Bear Cat 36322-00

TANK, HYDRAULIC

$374.99

$

Usually ships in 3-7 days

0

18

Bear Cat 41289

ADAPTER, -6 MORING / -6 MJIC 90 DEG.

$

$

Not available
