CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) PTO Driveshaft Parts Diagram

5" Chipper, 540cc PTO Driven

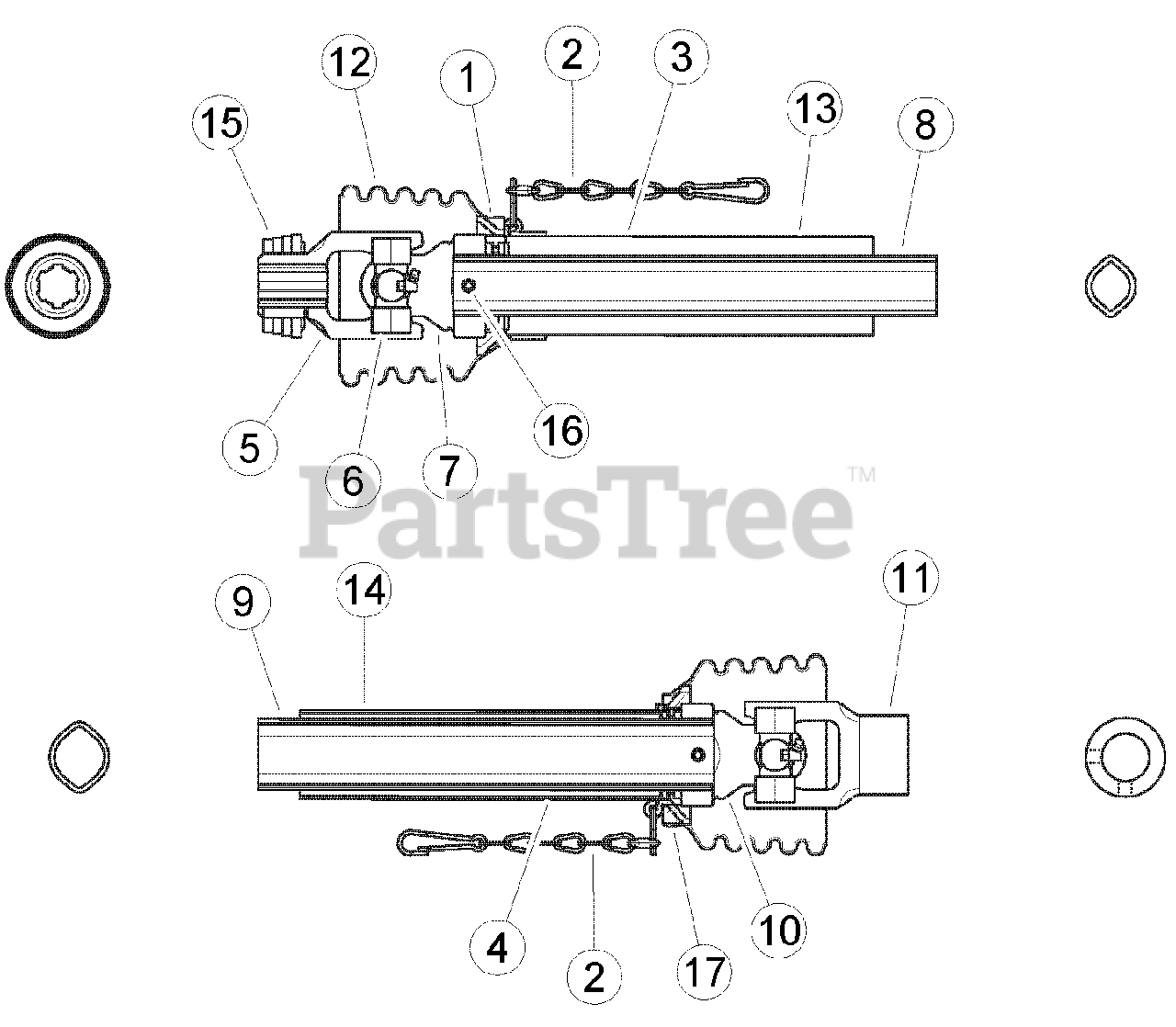

PTO Driveshaft Parts Diagram

  • Title

1

Bear Cat 12208

BEARING, RING SC15

$29.99

$

Usually ships in 3-7 days

0

2

12209

SAFETY CHAIN

$

$

Not available

3

Bear Cat 12210

DECAL, OUT

$

$

Not available

4

Bear Cat 12211

DECAL, IN

$

$

Not available

5

Bear Cat 12225

YOKE, 3/8 - 6 SPL. ASGE

$139.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12226

CROSS & BEARING KIT

$91.99

$

Usually ships in 3-7 days

0

7

Bear Cat 12227

YOKE, INBOARD OV

$121.99

$

Usually ships in 3-7 days

0

8

Bear Cat 12228

INNER PROFILE OV

$108.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12229

OUTER PROFILE I

$

$

Not available

10

Bear Cat 12230

YOKE, INBOARD I

$114.99

$

In Stock, only 1 left!

0

11

Bear Cat 12231

YOKE

$181.99

$

In Stock, only 1 left!

0

12

Bear Cat 12232

SHIELD, CONE 4 RIB

$58.99

$

Usually ships in 3-7 days

0

13

Bear Cat 12233

SHIELD, OUTER TUBE OVL.

$93.99

$

Usually ships in 3-7 days

0

14

Bear Cat 12234

SHIELD, INNER TUBE RND

$124.99

$

Usually ships in 3-7 days

0

15

Bear Cat 12235

KIT, RETAINING RING / TRACTOR SIDE
(Superseded to 12212)

$49.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15573

PIN, SPRING 10 X 65

$5.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15574

SCREW

$

$

Not available
