CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Chute (A) CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

5" Chipper, 540cc PTO Driven

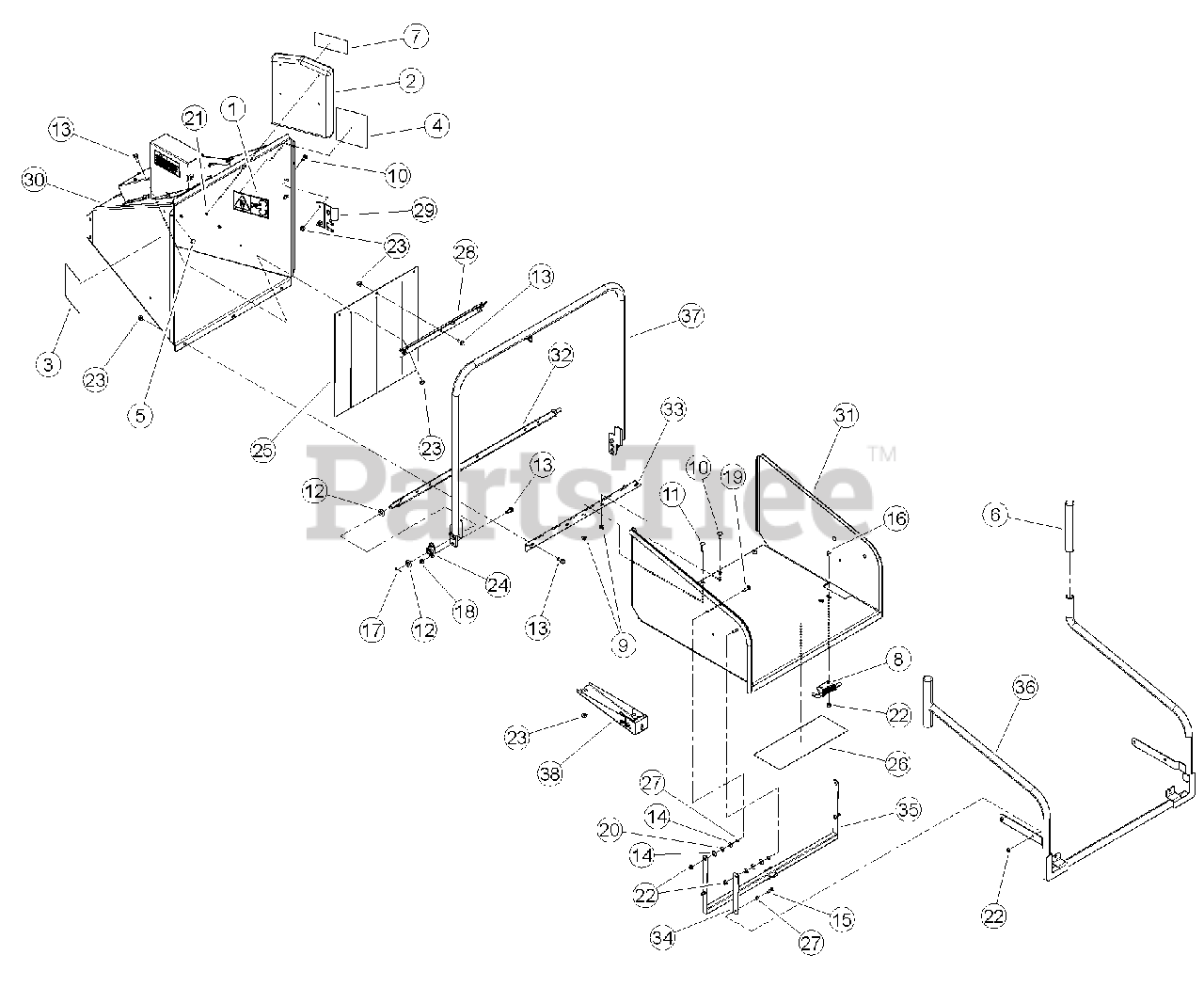

Chute (A) CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

  • Title

1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

4

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

9

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

11

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

12

15129

WASHER, 5/8" SAE FLAT ZP

$

$

Not available

13

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

15

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

16

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 NC ZP CRG

$

$

Not available

17

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

18

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15398

BOLT, 5/16 X 1-1/4" GR5 ZP CRG

$

$

Not available

20

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

21

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

22

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

23

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

24

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT 5/8"

$34.99

$

Usually ships in 3-7 days

0

25

30324-00

FLAP, 5 INCH CHUTE

$

$

Not available

26

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

27

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

28

70753-12

SUPPORT, 5 INCH CHIPPER FLAP

$

$

Not available

29

71058-35

PLATE, TRAY STOP

$

$

Not available

30

71408-35

WELDMENT, 5" CHIPPER CHUTE

$

$

Not available

31

71415-12

WELDMENT, 5" XE TRAY

$

$

Not available

32

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

33

Bear Cat 72568-12

HINGE, EXTENSION TRAY

$

$

Not available

34

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

35

75316-12

WELDMENT, PIVOT TUBE

$

$

Not available

36

75317-35

WELDMENT, SAFETY BAR

$

$

Not available

37

Bear Cat 75318-12

WELDMENT, CONTROL ARM

$309.99

$

Usually ships in 3-7 days

0

38

77534-12

SHIELD, SAFETYBAR SWITCH

$

$

Not available
