CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Feed Roller Parts Diagram

5" Chipper, 540cc PTO Driven

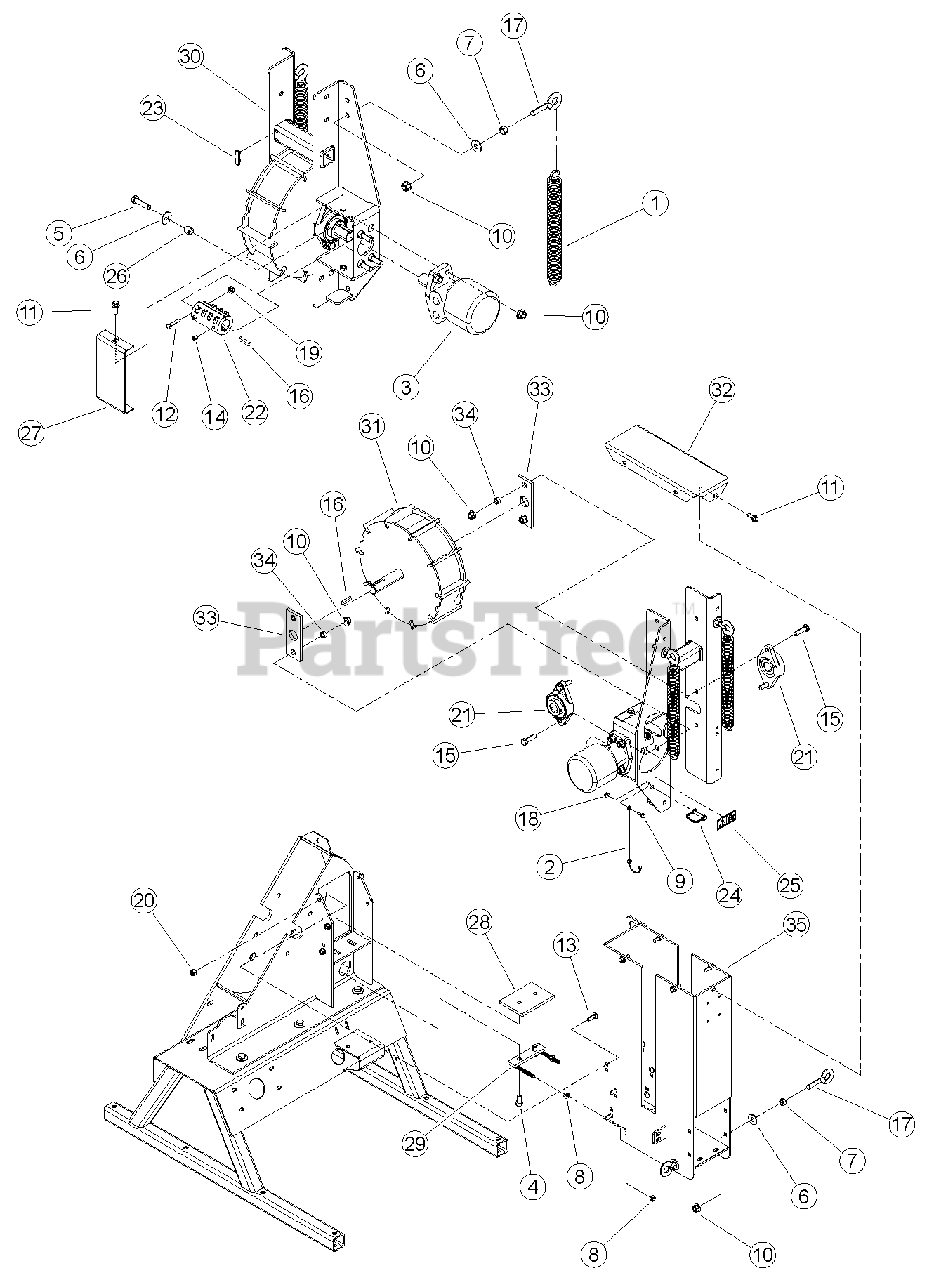

Feed Roller Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

Bear Cat 12558

MOTOR, 32.7 CU IN HYDRAULIC

$1346.99

$

Usually ships in 3-7 days

0

4

15012

BOLT, 1/2 X 1 GR5 HEX CPSCREW ZP

$

$

Not available

5

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$1.49

$

Usually ships in 3-7 days

0

6

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15043

NUT, 1/2" HEX NC ZP

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

9

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

12

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

13

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

14

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

15

15478

BOLT, 1/2 X 1 3/4 GR5 HCPS NC ZP

$

$

Not available

16

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$1.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$33.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 16682

BEARING 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

22

Bear Cat 16683

COUPLER 1-1/4 SHAFT

$

$

Not available

23

17434

WEAR PAD,STD.SPRING HD FRONT

$

$

Not available

24

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LGH

$

$

Not available

25

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

26

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

27

Bear Cat 71335

SHIELD, COUPLER

$48.99

$

Usually ships in 3-7 days

0

28

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

29

Bear Cat 72446-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

30

72907-12

WELDMENT, ROLLER SLIDE

$

$

Not available

31

Bear Cat 72911-12

WELDMENT, TOP GRAB ROLLER

$

$

Not available

32

Bear Cat 72915-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

33

Bear Cat 73248

BEARING, SLIDE

$41.99

$

Usually ships in 3-7 days

0

34

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

35

Bear Cat 73253-35

WELDMENT, ROLLER SUPPORT 5 IN

$

$

Not available
