CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Switch Box CE COMPLIANT (SN: D00001 - E06501) Parts Diagram

5" Chipper, 540cc PTO Driven

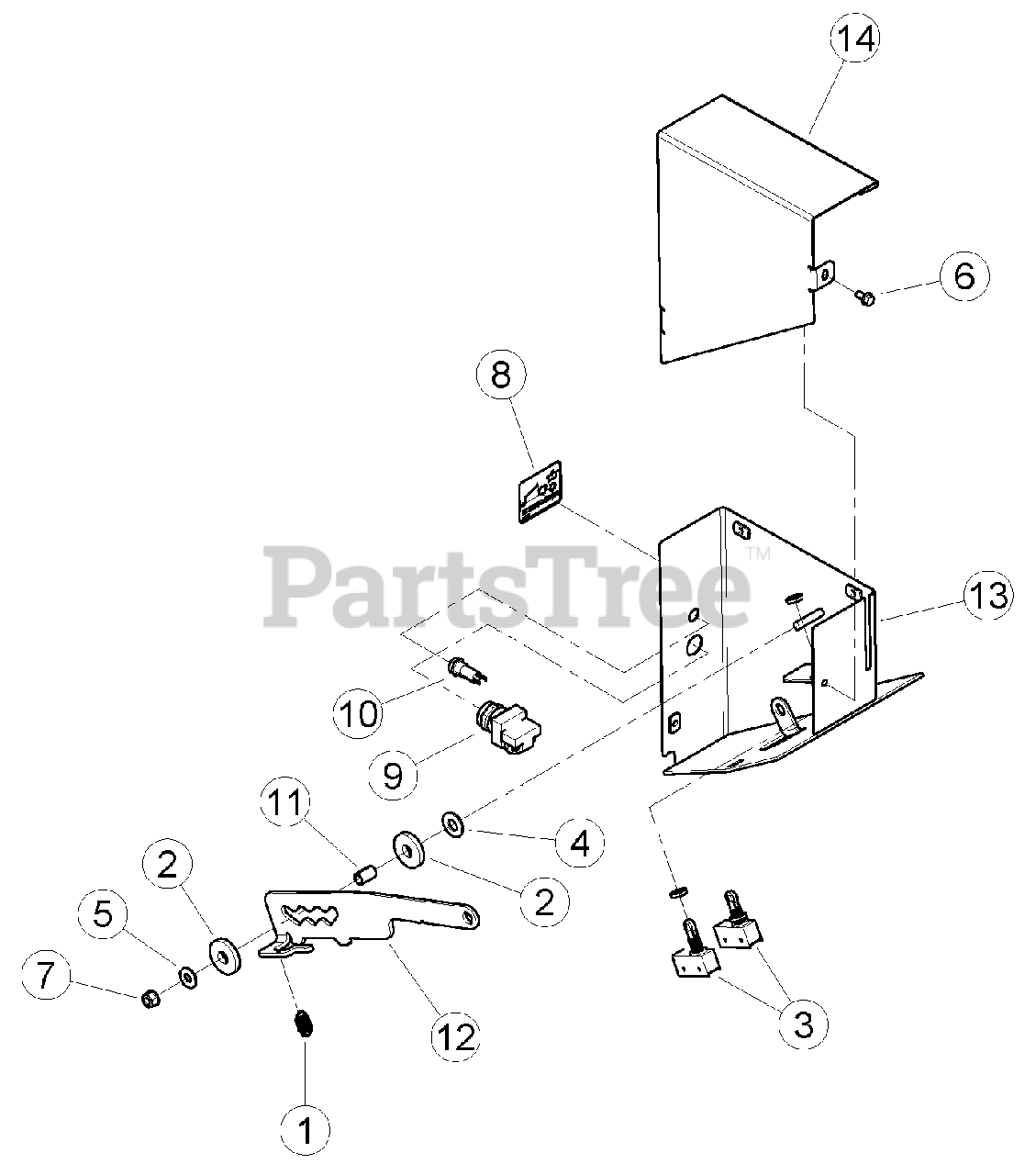

Switch Box CE COMPLIANT (SN: D00001 - E06501) Parts Diagram

  • Title

1

Bear Cat 12620

SPRING, CONTROL BAR

$25.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHMW SPACER .515ID-1.50OD

$10.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13717-00

SWITCH, FEED CONTROL

$111.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

6

15344

BOLT, 1/4 X 1/2 SERR FLANGE GR5 ZP

$

$

Not available

7

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

8

Bear Cat 18555-00

DECAL, RESET/OVERRIDE

$39.99

$

Usually ships in 3-7 days

0

9

Bear Cat 32376-00

SWITCH, MOMENTARY IP65 NORMALLY OFF

$50.99

$

Usually ships in 3-7 days

0

10

Bear Cat 36356-00

LED, TRI-COLOR 12V 3-TERMINAL BASE

$82.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73064

SPACER, .50 X .775

$17.99

$

Usually ships in 3-7 days

0

12

Bear Cat 73287-12

BAR, SWITCH CONTROL

$

$

Not available

13

77529-12

WELDMENT, SWITCH BOX

$

$

Not available

14

Bear Cat 77531-12

PLATE, SWITCH BOX

$77.99

$

Usually ships in 3-7 days

0
