CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: G08139 - H04410) Belt Housing Parts Diagram

5" Chipper, 540cc PTO Driven

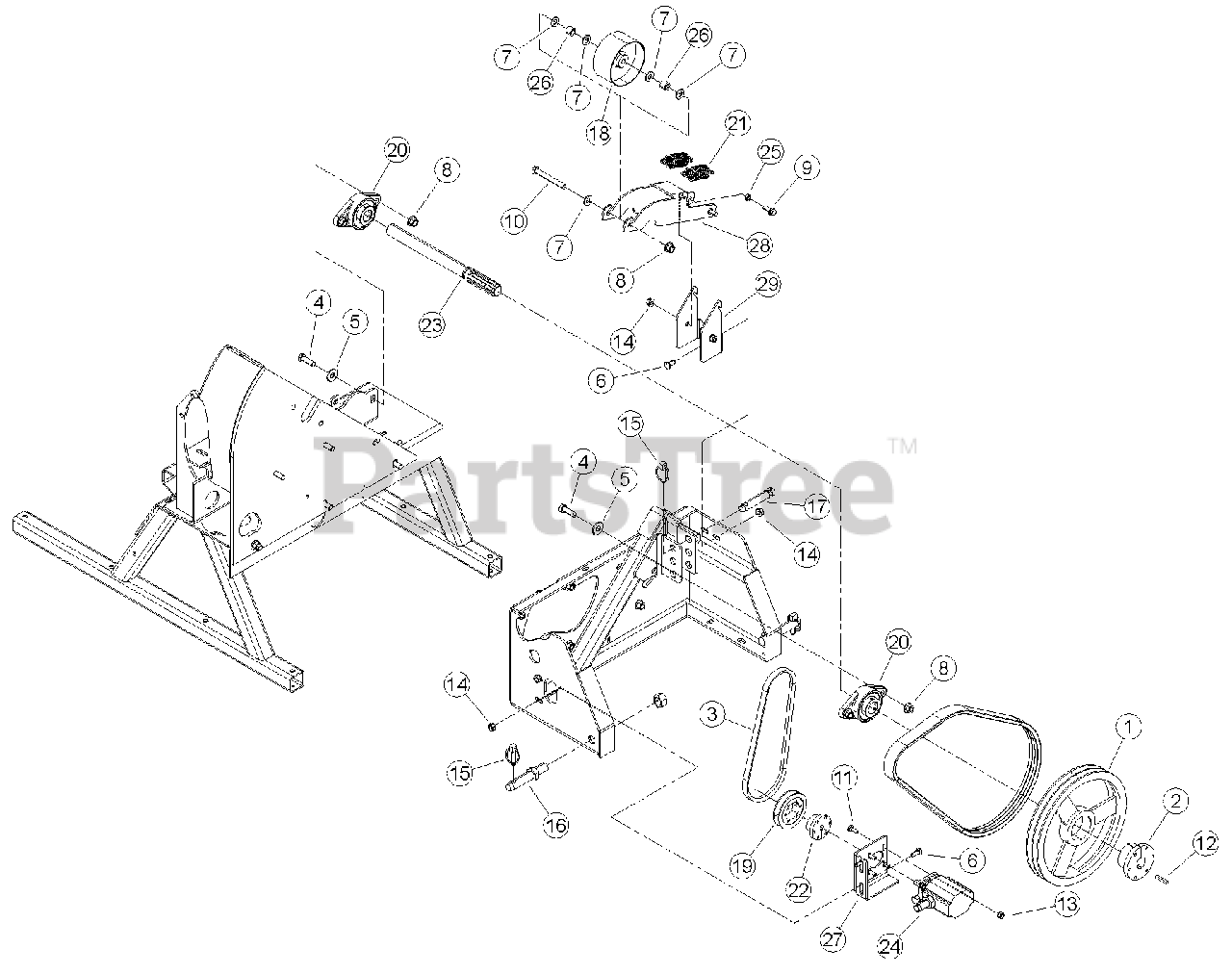

Belt Housing Parts Diagram

  • Title
1

Bear Cat 12126

SHEAVE, 2B12.4 SK

$406.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12437

BUSHING, SK 1-1/4"

$

$

Not available

3

Bear Cat 12660

BELT, 4L350

$29.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

5

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

Bear Cat 15097

WASHER, 1/2" SAE FLAT ZP

$

$

Not available

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

15174

BOLT, 1/2 X 4 HEX CPS G5 ZP

$

$

Not available

11

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

12

Bear Cat 15418

KEY, 1/4 SQ X 1-1/2 LG PLAIN

$

$

Not available

13

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

14

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

16

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5" LG

$24.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2" LG

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16230

PULLEY, IDLER 5 X 2.50"

$85.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16499

SHEAVE, 1B3.6 SH

$66.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

21

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

22

Bear Cat 18597-00

BUSHING, SH 1/2"

$58.99

$

Usually ships in 3-7 days

0

23

Bear Cat 31154-00

SHAFT, 6 SPLINE 5" CHIPPER

$312.99

$

Usually ships in 3-7 days

0

24

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

25

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

26

Bear Cat 70968

SPACER, .81 X .620

$17.99

$

Usually ships in 3-7 days

0

27

Bear Cat 72560-12

WELDMENT, PUMP MOUNT

$

$

Not available

28

Bear Cat 75052-12

ARM, INSIDE IDLER

$

$

Not available

29

Bear Cat 75053-12

BRACKET, INSIDE IDLER ARM MOUNTING

$

$

Not available

30979-00

DRIVELINE, 18.1/24.5" 1-3/8 SPL

Note: (NOT SHOWN)

$

$

Not available
