CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) Base Parts Diagram

5" Chipper, 540cc PTO Driven

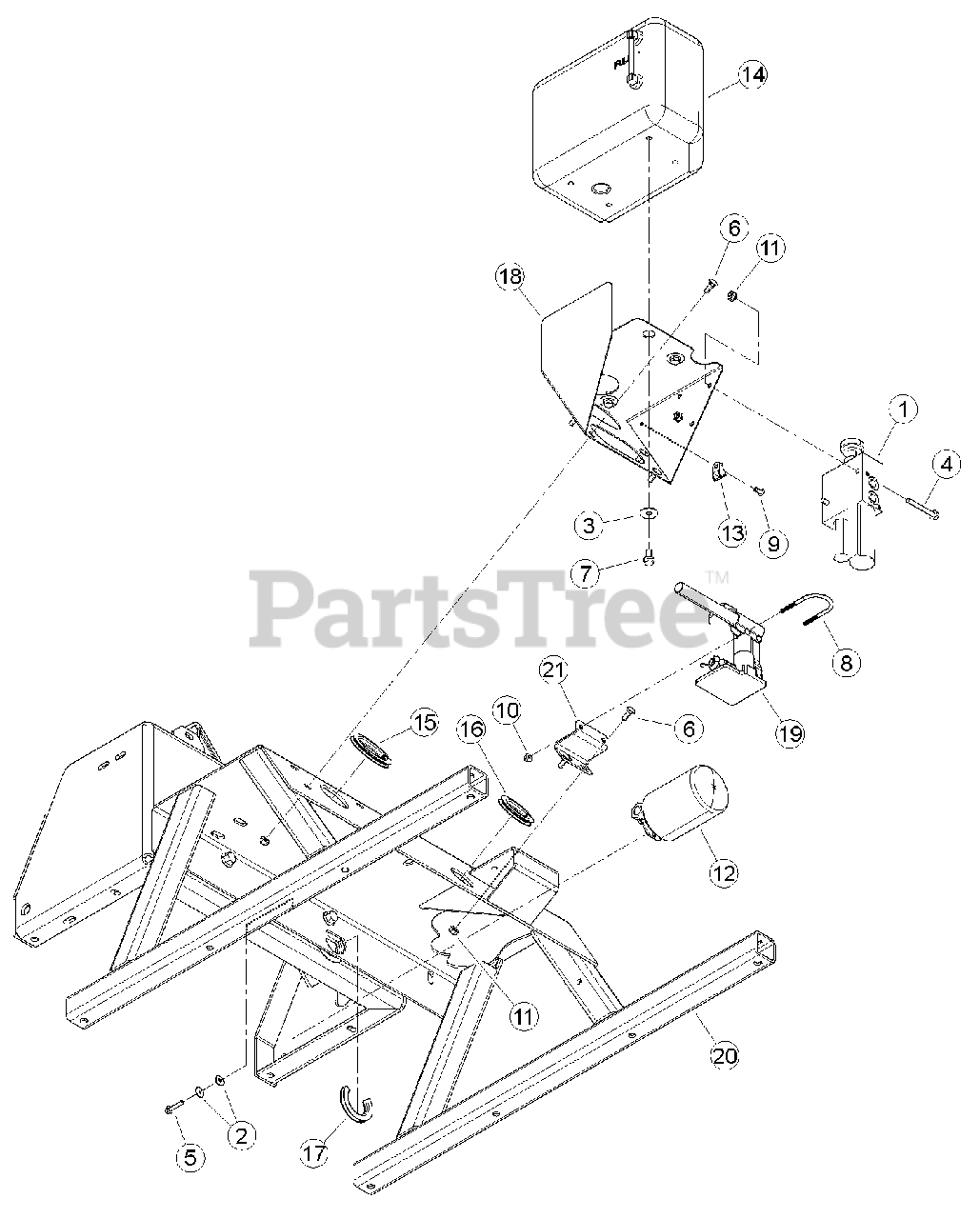

Base Parts Diagram

  • Title
1

Bear Cat 12646

VALVE, HYDRAULIC CONTROL

$1425.99

$

Usually ships in 3-7 days

0

2

15030

WASHER, 1/4" FLAT ZP

$

$

Not available

3

Bear Cat 15041

WASHER, 3/8" FENDER ZP

$

$

Not available

4

15138-00

BOLT, 5/16 X 2-1/2 FLANGE NC

$

$

Not available

5

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

6

Bear Cat 15349

BOLT, 5/16 X 7/8" GR5 CRG NC ZP

$

$

Not available

7

15617

BOLT, 3/8 X 3/4" SERRATED FLANGE

$

$

Not available

8

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

13

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

14

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

15

70264-00

TRIM, SLOT EDGE COVER

$

$

Not available

16

Bear Cat 72559-00

TRIM, SLOT EDGE COVER

$45.99

$

Usually ships in 3-7 days

0

17

Bear Cat 72561-00

TRIM, SLOT EDGE COVER

$44.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73032-12

WELDMENT, RESERVOIR BASE

$

$

Not available

19

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

20

74243-12

WELDMENT, PTO STAND

$

$

Not available

21

75028-12

MOUNT, JACK

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
