CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) Shields Parts Diagram

5" Chipper, 540cc PTO Driven

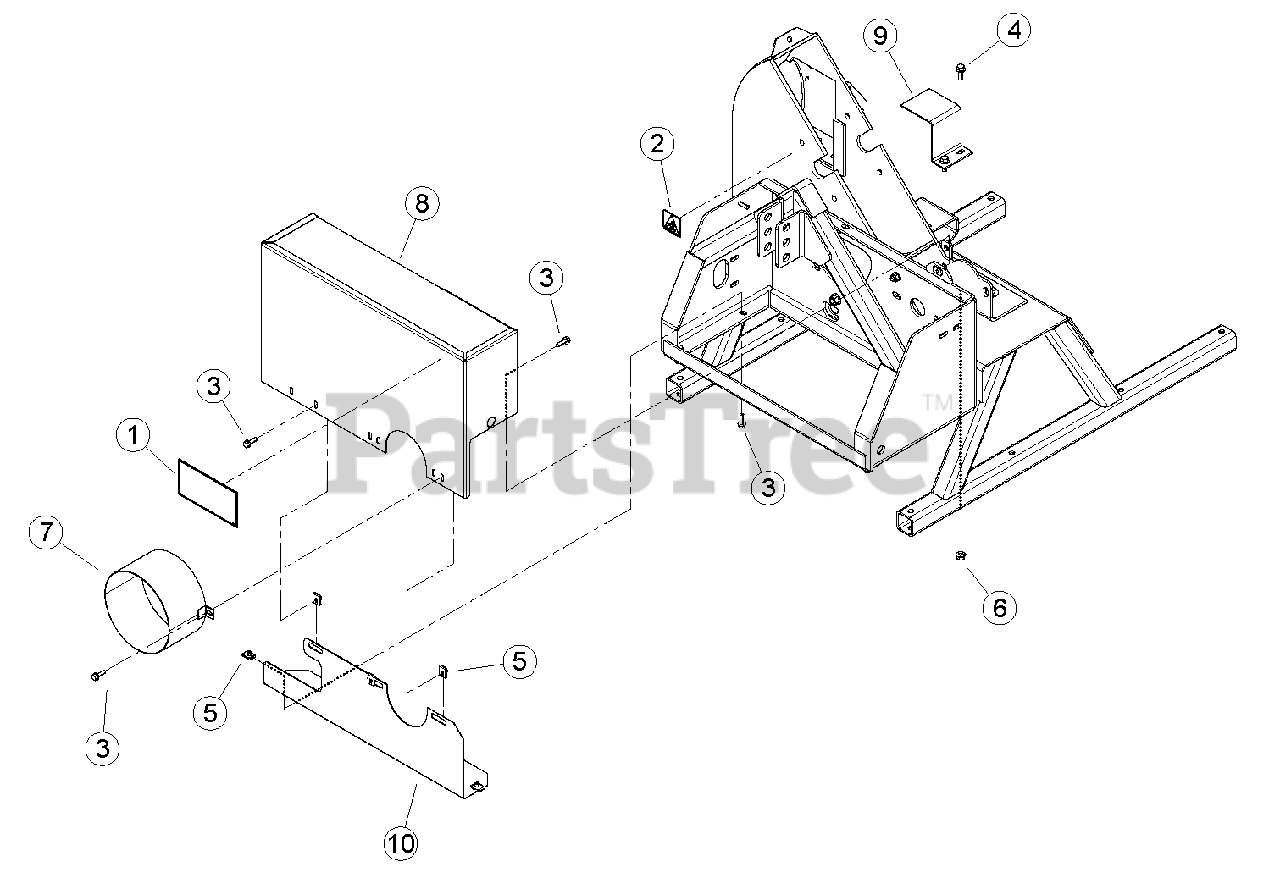

Shields Parts Diagram

  • Title
1

Bear Cat 12168

DECAL, PTO DANGER ISO

$9.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

5

Bear Cat 15402

NUT, 5/16"-18 TINNERMAN U-TYPE

$

$

Not available

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

71798-12

WELDMENT, PTO SHIELD

$

$

Not available

8

72475-12

WELDMENT, UPPER BELT GUARD

$

$

Not available

9

Bear Cat 72518-12

COVER, JACKSHAFT

$

$

Not available

10

73044-12

GUARD, LOWER BELT

$

$

Not available
