CH 5627 - Bear Cat 5" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0215JW005793 & Above) Housing Parts Diagram

5" Chipper, 627cc Briggs & Stratton

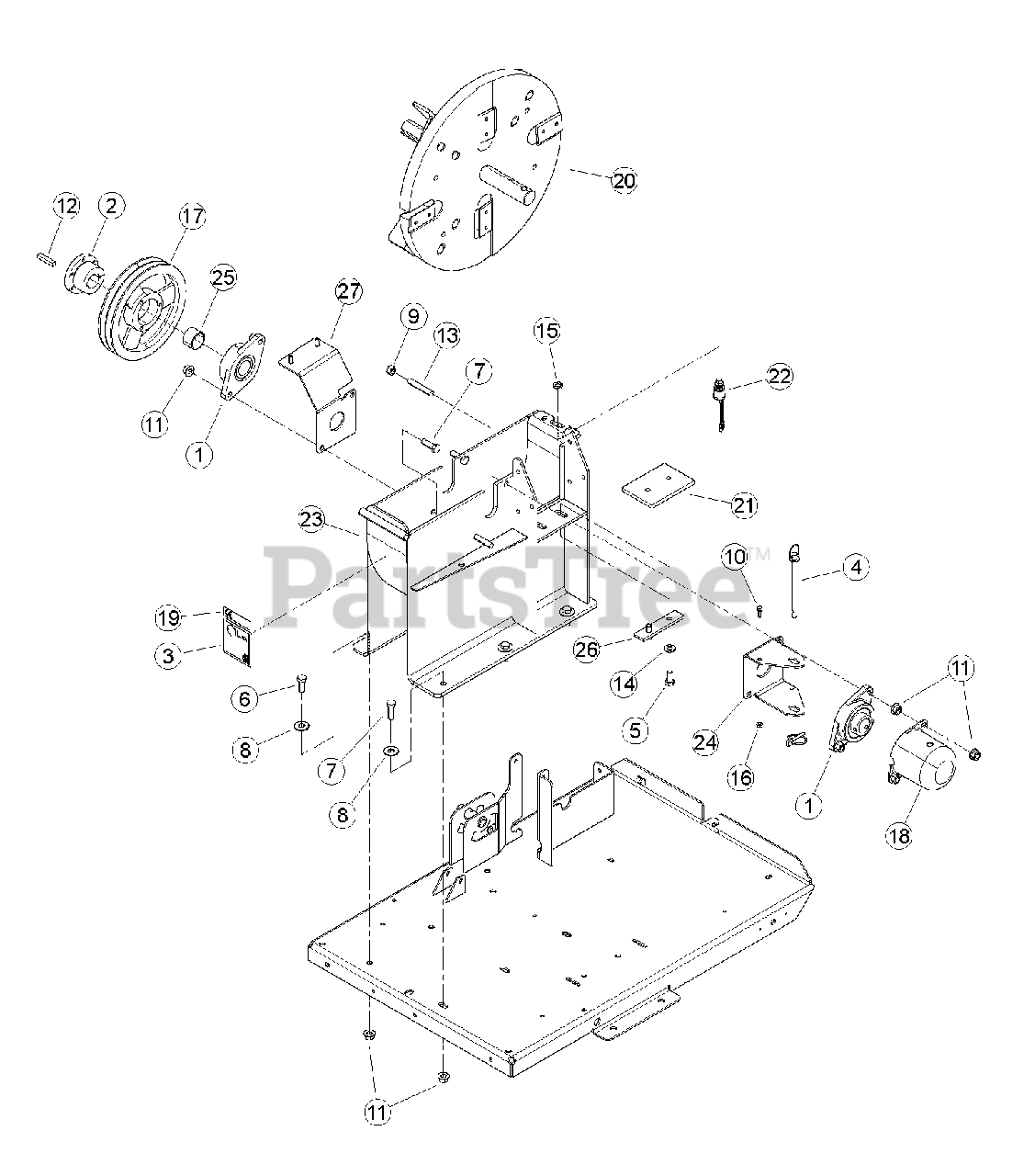

Housing Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$87.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

3

Bear Cat 14187-00

DECAL, 109 DB (CE COMPLIANT ONLY)

$10.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$39.99

$

Usually ships in 3-7 days

0

5

15012

BOLT, 1/2 X 1 GR5 HEX CAPSCREW ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

7

Bear Cat 15014

BOLT, 1/2-13 X 1-1/2 HEX HD GR5

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15034

WASHER, 1/2 FLAT

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$0.99

$

Usually ships in 3-7 days

0

10

15079-00

BOLT, 1/4-20 X 3/4 FLANGE GR5 CZP

$

$

Not available

11

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$5.49

$

In Stock, only 2 left!

0

13

Bear Cat 15481

STUD, 1/2"-13 X 3"LG B7 ZP

$18.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

15

Bear Cat 15775-00

NUT, 5/8-32 JAM

$13.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16323

SHEAVE, 2B9.4 SK

$180.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

19

Bear Cat 31604-00

DECAL, CH5627 INFORMATION (CE COMPLIANT ONLY)

$11.99

$

Usually ships in 3-7 days

0

20

Bear Cat 71371-00

ASSEMBLY, 5" ROTOR

$2238.99

$

Usually ships in 3-7 days

0

21

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

22

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$87.99

$

Usually ships in 3-7 days

0

23

Bear Cat 76786-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

24

Bear Cat 76787-12

BRACKET, ROTOR LOCK

$

$

Not available

25

Bear Cat 76938-12

TUBE, 1.75 OD X .109 WALL X 1.150

$

$

Not available

26

Bear Cat 76939-12

STRIP, ADJUSTOR BLOCK

$

$

Not available

27

Bear Cat 77249-12

WELDMENT, BELT GUARD SUPPORT

$

$

Not available
