CH 5627 - Bear Cat 5" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0215JW005793 & Above) Idler Parts Diagram

5" Chipper, 627cc Briggs & Stratton

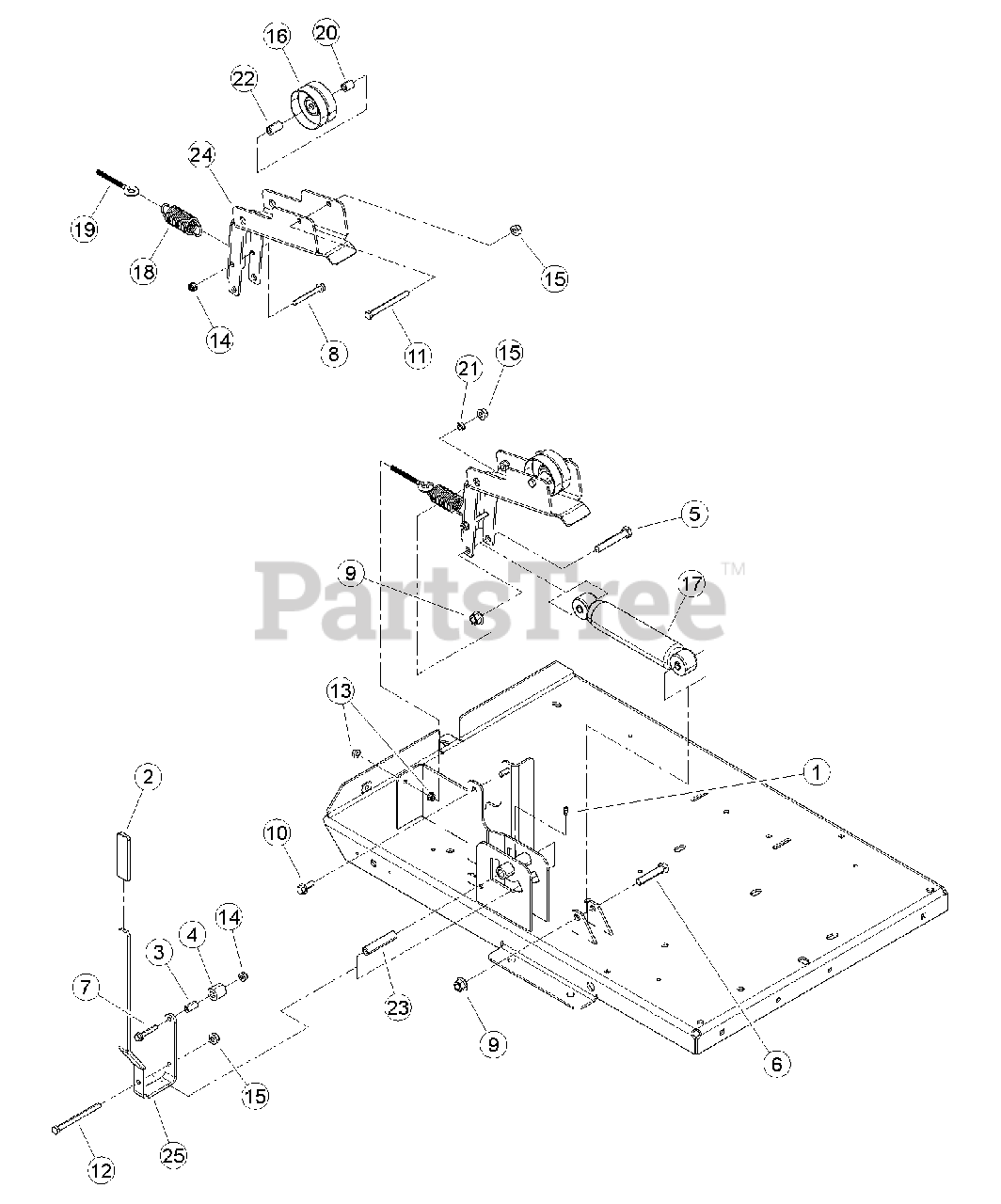

Idler Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15086

BOLT, 1/2 X 3 GR5 HEX HD ZP

$

$

Not available

6

Bear Cat 15092

BOLT, 1/2 X 2-1/2 GR5 HEX CAP ZP

$1.49

$

Usually ships in 3-7 days

0

7

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

8

15144-00

BOLT, 5/16 X 2-3/4 FLANGE NC

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

11

15272

BOLT, 3/8 X 4" HHCS GR5 NC ZP

$

$

Not available

12

Bear Cat 15274

BOLT, 3/8 X 4-1/2" HHCS GR5 NC ZP

$

$

Not available

13

15351

NUT, 5/16-18 SERRATED FLANGE NC

$

$

Not available

14

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$77.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

18

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

19

31324-00

BOLT, 5/16 X 3-5/8" EYE

$

$

Not available

20

Bear Cat 62531

SPACER, 3/4" LONG IDLER TUBE

$8.49

$

Usually ships in 3-7 days

0

21

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

22

Bear Cat 70046

SPACER, IDLER

$

$

Not available

23

Bear Cat 74579-00

SPACER, .63 X 3.060

$22.99

$

Usually ships in 3-7 days

0

24

Bear Cat 76796-12

WELDMENT, IDLER BRACKET

$

$

Not available

25

Bear Cat 76940-35

LEVER, CHIPPER ENGAGEMENT

$

$

Not available
