CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA0000DW000001 - 5VJAA0215JW005776) Frame (CE COMPLIANT) Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

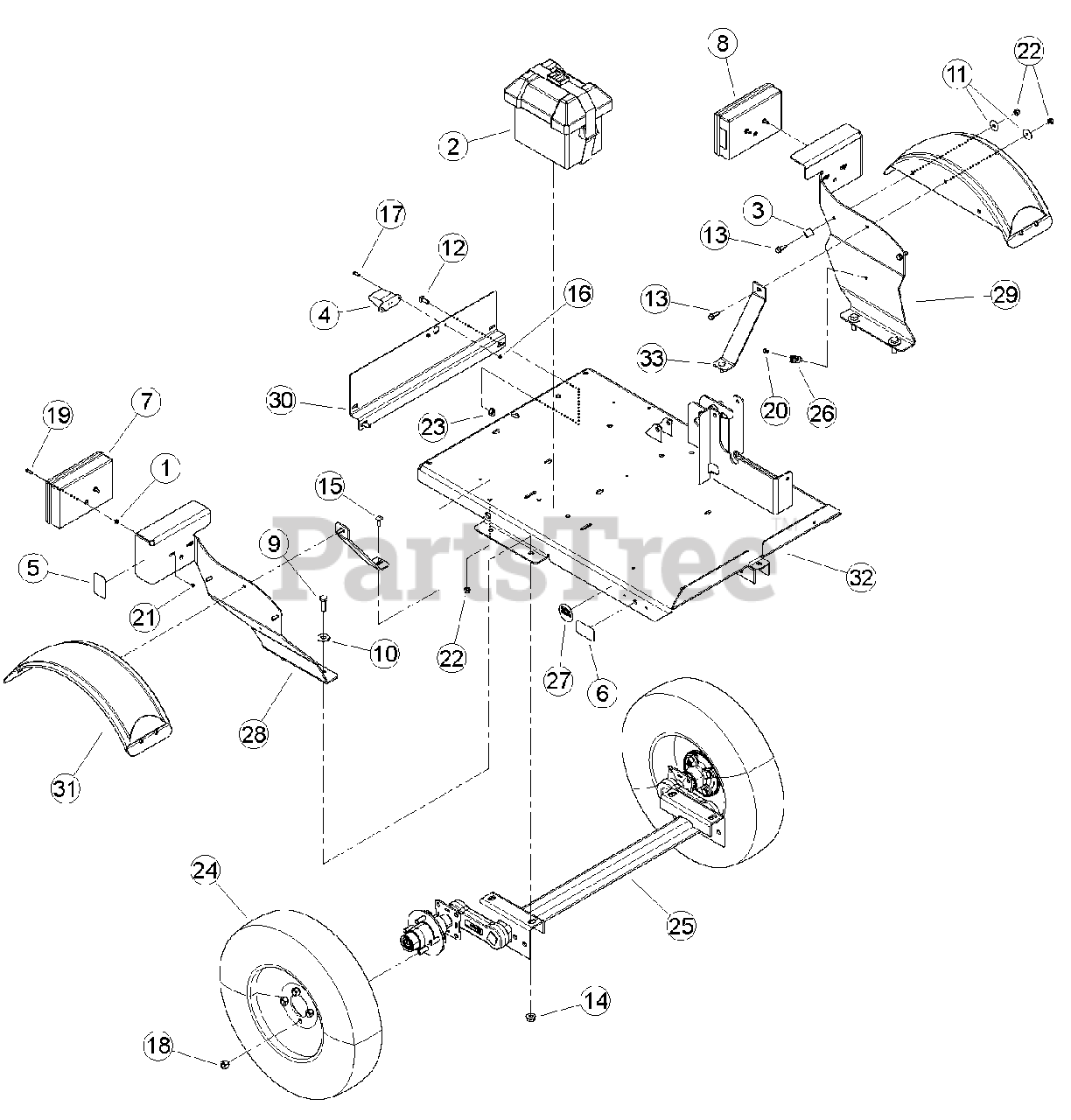

Frame (CE COMPLIANT) Parts Diagram

  • Title
1

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

2

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

5

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.49

$

Usually ships in 3-7 days

0

7

Bear Cat 14566-00

LIGHT, TAIL RH

$89.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14580-00

LIGHT, TAIL LH

$89.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

10

Bear Cat 15034

WASHER, 1/2" FLAT ZP-56PCS/LB

$

$

Not available

11

Bear Cat 15040

WASHER, 5/16" FENDER ZP-32PCS/LB

$0.99

$

Usually ships in 3-7 days

0

12

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

14

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

16

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

17

Bear Cat 15460

SCREW, #10-24 X 3/4" PAN HD PH ZP MCH

$

$

Not available

18

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

19

15557

BOLT, 10-24 X 3/4" HHCS GR8 PLAIN

$

$

Not available

20

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

21

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

22

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

23

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

24

Bear Cat 16548

ASSEMBLY, 5.30-12 TIRE + SPOKE RIM

$342.99

$

Usually ships in 3-7 days

0

25

Bear Cat 16917

AXLE, 1000LB TORSION

$1000.99

$

Usually ships in 3-7 days

0

26

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

27

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

28

Bear Cat 71578-12

BRACKET, RH FENDER "CE"

$268.99

$

Usually ships in 3-7 days

0

29

Bear Cat 71586-12

BRACKET, LH FENDER "CE"

$268.99

$

Usually ships in 3-7 days

0

30

Bear Cat 75555-12

PLATE, MOUNTING

$

$

Not available

31

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

32

Bear Cat 76781-12

WELDMENT, CHIPPER TRAILER

$1200.99

$

Usually ships in 3-7 days

0

33

Bear Cat 76976-12

BRACKET, FENDER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 36202-00

HARNESS, C/S TRAILER

Note: (NOT SHOWN)

$

$

Not available
