CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA0000DW000001 - 5VJAA0215JW005776) Hitch (CE COMPLIANT) Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

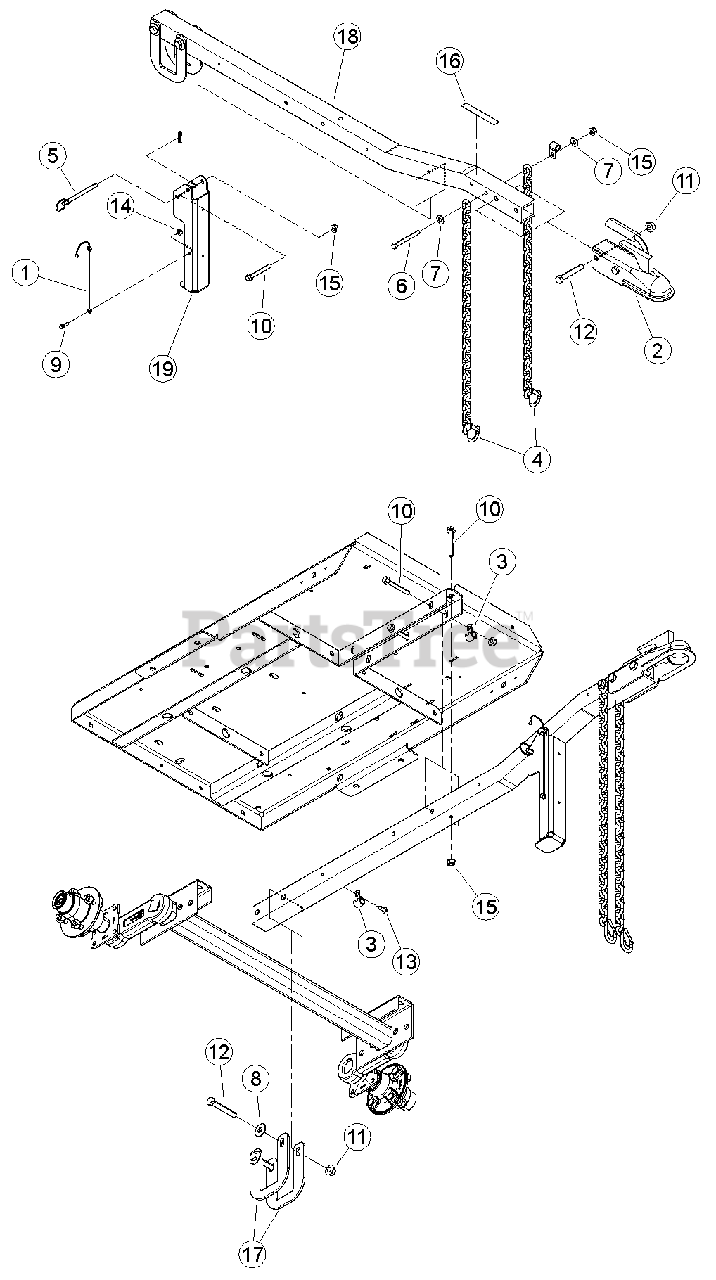

Hitch (CE COMPLIANT) Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

Bear Cat 12536

COUPLER, 50 MM BALL

$112.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

5

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

6

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEXHD GR5 ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

8

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

9

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

10

15155-00

BOLT, 3/8 X 3 FLANGE NC

$

$

Not available

11

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

12

Bear Cat 15173

BOLT, 1/2 X 3-1/4 HCS GR5 ZP

$

$

Not available

13

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

14

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16875

DECAL, HITCH LOAD

$11.99

$

Usually ships in 3-7 days

0

17

Bear Cat 71846-12

PLATE, HITCH SADDLE

$

$

Not available

18

Bear Cat 76803-12

POLE, C/S HITCH

$

$

Not available

19

Bear Cat 76804-12

WELDMENT, STAND JACK

$

$

Not available

17320

STRAP, 11 IN. BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
