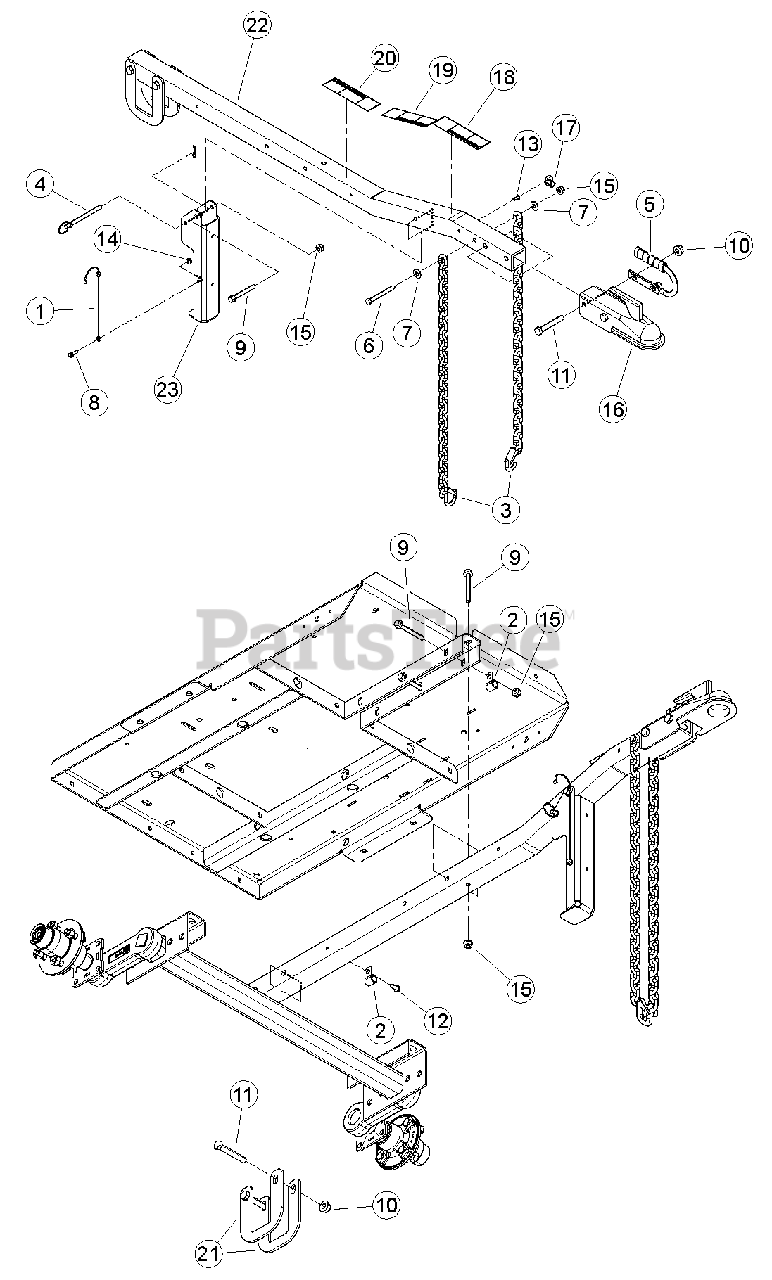

CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA0000DW000001 - 5VJAA0215JW005776) Hitch (NON-CE COMPLIANT) Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

Hitch (NON-CE COMPLIANT) Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

14048-00

CLAMP, 9/16 COATED

$

$

Not available

3

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

4

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

5

Bear Cat 14940-00

HANDLE, HITCH COUPLER

$55.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

8

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

9

15155-00

BOLT, 3/8 X 3 FLANGE NC

$

$

Not available

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 15173

BOLT, 1/2 X 3 1/4 HCS GR5 ZP

$

$

Not available

12

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

13

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 17988

TRAILER HITCH COUPLER

$90.99

$

Usually ships in 3-7 days

0

17

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

18

Bear Cat 32327-00

DECAL, SAFETY CHAINS

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$7.99

$

Usually ships in 3-7 days

0

20

32332-00

DECAL, SAFE COUPLING

$

$

Not available

21

Bear Cat 71846-12

PLATE, HITCH SADDLE

$

$

Not available

22

Bear Cat 76803-12

POLE, C/S HITCH

$

$

Not available

23

Bear Cat 76804-12

WELDMENT, STAND JACK

$

$

Not available

17320

STRAP, 11 IN. BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
