CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA0000DW000001 - 5VJAA0215JW005776) Housing Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

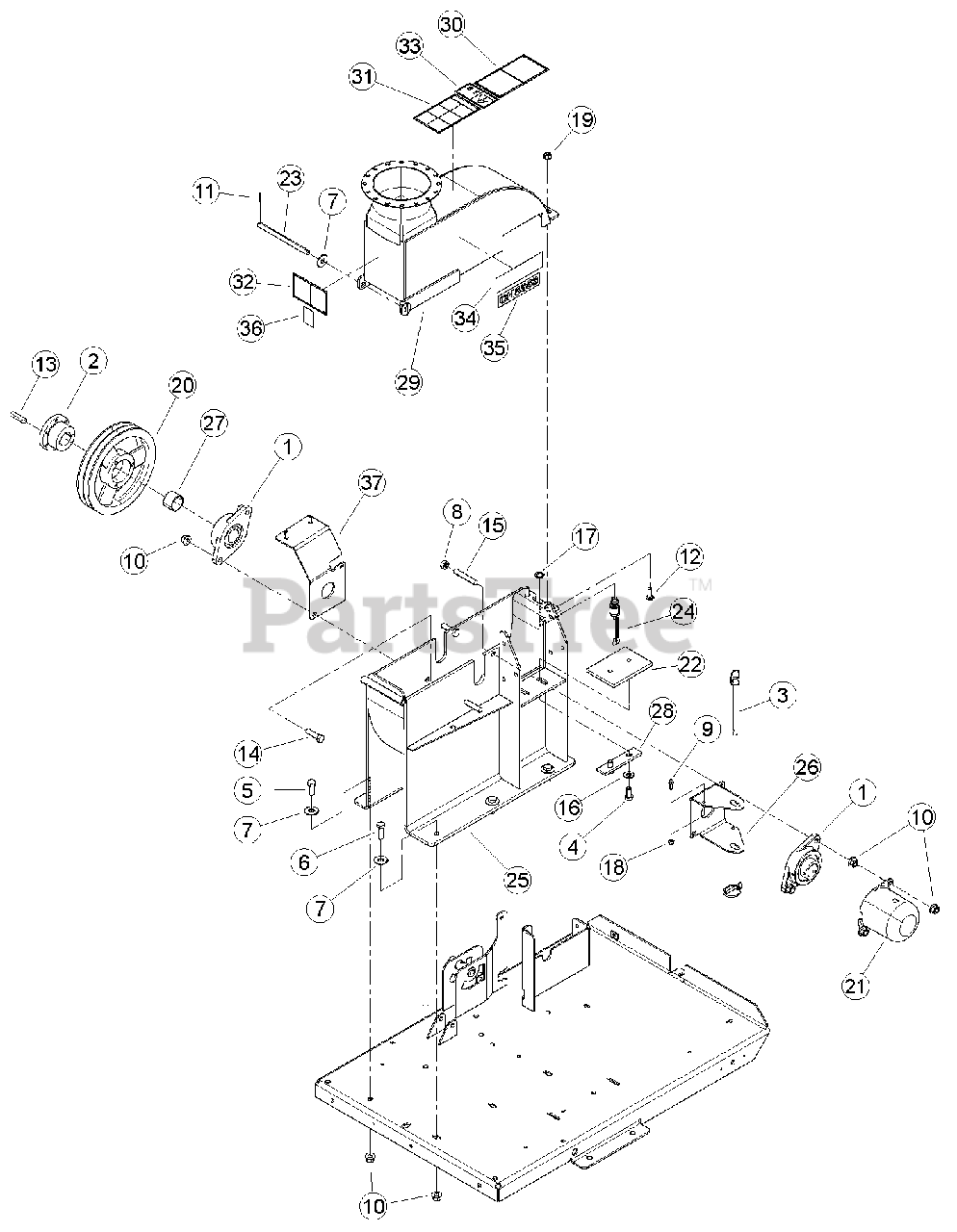

Housing Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12441

BUSHING, SK 1-1/2"

$

$

Not available

3

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$37.99

$

Usually ships in 3-7 days

0

4

15012

BOLT, 1/2 X 1 GR5 HEX CAPSCREW ZP

$

$

Not available

5

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

6

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

7

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

9

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

12

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

14

15478

BOLT, 1/2 X 1 3/4 GR5 HCPS NC ZP

$

$

Not available

15

Bear Cat 15481

STUD, 1/2-13 X 3" LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

17

Bear Cat 15775-00

NUT, 5/8-32 JAM

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 16323

SHEAVE, 2B9.4 SK

$171.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

22

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

23

Bear Cat 72974

SHAFT, CHIPPER TOP PIVOT

$45.99

$

Usually ships in 3-7 days

0

24

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0

25

Bear Cat 76786-35

WELDMENT, CHIPPER BOTTOM

$

$

Not available

26

Bear Cat 76787-12

BRACKET, ROTOR LOCK

$

$

Not available

27

Bear Cat 76938-12

TUBE, 1.75 OD X .109 WALL X 1.150

$

$

Not available

28

Bear Cat 76939-12

STRIP, ADJUSTOR BLOCK

$

$

Not available

29

Bear Cat 76974-00

ASSEMBLY, CHIPPER TOP W/ DECALS

Note: (INCLUDES ITEMS 30-36)

$699.99

$

Usually ships in 3-7 days

0

30

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

31

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

32

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

33

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

34

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

35

Bear Cat 31464-00

DECAL, MODEL CH5653

$8.49

$

Usually ships in 3-7 days

0

36

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

37

Bear Cat 77249-12

WELDMENT, BELT GUARD SUPPORT (REPLACED AND SUPERSEDED PN 76941-00. FOR SERVICE ORDER PN 77249-12)

$

$

Not available

77504-00

KIT, SPANISH/PORTUGESE TRAILER/COUPLER DECAL

Note: (NOT SHOWN)

$

$

Not available
