CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA001XBW002854 - 5VJAA0019CW003700) Chute (CE COMPLIANT) Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

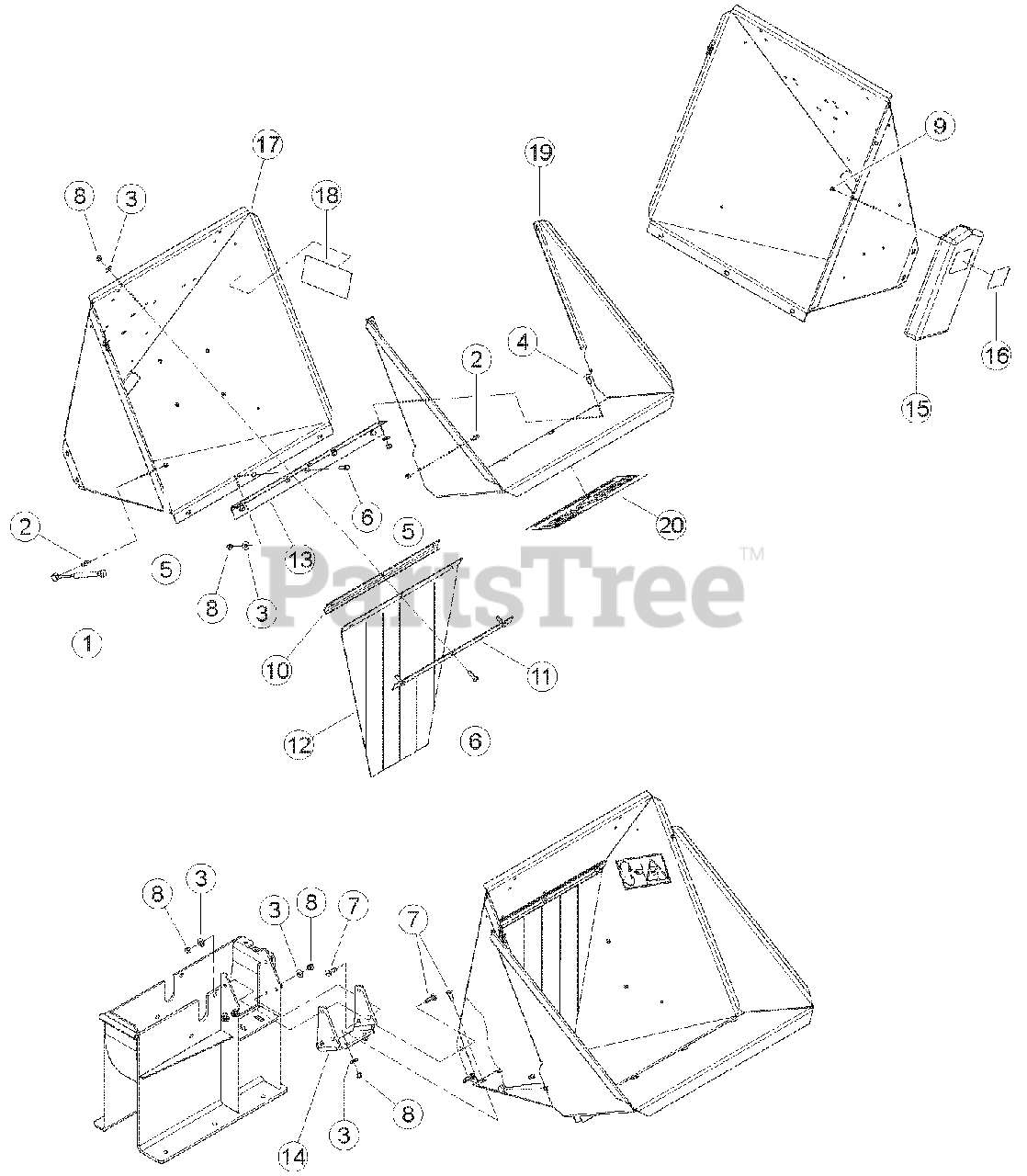

Chute (CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 12780

SPRING, GAS 60 PSI

$

$

Not available

2

Bear Cat 12781

STUD, BALL .39

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

6

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

7

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

8

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

9

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

10

Bear Cat 72460-12

ANGLE, FLAP ANCHOR

$

$

Not available

11

Bear Cat 72461-12

STRIP, FLAP RETAINER

$

$

Not available

12

Bear Cat 72462

FLAP, CHIPPER CHUTE

$186.99

$

Usually ships in 3-7 days

0

13

Bear Cat 72568-12

HINGE, EXTENSION TRAY

$

$

Not available

14

Bear Cat 76802-12

BRACKET, CHUTE MOUNT

$

$

Not available

15

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER SERVICE PART

Note: (INCLUDES ITEM 16)

$108.99

$

Usually ships in 3-7 days

0

16

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$38.99

$

Usually ships in 3-7 days

0

17

Bear Cat 77114-00

ASSEMBLY, 5 INCH CHIPPER CHUTE SERVICE PART

Note: (INCLUDES ITEM 18)

$1058.99

$

Usually ships in 3-7 days

0

18

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

19

Bear Cat 77115-00

ASSEMBLY, 5 INCH EURO CHUTE TRAY SERVICE PART

Note: (INCLUDES ITEM 20)

$507.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31484-00

DECAL, BEARCAT WEB

$

$

Not available
