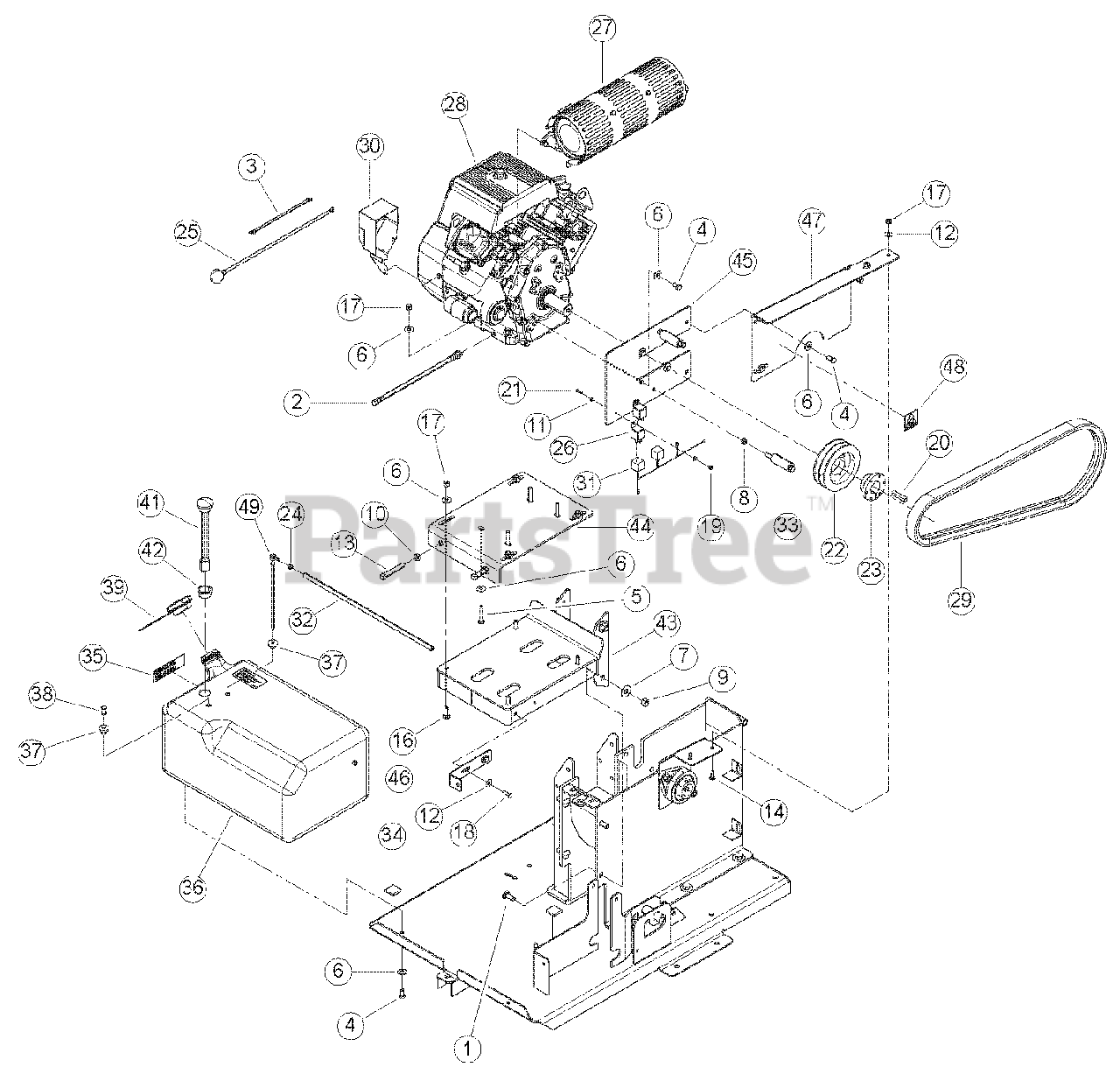

CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA001XBW002854 - 5VJAA0019CW003700) Engine Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

Engine Parts Diagram

  • Title

1

0103-0113-00

BOLT, 1/2 X 1-1/4 CRG GR5 ZP

$

$

Not available

2

Bear Cat 14373-00

HOSE ASSY, CRANKCASE DRAIN

$81.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14901-00

CABLE, 24" NEG (R / R)

$41.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15005

BOLT, 3/8 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15008

BOLT, 3/8 X 2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15042

NUT, 3/8 HEX HD NC ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

10

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

11

Bear Cat 15132

WASHER, 3/16 FLAT ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

15285

SETSCREW, 1/2 X 3 SQ HD 1/2 DOG PT

$

$

Not available

14

Bear Cat 15301

BOLT, 5/16 X 1 CRG

$

$

Not available

15

Bear Cat 15356

NUT, 5/16 NYLOCK

$0.99

$

Usually ships in 3-7 days

0

16

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15396

BOLT, 5/16 X 7/8 HHCS GR5 NC ZP

$

$

Not available

19

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

20

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$5.49

$

In Stock, only 2 left!

0

21

Bear Cat 15460

MACHINE SCREW, #10-24 X 3/4 PAN HD PH ZP

$

$

Not available

22

Bear Cat 16326

SHEAVE, 2B 5.2 SDS

$130.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16327

BUSHING, SDS 1-7/16"

$71.99

$

Usually ships in 3-7 days

0

24

Bear Cat 16378

CLAMP, 15/32" SPRING

$4.49

$

Usually ships in 3-7 days

0

25

Bear Cat 17888

CABLE, 33" POS (R / R WITH BOOT)

$70.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$61.99

$

Usually ships in 3-7 days

0

27

MUFFLER, SUBARU V-TWIN (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU ENGINE DEALER)

$

$

Not available

28

ENGINE, 653CC SUBARU EH65 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU ENGINE DEALER)

$

$

Not available

29

Bear Cat 31460-00

BELT, 2BRP67

$309.99

$

Usually ships in 3-7 days

0

30

Bear Cat 31489-00

CONTROL, SUBARU V-TWIN IGNITION

$153.99

$

Usually ships in 3-7 days

0

31

Bear Cat 31610-00

HARNESS, CARB SAFETY RELEAY

$111.99

$

Usually ships in 3-7 days

0

32

Bear Cat 71379

HOSE, 20" FUEL LINE

$53.99

$

Usually ships in 3-7 days

0

33

Bear Cat 73678-12

WELDMENT, BELT GUIDE

$

$

Not available

34

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$24.99

$

Usually ships in 3-7 days

0

ASSEMBLY, FUEL TANK UNLEADED PRE2011 (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT # 77711-00)

Note: (INCLUDES ITEMS 35 - 42)

$

$

Not available

35

DECAL, UNLEADED GASOLINE

$

$

Not available

36

TANK, 9.25 GAL. ROTOMOLDED FUEL

$

$

Not available

37

GROMMET, TANK FITTING

$

$

Not available

38

PLUG, TANK VENT

$

$

Not available

39

CAP, FUEL TANK VENTED

$

$

Not available

40

FITTING, TANK FUEL PICK-UP TUBE

$

$

Not available

41

GAUGE, FUEL LEVEL KELCH 100

$

$

Not available

42

GROMMET, KELCH 100 GAUGE

$

$

Not available

43

Bear Cat 76793-12

WELDMENT, ENGINE BASE

$

$

Not available

44

Bear Cat 76795-12

WELDMENT, ENGINE MOUNT PLATE

$195.99

$

Usually ships in 3-7 days

0

45

Bear Cat 76799-12

WELDMENT, BELT SHIELD BRACKET

$107.99

$

Usually ships in 3-7 days

0

46

Bear Cat 76937-12

WELDMENT, SHIELD BRACKET

$

$

Not available

47

Bear Cat 76975-00

ASSEMBLY, BELT GUIDE, SERVICE PART

Note: (INCLUDES ITEM 48)

$204.99

$

Usually ships in 3-7 days

0

48

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0
