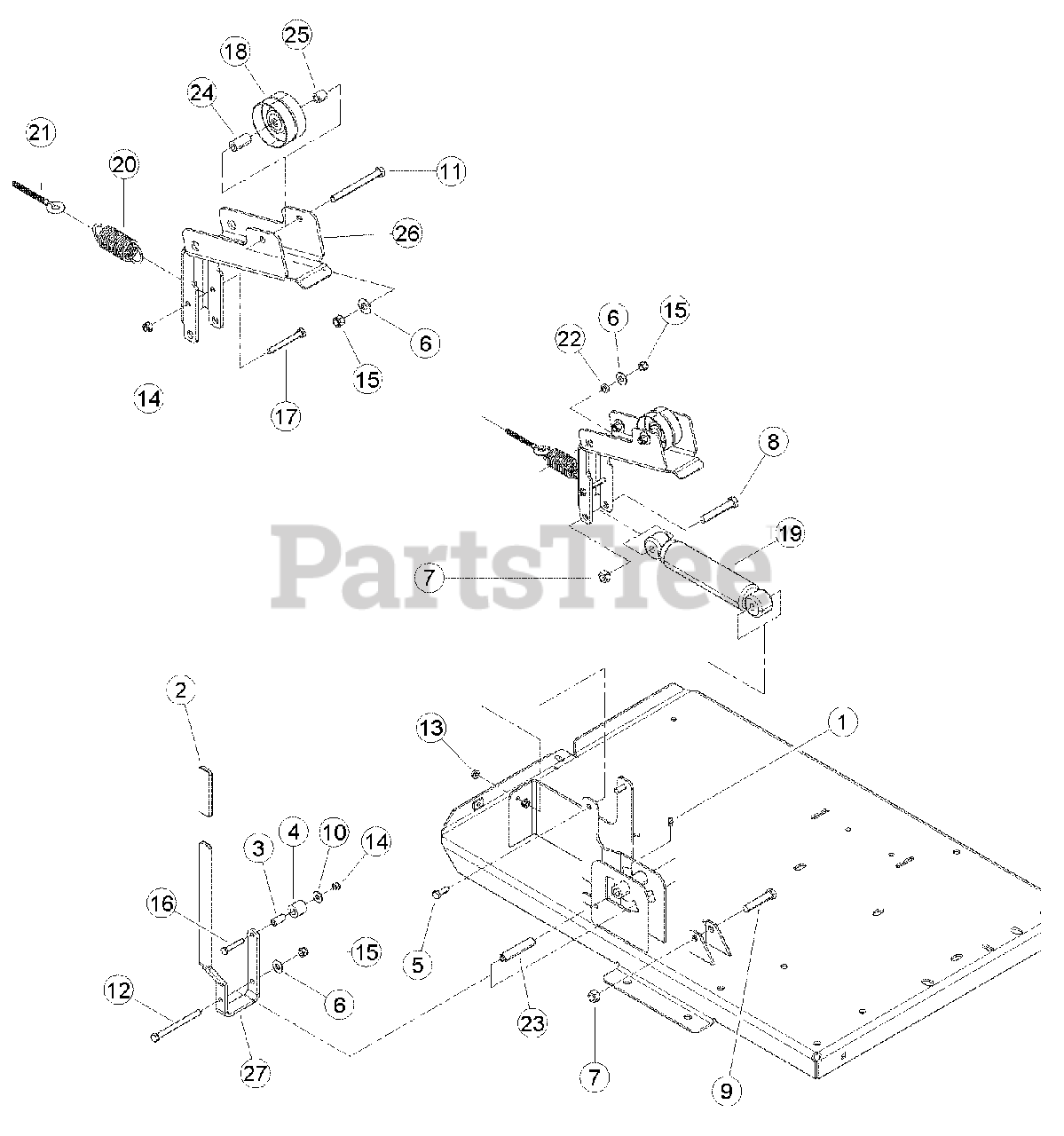

CH 5653 - Bear Cat 5" Chipper, 653cc Subaru PTO Driven (SN: 5VJAA001XBW002854 - 5VJAA0019CW003700) Idler Parts Diagram

5" Chipper, 653cc Subaru PTO Driven

Idler Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14635-00

SPACER, .50 X 1.00

$12.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD NC GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

8

Bear Cat 15086

BOLT, 1/2 X 3 HEX HD

$

$

Not available

9

Bear Cat 15092

BOLT, 1/2 X 2-1/2 HEX HD

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

11

15272

BOLT, 3/8 X 4 HEX HD NC

$

$

Not available

12

Bear Cat 15274

BOLT, 3/8 X 4-1/2 HEX HD NC

$

$

Not available

13

15351

NUT, 5/16 SERR FLANGE NC ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK

$

$

Not available

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK

$

$

Not available

16

Bear Cat 15403

BOLT, 5/16 X 1-3/4 HEX HD

$

$

Not available

17

15560

BOLT, 5/16 X 2-3/4 HCPS GR5 NC ZP

$

$

Not available

18

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

20

Bear Cat 17415

SPRING, LOCK COMPRESSION

$

$

Not available

21

31324-00

I-BOLT, 5/16 X 3-5/8

$

$

Not available

22

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

23

Bear Cat 74579-00

BUSHING, PIVOT

$21.99

$

Usually ships in 3-7 days

0

24

Bear Cat 70046

IDLER SPACER

$

$

Not available

25

Bear Cat 70362

SPACER .63 X .63 PULLEY

$9.49

$

Usually ships in 3-7 days

0

26

Bear Cat 76796-12

BRACKET, IDLER

$

$

Not available

27

Bear Cat 76940-35

LEVER, CHIPPER ENGAGEMENT

$

$

Not available
