CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Engine Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

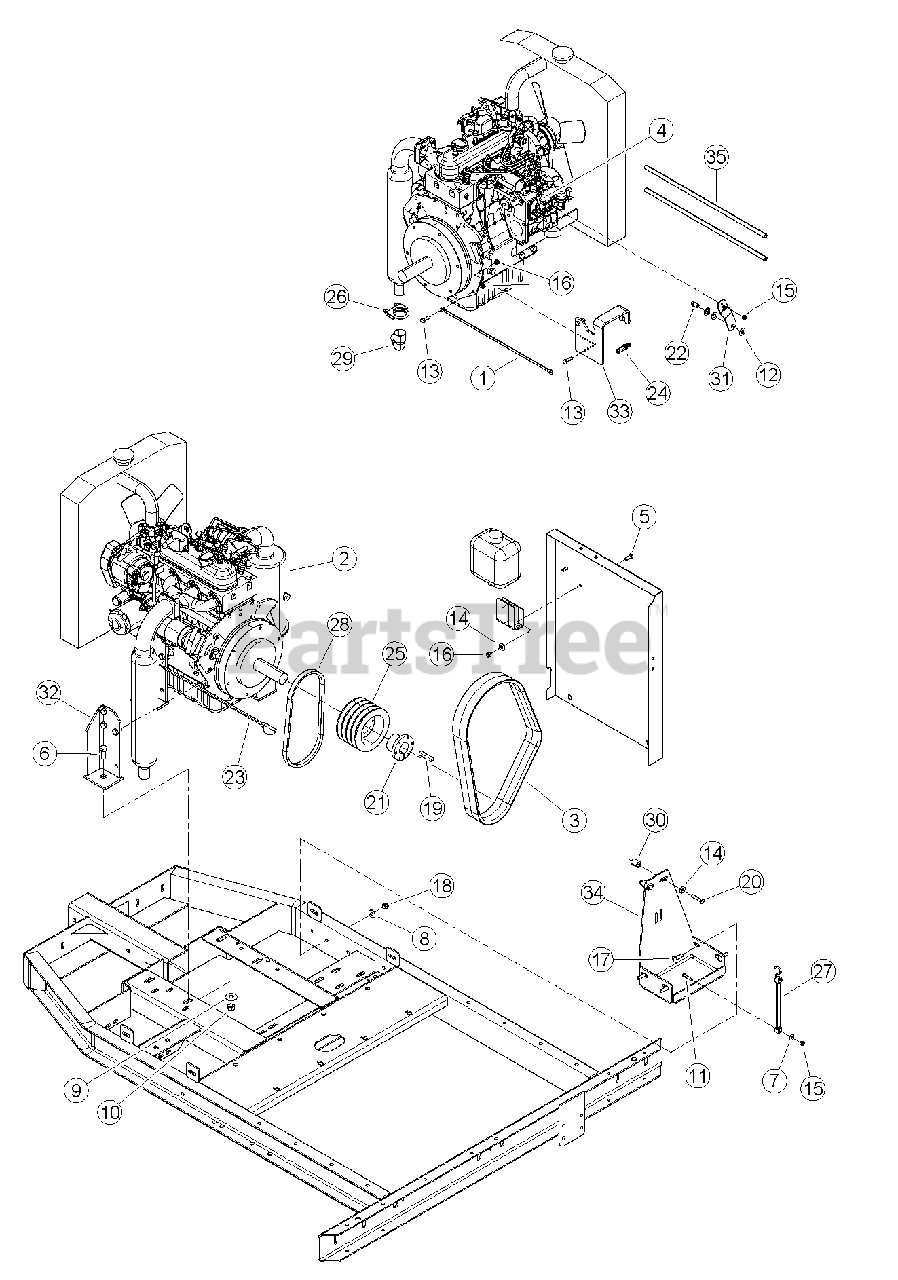

Engine Parts Diagram

  • Title

1

Bear Cat 12656

CABLE, 18" NEG (R / R)

$

$

Not available

2

ENGINE, 1105B KUBOTA DIESEL (FOR SERVICE SEE ENGINE OWNERS MANUAL OR YOUR NEAREST KUBOTA INDUSTRIAL ENGINE DEALER.)

$

$

Not available

3

Bear Cat 14261-00

BELT, 3RB48 ARAMID

$360.99

$

Usually ships in 3-7 days

0

4

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

11

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15216

WASHER, 7/16 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

17

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$5.49

$

In Stock, only 2 left!

0

20

Bear Cat 15806-00

BOLT, M8 X 1.25 X 40 GR8.8 HCPS

$2.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16552

BUSHING, SD 1-7/16"

$60.99

$

Usually ships in 3-7 days

0

22

17165

CABLE STOP - BOWDEN PIN # 6170

$

$

Not available

23

Bear Cat 17888

CABLE, 33" POS (R / R WITH BOOT)

$70.99

$

Usually ships in 3-7 days

0

24

17905

BULKHEAD FITTING

$

$

Not available

25

Bear Cat 18450-00

SHEAVE, 4B5.2 SD

$181.99

$

Usually ships in 3-7 days

0

26

Bear Cat 18524-00

CLAMP, 1-1/2" MUFFLER

$29.99

$

Usually ships in 3-7 days

0

27

Bear Cat 18528-00

STRAP, 10 INCH TARP

$18.99

$

Usually ships in 3-7 days

0

28

BELT, BX30 (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32930-00)

$

$

Not available

29

Bear Cat 36083-12

ELBOW, KUBOTA EXHAUST

$

$

Not available

30

Bear Cat 70290

SPACER .75 X .90

$9.99

$

Usually ships in 3-7 days

0

31

Bear Cat 71720

STRIP, THROTTLE CONTROL

$

$

Not available

32

Bear Cat 73995-12

WELDMENT, ENGINE MOUNT

$

$

Not available

33

Bear Cat 74094-12

BRACKET, THROTTLE

$

$

Not available

34

75132-12

PLATE, BATTERY/AIR CLEANER

$

$

Not available

35

Bear Cat 75785-00

HOSE, 20" FUEL

$51.99

$

Usually ships in 3-7 days

0
