CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Frame (A) (NON-CE COMPLIANT) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

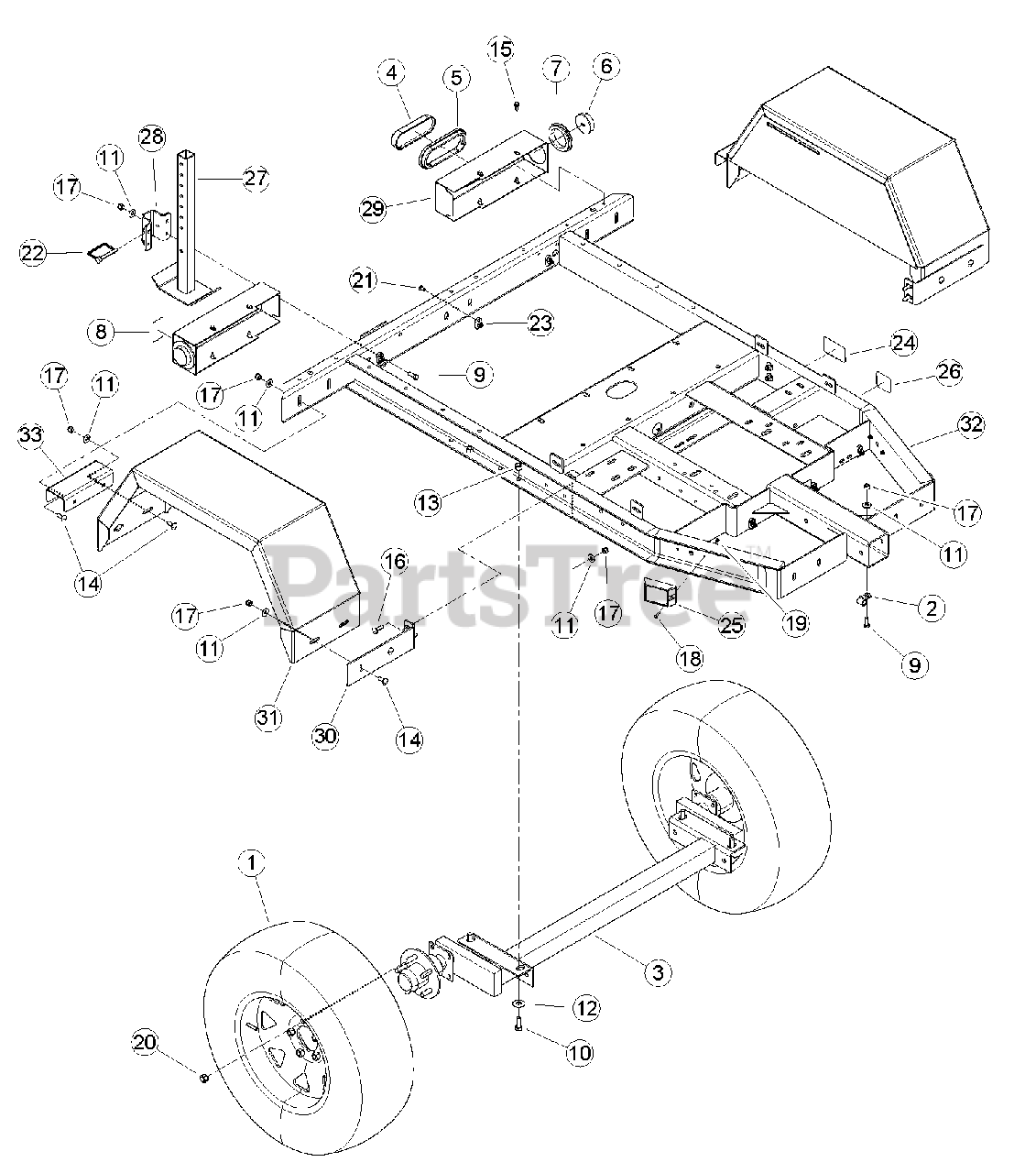

Frame (A) (NON-CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 12125

ASSY, 15 INCH TIRE + WHEEL

$556.99

$

Usually ships in 3-7 days

0

2

14048-00

CLAMP, COATED 9/16

$

$

Not available

3

Bear Cat 14256-00

AXLE, 2500 LB TORSION

$982.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14262-00

TAIL LIGHT, OVAL RED

$52.99

$

Usually ships in 3-7 days

0

5

GROMMET, OVAL TAIL LIGHT (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 31737-00)

$

$

Not available

6

Bear Cat 14361-00

LIGHT, RED CLEARANCE

$

$

Not available

7

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

8

Bear Cat 14374-00

REFLECTOR, WIDE ANGLE RED

$5.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

10

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

11

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

12

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

13

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

14

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

15

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

16

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

18

15393

MACH. SCREW,10-24 X 1 RND HD PHL ZP

$

$

Not available

19

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

20

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

21

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

22

16808

PIN, 3/8" X 2-3/4" SNAP

$

$

Not available

23

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

DECAL, P215/70R15 LOAD RATING (WAS 32154-00, REPLACED AND SUPERSEDED FOR SERVICE ORDER PN 30321-00)

$

$

Not available

25

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

26

32992-00

DECAL, EPA EMISSION

$

$

Not available

27

Bear Cat 73449-12

WELDMENT, REAR STABILIZER

$

$

Not available

28

Bear Cat 73450-12

GUIDE, TRAILER SUPPORT

$

$

Not available

29

Bear Cat 74019-12

BRACKET, TAILLIGHT

$

$

Not available

30

Bear Cat 74024-12

BRACKET, FENDER

$

$

Not available

31

Bear Cat 74144-12

WELDMENT, CHIPPER FENDER

$

$

Not available

32

Bear Cat 75118-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

33

Bear Cat 75147-12

PLATE, FENDER SPACER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

32349-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$

$

Not available
