CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Hitch (CE COMPLIANT EXCLUDES XF / 5VJAA0016CW003418 AND BELOW) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

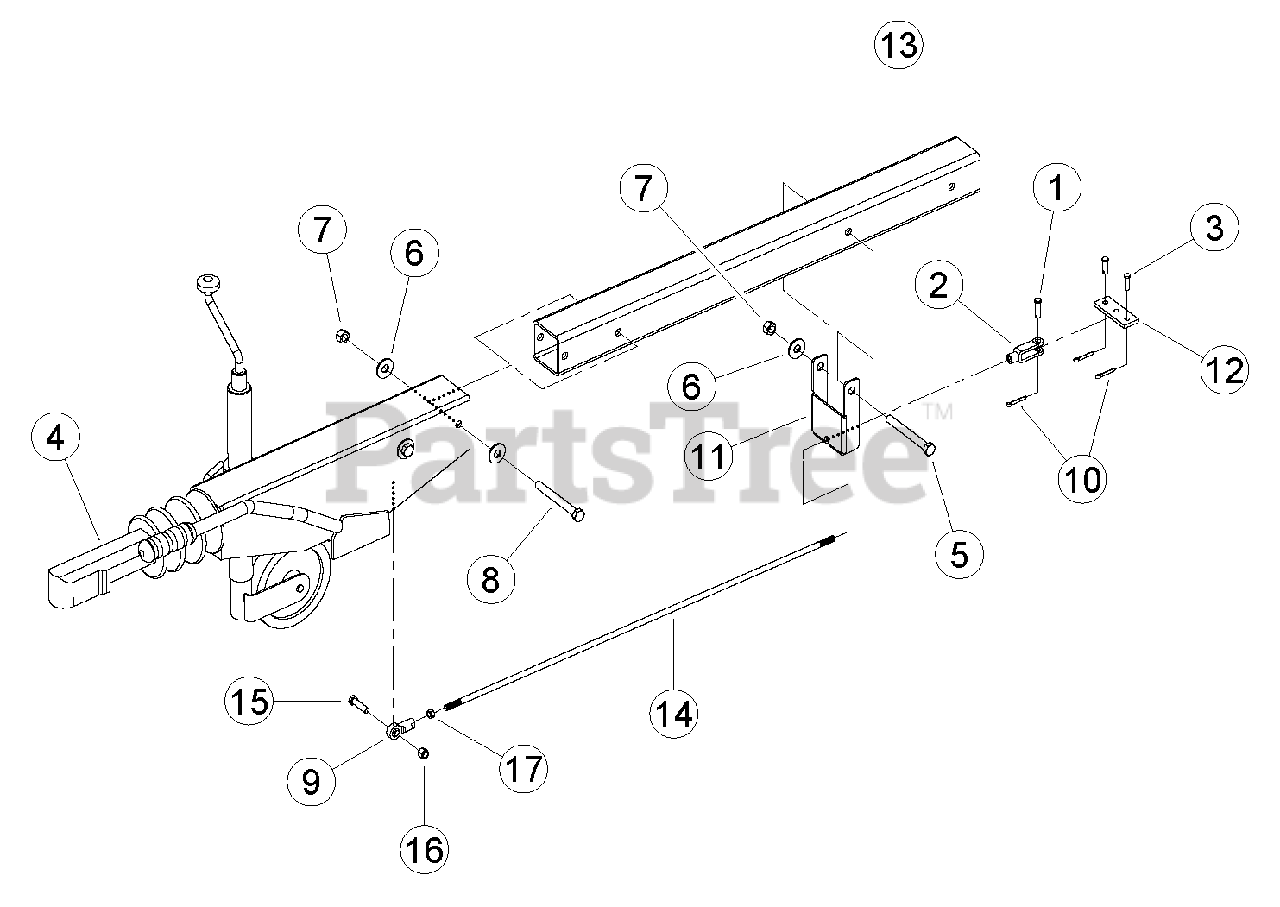

Hitch (CE COMPLIANT EXCLUDES XF / 5VJAA0016CW003418 AND BELOW) Parts Diagram

  • Title

1

0110-0339-00

PIN, 3/8 X 1-1/4 CLEVIS ZP

$

$

Not available

2

0150-0050-00

CLEVIS, ADJ. ROD END 3/8-24 UNF

$

$

Not available

3

14582-00

PIN, 5/16 X 1 CLEVIS

$

$

Not available

4

Bear Cat 14583-00

COUPLING, SURGE W/JOCKEY WHEEL

$1638.99

$

Usually ships in 3-7 days

0

5

15017

BOLT, 1/2 X 4-1/2 HEX HD GR5 NC ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

8

15174

BOLT, 1/2 X 4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 16560

BEARING, 3/8 ROD END

$56.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

11

Bear Cat 74328-12

BRACKET, ROD HANGER

$

$

Not available

12

Bear Cat 74329-12

BAR, BRAKE COMPENSATOR

$

$

Not available

13

Bear Cat 75128-12

TUBE, CHIPPER HITCH

$258.99

$

Usually ships in 3-7 days

0

14

Bear Cat 75481-12

ROD, BRAKE

$67.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15007

BOLT, 3/8 X 1-1/2 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

17

15201

NUT, 3/8 NFX

$

$

Not available
