CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Hydraulic Layout Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

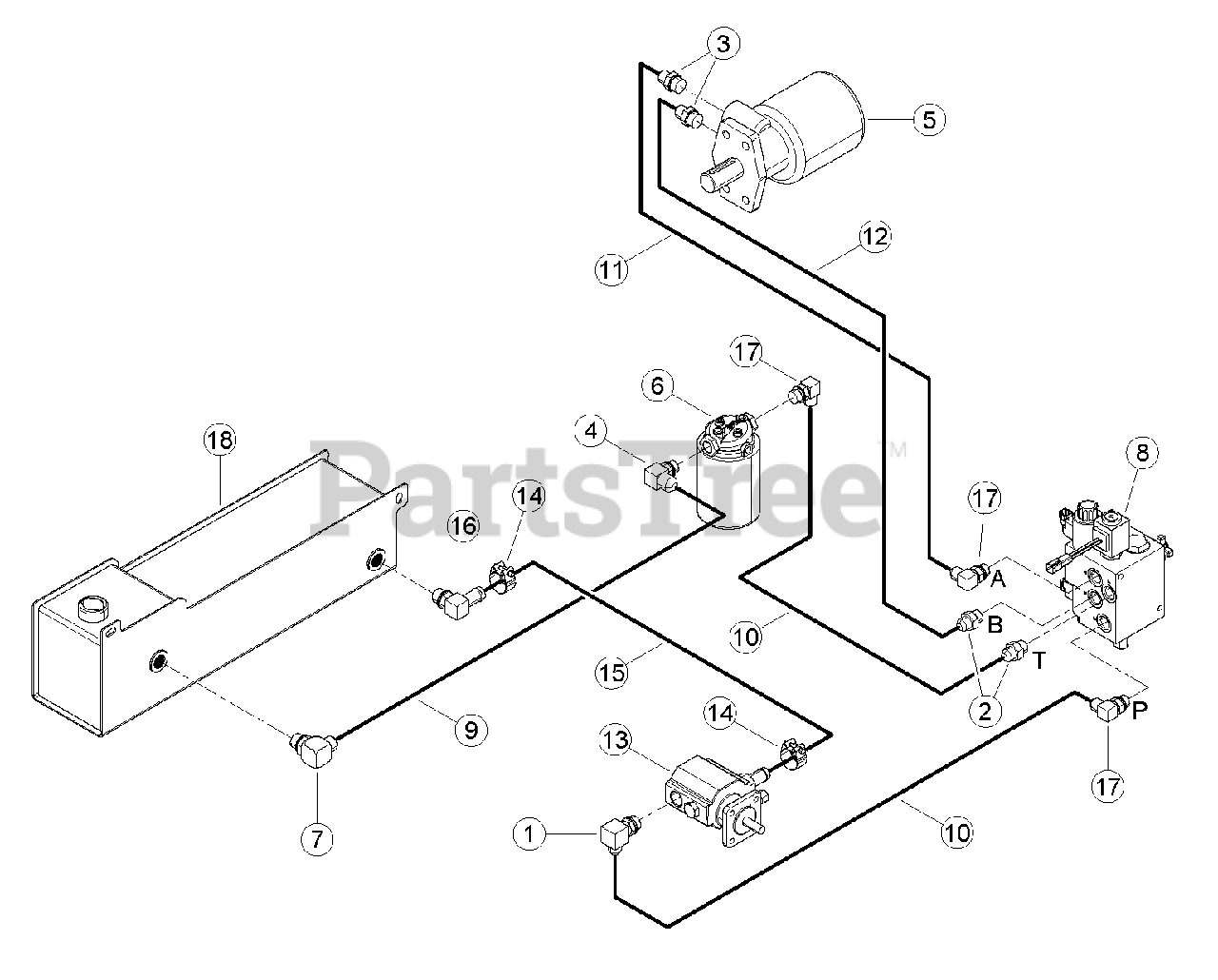

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

2

Bear Cat 12615

ADAPTER, -8MORING/-8MJIC

$

$

Not available

3

Bear Cat 12626

ADAPTER, -10MORING/-8MJIC

$

$

Not available

4

12917-00

ADAPTER, -8MORING/-10MJIC 90 DEG

$

$

Not available

5

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

7

16638

ADAPTER, -10MORING/-10MJIC 90 DEG

$

$

Not available

8

Bear Cat 18527-00

ASSEMBLY, CHIPPER VALVE (SEE VALVE ASSEMBLY FOR SERVICE PARTS. PAGE 8-9)
(Superseded to 71628-00)

$2142.99

$

Usually ships in 3-7 days

0

Bear Cat 18602-00

SWITCH, PRESSURE (SEE VALVE ASSEMBLY. PAGE 8-9)
(Superseded to 30132-00)

$439.99

$

Usually ships in 3-7 days

0

9

Bear Cat 18532-00

HOSE ASSY, -10FMJ/-10FMJ LD 90 X 21

$85.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18533-00

HOSE ASSY, -8FMJIC/-8FMJIC90 X 21

$57.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18535-00

HOSE ASSY, -8FMJIC/-8FMJIC90 X 61

$106.99

$

Usually ships in 3-7 days

0

12

Bear Cat 18536-00

HOSE ASSY, -8FMJIC/-8FMJIC X 61

$94.99

$

Usually ships in 3-7 days

0

13

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

14

Bear Cat 31425-00

CLAMP, 1-5/32 TO 7/32 OD RANGE T-BOLT

$49.99

$

Usually ships in 3-7 days

0

15

Bear Cat 36016-00

HOSE, .75 ID X 24 IN. 100R4 HYD

$79.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36017-00

ADAPTER, -10 MORING/.75 90 DEG HOSE

$40.99

$

Usually ships in 3-7 days

0

17

41287

ADAPTER, -8MORING/-8MJIC 90 DEG

$

$

Not available

18

Bear Cat 75091-12

WELDMENT, HYDRAULIC TANK

$

$

Not available
