CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Side Panels Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

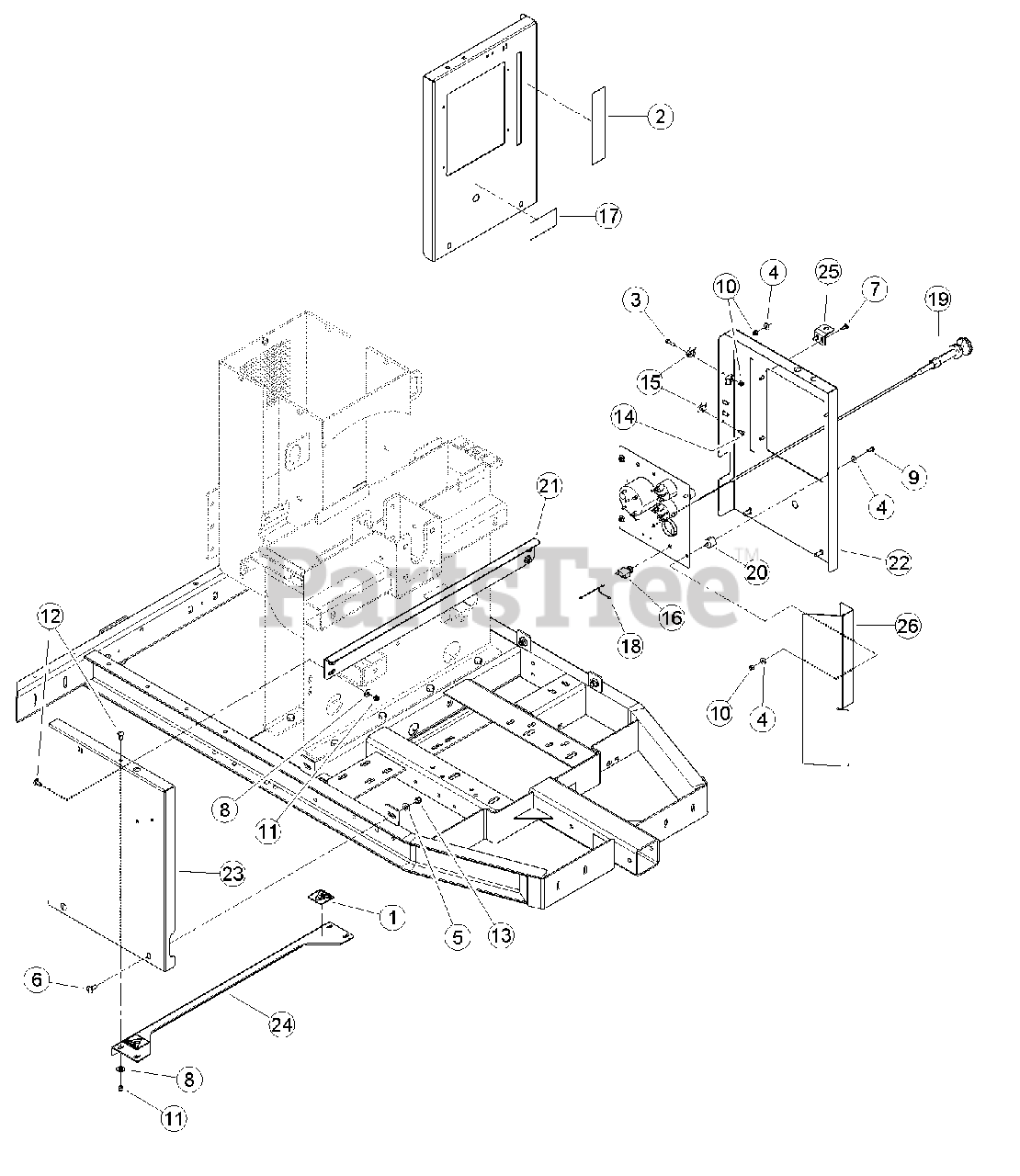

Side Panels Parts Diagram

  • Title
1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

3

15002

BOLT, 1/4 X 1 HEX HD GR5 ZP

$

$

Not available

4

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

7

15238

BOLT, 1/4 X 3/4 CRG GR5 ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15343

BOLT 1/4 X 5/8 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

16

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

17

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0

18

18605-00

WIRE, IGNITION SPLICE

$

$

Not available

19

Bear Cat 31916-00

CABLE, DIESEL THROTTLE 30 IN

$169.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

21

75070-35

PLATE, HOOD SUPPORT

$

$

Not available

22

75075-35

SHIELD, ENGINE RIGHT

$

$

Not available

23

75076-35

SHIELD, ENGINE LEFT

$

$

Not available

24

75142-12

BRACE, ENGINE SHIELD

$

$

Not available

25

75143-12

BASE, HOOD LOCK

$

$

Not available

26

Bear Cat 75781-12

SHIELD, HEAT

$76.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
