CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Access Cover (VIN: 5VJAA0011FW004859 AND BELOW) Parts Diagram

6" Chipper, 1.1 L Diesel

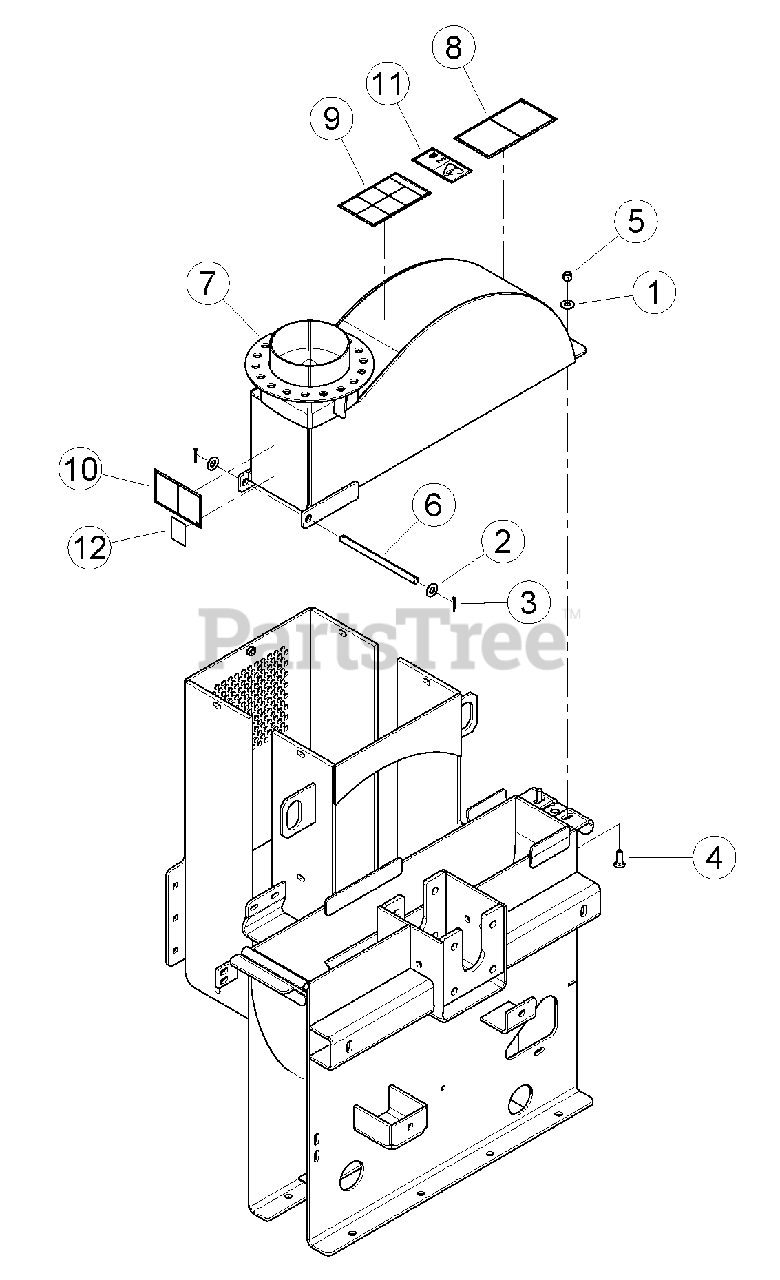

Access Cover (VIN: 5VJAA0011FW004859 AND BELOW) Parts Diagram

  • Title
1

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

2

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

3

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

4

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

5

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 71329

SHAFT CHIPPER TOP PIVOT

$48.99

$

Usually ships in 3-7 days

0

7

Bear Cat 77716-00

ASSEMBLY, CHIPPER HOUSING TOP

Note: (INCLUDES ITEMS 8-12)

$1253.99

$

Usually ships in 3-7 days

0

8

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

10

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

12

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0
