CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Switch Box CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

6" Chipper, 1.1 L Diesel

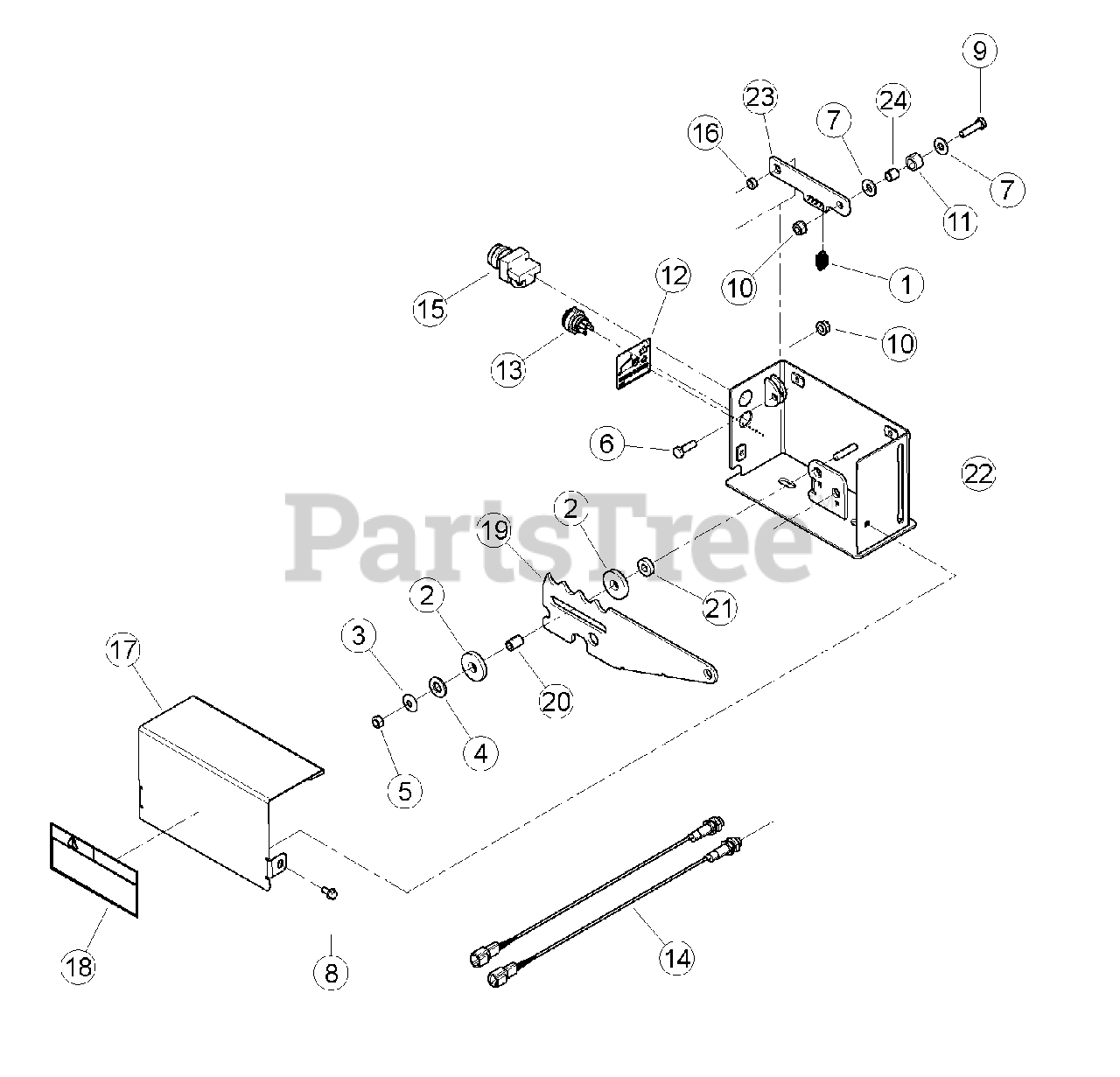

Switch Box CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

  • Title

1

Bear Cat 12620

SPRING, CONTROL BAR

$25.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHMW SPACER .515ID-1.50OD

$10.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12622

WASHER, SPRING

$19.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

5

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

6

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

8

15344

BOLT, 1/4 X 1/2 SERR FLANGE GR5 ZP

$

$

Not available

9

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX GR5 NC ZP

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

Bear Cat 18548-00

ROLLER, NYLON .75 OD X .502 ID X .440

$3.99

$

Usually ships in 3-7 days

0

12

Bear Cat 18555-00

DECAL, RESET/OVERRIDE

$39.99

$

Usually ships in 3-7 days

0

13

Bear Cat 30334-00

LIGHT, LED TRI-COLOR

$68.99

$

Usually ships in 3-7 days

0

14

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY (REPLACEMENT PART)

$199.99

$

In Stock, only 2 left!

0

15

Bear Cat 32376-00

SWITCH, MOMENTARY IP65 NORMALLY OFF

$50.99

$

Usually ships in 3-7 days

0

16

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

17

Bear Cat 70006-00

ASSEMBLY, CONTROL COVER W/ DECAL

Note: (INCLUDES ITEM 18)

$99.99

$

Usually ships in 3-7 days

0

18

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$38.99

$

Usually ships in 3-7 days

0

19

70784-12

BAR, SWITCH CONTROL

$

$

Not available

20

70829-00

SPACER, .50 X .728

$

$

Not available

21

70841-00

SPACER, .375 X .25

$

$

Not available

22

70844-12

WELDMENT, SWITCH BOX

$

$

Not available

23

Bear Cat 75184-12

LINK, DETENT

$29.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75185-00

SPACER, 1/2 OD X .35 ID X .47

$11.99

$

Usually ships in 3-7 days

0
