CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Frame (B) Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

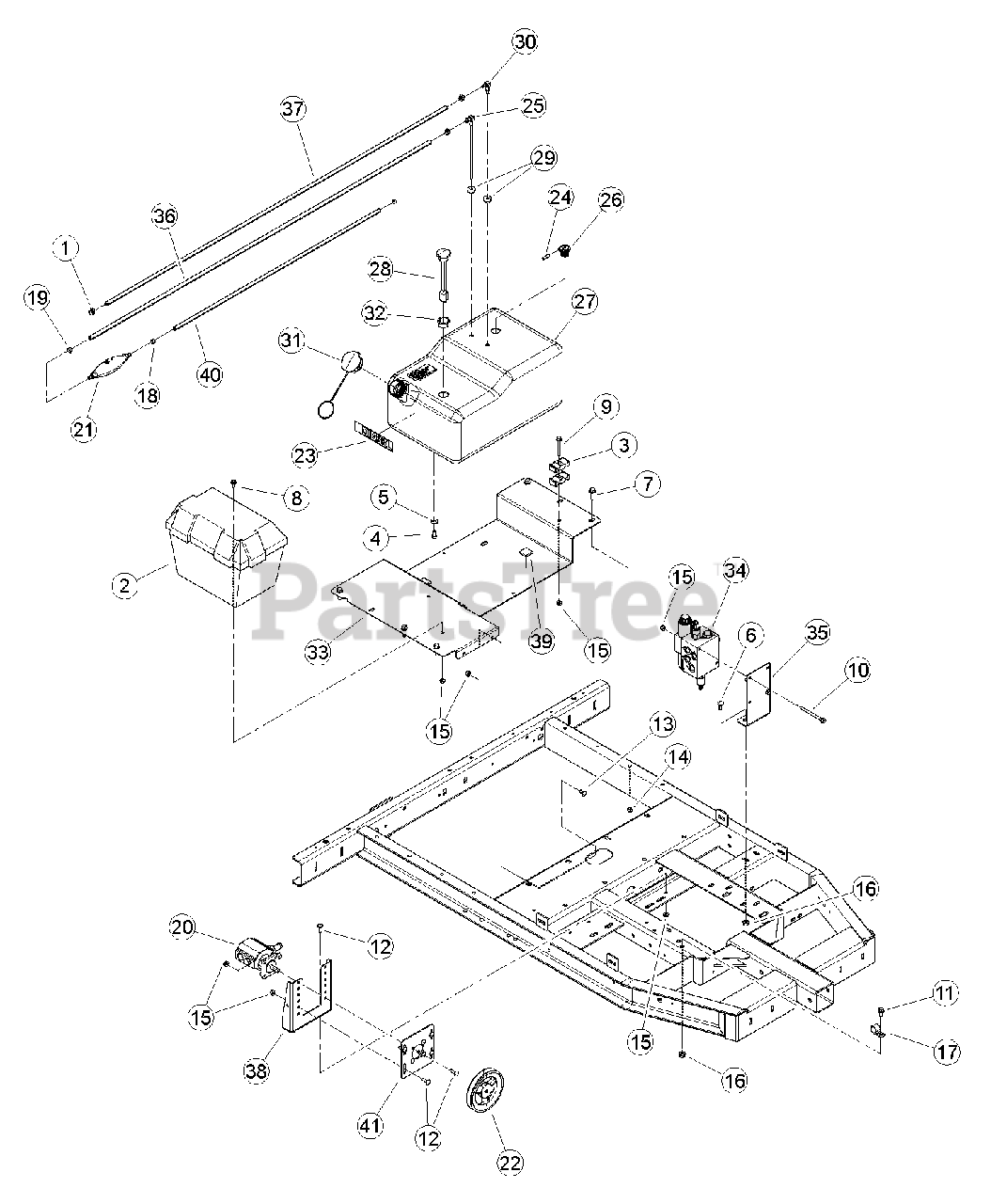

Frame (B) Parts Diagram

  • Title

1

0123-0429-00

CLAMP, HOSE 5/16 X 5/8 DIA MAX

$

$

Not available

2

Bear Cat 12271

BOX, PLASTIC BATTERY

$87.99

$

Usually ships in 3-7 days

0

3

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

4

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.99

$

Usually ships in 3-7 days

0

9

15138-00

BOLT, 5/16 X 2-1/2 FLANGE NC

$

$

Not available

10

15150-00

BOLT, 5/16 X 4 SERRATED FLANGE NC

$

$

Not available

11

15229-00

BOLT, 3/8 X 3/4 FLANGE NC

$

$

Not available

12

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

13

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

19

Bear Cat 16806

CLAMP, 9/16 SPRING

$

$

Not available

20

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$670.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31696-00

PUMP, HAND PRIMER

$33.99

$

Usually ships in 3-7 days

0

22

32921-00

PULLEY, 5.6 - 1/2" BORE FHP B

$

$

Not available

Bear Cat 71455-00

ASSEMBLY, FUEL TANK DIESEL

Note: (INCLUDES ITEMS 23-32)

$424.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16778

DECAL, DIESEL FUEL

$14.99

$

Usually ships in 3-7 days

0

24

30342-00

CAP, EPDM BLACK .223 ID X 1.0 LG X .06 WALL

$

$

Not available

25

Bear Cat 31449-00

FITTING, TANK FUEL PICK-UP TUBE 5/16"

$22.99

$

Usually ships in 3-7 days

0

26

Bear Cat 32542-00

VALVE, ROLL OVER

$190.99

$

In Stock, only 1 left!

0

27

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

28

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$60.99

$

Usually ships in 3-7 days

0

29

Bear Cat 36689-00

GROMMET, TANK FITTING

$3.49

$

Usually ships in 3-7 days

0

30

Bear Cat 36691-00

FITTING, TANK VENT

$17.99

$

Usually ships in 3-7 days

0

31

Bear Cat 36693-00

CAP, FUEL TANK VENTED

$35.99

$

Usually ships in 3-7 days

0

32

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$8.49

$

Usually ships in 3-7 days

0

33

71616-12

BASE, BATTERY BOX/FUEL TANK

$

$

Not available

34

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE W/ PS

$2249.99

$

Usually ships in 3-7 days

0

35

75129-12

PLATE, VALVE MOUNTING

$

$

Not available

36

Bear Cat 75380-00

HOSE, 63" FUEL LINE

$91.99

$

Usually ships in 3-7 days

0

37

Bear Cat 75381-00

HOSE, 63" RETURN LINE
(Superseded to 76908-00)

$96.99

$

Usually ships in 3-7 days

0

38

Bear Cat 75965-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available

39

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$24.99

$

Usually ships in 3-7 days

0

40

Bear Cat 76725-00

HOSE, 38" FUEL

$65.99

$

Usually ships in 3-7 days

0

41

Bear Cat 76910-12

PLATE, HYDRAULIC PUMP

$

$

Not available
